ActronAir CRS23AT | EVA23AS-V 22.35kW Aires Vertical Indoor Split Ducted Air Conditioner System | 3 Phase
ActronAir CRS23AT / EVA23AS-V 22.35kW Aires Vertical Indoor Split Ducted Air Conditioner System | 3 Phase
Includes Vertical Indoor EVA20AS-V 8 Zone Integrated & 20m CAT5E Cable – Yellow | Outdoor CRS20AT
Optional Controllers – NEO TOUCH Master Wall Controller (Black/White) / 7 day wall controller (White/Grey)
Optional Zone Barrels
-
- ZB-08-200 – Zone Barrel 8 INCH – 200MM (Includes 7m CAT5E zone cable)
- ZB-10-250 – Zone Barrel 10 INCH – 250MM (Includes 7m CAT5E zone cable)
- ZB-12-300 – Zone Barrel 12 INCH – 300MM (Includes 7m CAT5E zone cable)
- ZB-14-350 – Zone Barrel 14 INCH – 350MM (Includes 7m CAT5E zone cable)
- ZB-16-400 – Zone Barrel 16 INCH – 400MM (Includes 7m CAT5E zone cable)
Optional Insulated Copper Pair Coil
5 Years Manufacturer’s Warranty
- Specification
- Description
- Additional information
- Reviews
|
Unit Model Number
|

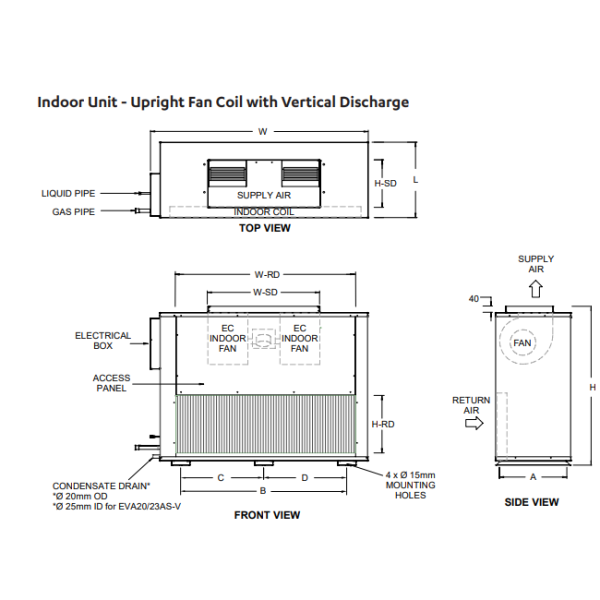

Overall Nominal Dimension (OA) | Mounting Distance Base Foot (Centre to Centre) |
Supply Duct | Return Duct |
Gas Pipe
(Swaged) |
Liquid Pipe (Swaged)
|
||||||||||||||||||||||
| H | W | L | A | B | C | D | H-SD x W-SD | H-RD x W-RD | ||||||||||||||||||||
| EVA23AS-V | 1066 | 1534 | 483 | 430 | 1534 | 528 | 528 | 380 x 717 | 405 x 1298 | Ø 19.05mm (3/4″) | Ø 9.52mm (3/8″) | |||||||||||||||||
| Model Number |
Weight (kg) | Height Clearance |
||||||
| EVA23AS-V | 81 | DUCT WORK | ||||||
Description
22.35 kW Cooling
23.0 kW Heating
Vertical Indoor | Quiet Mode
Additional information
| Weight | 213 kg |
|---|---|
| Select Controller | No Controller, LR7-1W 7 day wall controller (WHITE) – 8 Zone, LR7-1G 7 day wall controller (GREY) – 8 Zone, NTB-1000 NEO TOUCH Master Wall Controller (BLACK), NTW-1000 NEO TOUCH Master Wall Controller (WHITE) |
