ActronAir Advance CRV25BT | EAA25BS | EFV25BS 25.0kW Two Piece Indoor Split Ducted System 3 Phase
25.0 kW Cooling | 26.0 kW Heating
ActronAir Advance CRV25BT / EAA25BS / EFV25BS 25.0kW Two Piece Indoor Split Ducted Air Conditioner System | 3 Phase
Includes Indoor EAA25BS / EFV25BS | Includes Outdoor CRV25BT
Optional Controllers: NEO TOUCH Master Wall Controller (Black/White) / 7 day wall controller (White/Grey)
Optional: Horizontal Discharge Outdoor Unit
Optional Zone Barrels:
- ZB-10-250 – Zone Barrel 10 INCH – 250MM (Includes 7m CAT5E zone cable)
- ZB-12-300 – Zone Barrel 12 INCH – 300MM (Includes 7m CAT5E zone cable)
- ZB-14-350 – Zone Barrel 14 INCH – 350MM (Includes 7m CAT5E zone cable)
- ZB-16-400 – Zone Barrel 16 INCH – 400MM (Includes 7m CAT5E zone cable)
Supported Insulated Copper Pair Coil
- 22.22 mm (7/8″) | 12.7 mm (1/2″)
5 Years Manufacturer’s Warranty
- Specification
- Features
- Brochure
- Description
- Faqs
- Additional information
- Reviews
|

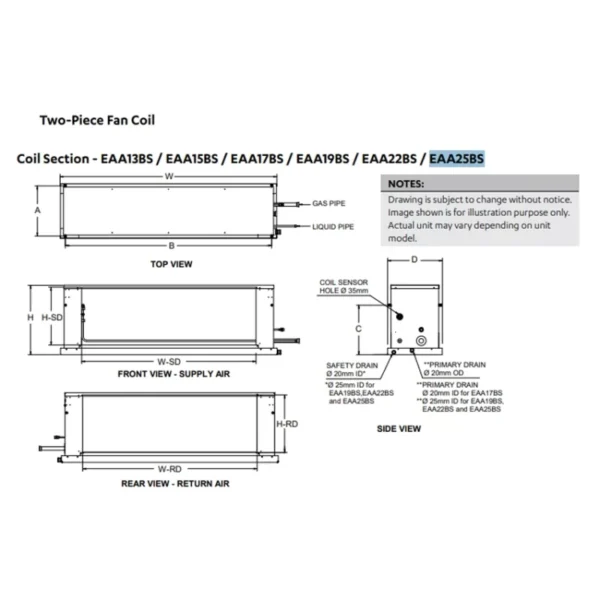

Unit Model Number
|
Overall Nominal Dimension (OA) | Mounting Distance (Centre to Centre /Base Foot ) |
Supply Duct | Return Duct |
Gas Pipe
(Swaged) |
Liquid Pipe (Swaged)
|
|||||||||||||||||||
| H | W | D | A | B | C | H-SD x W-SD | H-RD x W-RD | ||||||||||||||||||
| EAA25BS | 487 | 1510 | 343 | 310 | 1445 | 361 | 411 x 1194 | 411 x 1194 | Ø 22.22mm (7/8″) | Ø 12.7mm (1/2″) | |||||||||||||||
|

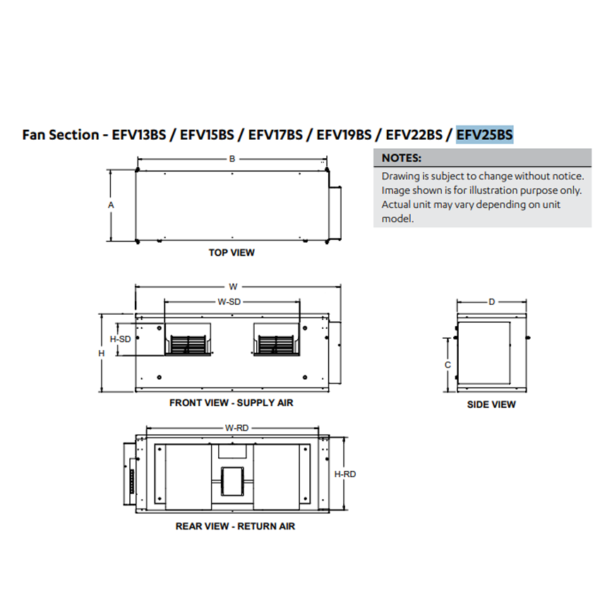

Unit Model Number
|
Overall Nominal Dimension (OA) | Mounting Distance Base Foot (Centre to Centre) |
Supply Duct | Return Duct | ||||||||||
| H | W | D | A | B | C | H-SD x W-SD | H-RD x W-RD | |||||||
| EFV25BS | 483 | 1369 | 412 | 422 | 1285 | 358 | 305 x 734 | 453 x 1195 | ||||||
Adaptive Dry Mode
Adapts Dry Mode based on the current humidity level, ensuring the system delivers just the right amount of moisture removal. It helps maintain comfort even as humidity levels change.
Variable Fan Technology
Uses Variable Fan Technology to intelligently control indoor fan speed, delivering the ideal airflow required while using only the energy needed.
R32 Refrigerant
Uses environmentally friendly R32 refrigerant with lower Global Warming Potential than many alternative refrigerants, providing efficient performance while reducing environmental impact. (7.1kW available in R32 – 10.0kW)
Smarter Startup
Before the indoor fan begins operating, the system pre-sets the desired temperature to minimise cold drafts and deliver greater comfort from startup.
Built Aussie Tough
Designed and tested to withstand Australia’s demanding climate. Features corrosion-resistant construction, durable cabinet design, and protective coatings for long-lasting reliability and performance.
Quiet Operation
Advanced technologies, including variable fan speed control and compressor modulation, minimise indoor and outdoor noise while maintaining optimal heating and cooling performance.
Individual Zoning
Allows multiple zones to be independently controlled, providing personalised comfort and improved energy efficiency by heating or cooling only the areas in use.
Description
25.0 kW Cooling
26.0 kW Heating
Two Piece Indoor Unit | Integrated zone card | Quiet Mode
Q1: What are the main features of the Two Piece Indoor Split Ducted Systems – Three Phase ADVANCE Series?
The Two Piece Indoor Split Ducted Systems – Three Phase ADVANCE Series features a compact design, Flexible Zoning, Unity IQ Logic, Quiet Mode, Adaptive Dry Mode, Turbo Mode, a quiet and efficient indoor fan, inverter technology, and R32 refrigerant. It is engineered and tested for Australian conditions to deliver reliable year-round heating and cooling performance.
Q2: Is the Two Piece Indoor Split Ducted Systems – Three Phase ADVANCE Series energy efficient?
Yes. The Two Piece Indoor Split Ducted Systems – Three Phase ADVANCE Series uses advanced inverter technology to automatically adjust its capacity based on your heating and cooling requirements, helping reduce running costs while maintaining consistent indoor comfort. It also features a high Seasonal Performance Factor and environmentally friendlier R32 refrigerant for improved energy efficiency.
Q3: Does the Two Piece Indoor Split Ducted Systems – Three Phase ADVANCE Series offer advanced comfort technology?
Yes. The Two Piece Indoor Split Ducted Systems – Three Phase ADVANCE Series includes Unity IQ Logic, Flexible Zoning, Adaptive Dry Mode, and Turbo Mode to deliver intelligent climate control, balanced airflow, rapid temperature adjustment, and enhanced comfort throughout your home or commercial property.
Q4: Is the Two Piece Indoor Split Ducted Systems – Three Phase ADVANCE Series suitable for Australia’s climate?
Yes. The Two Piece Indoor Split Ducted Systems – Three Phase ADVANCE Series is engineered and tested specifically for Australian conditions, operating reliably in temperatures from -10°C to 50°C. Its Quiet Mode, efficient indoor fan, and advanced airflow management help maintain comfortable indoor conditions throughout Australia’s changing seasons.
Q5: Not sure what size air conditioner you need?
Use our free Air Conditioning Calculator & Size Guide as a starting point to estimate the right capacity for your room or home. Please note this calculator is a guide only — actual requirements may vary depending on your ceiling height, insulation, window size, orientation, and local climate conditions.
For a more accurate sizing recommendation tailored to your specific home or office, we recommend booking a quote with our team. Our air conditioning experts will assess your space and help you choose the perfect Two Piece Indoor Split Ducted Systems – Three Phase ADVANCE Series unit with confidence — ensuring maximum comfort, efficiency, and value for money.
For more information about the ActronAir Two Piece Indoor Split Ducted Systems – Three Phase ADVANCE Series, and available models, click here.
Additional information
| Weight | 282 kg |
|---|---|
| Select Controller | No Controller, LR7-1W 7 day wall controller (WHITE) – 8 Zone, LR7-1G 7 day wall controller (GREY) – 8 Zone, NTB-1000 NEO TOUCH Master Wall Controller (BLACK), NTW-1000 NEO TOUCH Master Wall Controller (WHITE) |
