DAIKIN FDYUAN160A-Y 15.5kW Inverter Underfloor Ducted System | Three Phase
15.5 kW Cooling
18.0 kW Heating
DAIKIN FDYUAN160A-Y 15.5kW Inverter Underfloor Ducted System | Three Phase
Includes:
Indoor Unit : FDYUAN160AV1
Outdoor Unit : RZA160CY1
Available Controller Options:
1. AirHub – Linear – Up to 4 Zones (24v) – Controller: BRCMTZCB9 / Zone Box: BRC24TLZ4B9
2. AirHub – Linear – Up to 8 Zones (24v) – Controller: BRCMTZCB9 / Zone Box: BRC24TLZ8B9
3. AirHub – On/Off – Up to 4 Zones (24v) – Controller: BRCMTZCB9 / Zone Box: BRC24TZ4B9
4. AirHub – On/Off – Up to 8 Zones (24v) – Controller: BRCMTZCB9 / Zone Box: BRC24TZ8B9
5. Zone Controller – Up to 4 Zones (230-240v) – Controller: Included in Zone Box / Zone Box: BRC230Z4B9
6. Zone Controller – Up to 8 Zones (230-240v) – Controller: Included in Zone Box / Zone Box: BRC230Z8B9
7. Zone Controller – Up to 4 Zones (24v) – Controller: Included in Zone Box / Zone Box: BRC24Z4B9
8. Zone Controller – Up to 8 Zones (24v) – Controller: Included in Zone Box / Zone Box: BRC24Z8B9
DAIKIN FBA50BA-VC2V 5.0kW Premium Inverter Slim-Line Ducted System 1 Phase
5.0kW Cooling
6.0kW Heating
DAIKIN FBA50BA-VC2V 5.0kW Premium Inverter Slim-Line (R32) 1 Phase
Indoor : FBA50BAVMA
Outdoor : RZAV50C2V1
Available Controllers:
Included:
BRC1E63 – Standard Nav Ease Controller
Optional:
BRC230Z4B9 – Up to 4 Zones (230-240v)
BRC230Z8B9 – Up to 8 Zones (230-240v)
BRC24Z4B9 – Up to 4 Zones (24v)
BRC24Z8B9 – Up to 8 Zones (24v)
DAIKIN FBA60BA-VC2V 6.0kW Premium Inverter Slim-Line Ducted System 1 Phase
6.0 kW Cooling
7.1 kW Heating
DAIKIN FBA60BA-VC2V 6.0kW Premium Inverter Slim-Line (R32) 1 Phase
(Old System Number: FBA60BA-VCV)
Indoor : FBA60BAVMA
Outdoor : RZAV60C2V1 (Old System Number: RZAV60CV1)
Available Controllers:
Included:
BRC1E63 – Standard Nav Ease Controller
Optional:
BRC230Z4B9 – Up to 4 Zones (230-240v)
BRC230Z8B9 – Up to 8 Zones (230-240v)
BRC24Z4B9 – Up to 4 Zones (24v)
BRC24Z8B9 – Up to 8 Zones (24v)

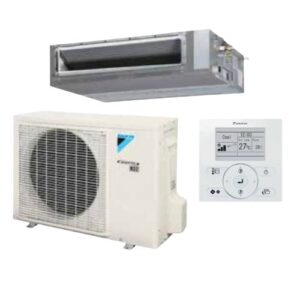

DAIKIN FBA71B-VC2V 7.1kW Premium Inverter Slim-Line Ducted System 1 Phase
7.1kW Cooling
8.0kW Heating
DAIKIN FBA71B-VC2V Premium Inverter Slim-Line (R32) 1 Phase
(Old System Number: FBA71B-VCV)
Indoor : FBA71BVMA
Outdoor : RZAV71C2V1 (Old System Number: RZAV71CV1)
Available Controllers:
Included:
BRC1E63 – Standard Nav Ease Controller
Optional:
BRC230Z4B9 – Up to 4 Zones (230-240v)
BRC230Z8B9 – Up to 8 Zones (230-240v)
BRC24Z4B9 – Up to 4 Zones (24v)
BRC24Z8B9 – Up to 8 Zones (24v)

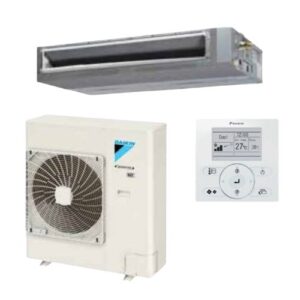

DAIKIN FBA85B-VC2V 8.5kW Premium Inverter Slim-Line Ducted System 1 Phase
8.5 kW Cooling
10.0 kW Heating
DAIKIN FBA85B-VC2V 8.5kW Premium Inverter Slim-Line Ducted System 1 Phase
(Old System Number: FBA85B-VCV)
Indoor : FBA85BVMA
Outdoor : RZAV85C2V1 (Old System Number: RZAV85CV1)
Available Controllers:
Included:
BRC1E63 – Standard Nav Ease Controller
Optional:
BRC230Z4B9 – Up to 4 Zones (230-240v)
BRC230Z8B9 – Up to 8 Zones (230-240v)
BRC24Z4B9 – Up to 4 Zones (24v)
BRC24Z8B9 – Up to 8 Zones (24v)
DAIKIN FBA100B-VF2V 10.0kW Premium Inverter Slim-Line Ducted System 1 Phase
10.0 kW Cooling
11.2 kW Heating
DAIKIN FBA100B-VC2V 10.0kW Premium Inverter Slim-Line Ducted System 1 Phase
(Old System Number: FBA100B-VCV)
Indoor : FBA100BVMA
Outdoor : RZAV100F2V1 (Old System Number: RZAV100FV1)
Available Controllers:
Included:
BRC1E63 – Standard Nav Ease Controller
Optional:
BRC230Z4B9 – Up to 4 Zones (230-240v)
BRC230Z8B9 – Up to 8 Zones (230-240v)
BRC24Z4B9 – Up to 4 Zones (24v)
BRC24Z8B9 – Up to 8 Zones (24v)
DAIKIN FBA125B-VF2V 12.5kW Premium Inverter Slim-Line Ducted System 1 Phase
12.5 kW Cooling
14.0 kW Heating
DAIKIN FBA125B-VF2V 12.5kW Premium Inverter Slim-Line Ducted System 1 Phase
(Old System Number: FBA125B-VFV)
Indoor : FBA125BVMA
Outdoor: RZAV125F2V1 (Old System Number: RZAV125FV1)
Available Controllers:
Included:
BRC1E63 – Standard Nav Ease Controller
Optional:
BRC230Z4B9 – Up to 4 Zones (230-240v)
BRC230Z8B9 – Up to 8 Zones (230-240v)
BRC24Z4B9 – Up to 4 Zones (24v)
BRC24Z8B9 – Up to 8 Zones (24v)
DAIKIN FBA140B-VF2V 14.0kW Premium Inverter Slim-Line Ducted System 1 Phase
14.0 kW Cooling
16.0 kW Heating
DAIKIN FBA140B-VF2V 14.0kW Premium Inverter Slim-Line Ducted System 1 Phase
Indoor : FBA140BVMA
Outdoor : RZAV140F2V1 | single fan outdoor
Available Controllers:
Included:
BRC1E63 – Standard Nav Ease Controller
Optional:
BRC230Z4B9 – Up to 4 Zones (230-240v)
BRC230Z8B9 – Up to 8 Zones (230-240v)
BRC24Z4B9 – Up to 4 Zones (24v)
BRC24Z8B9 – Up to 8 Zones (24v)
DAIKIN FBA71B-VC2Y 7.1Kw Premium Inverter Slim-Line Ducted System | 3 Phase
7.1 kW Cooling
8.0 kW Heating
DAIKIN FBA71B-VC2Y 7.1Kw Premium Inverter Slim-Line Ducted System | 3 Phase
(Old System Number: FBA71B-VCY)
Indoor Unit : FBA71BVMA
Outdoor Unit : RZAV71C2Y1 (Old System Number: RZAV71CY1)
Available Controllers:
Included:
BRC1E63 – Standard Nav Ease Controller
Optional:
BRC230Z4B9 – Up to 4 Zones (230-240v)
BRC230Z8B9 – Up to 8 Zones (230-240v)
BRC24Z4B9 – Up to 4 Zones (24v)
BRC24Z8B9 – Up to 8 Zones (24v)
DAIKIN FBA85B-VC2Y 8.5kW Premium Inverter Slim-Line Ducted System | 3 Phase
8.5 kW Cooling
10.0 kW Heating
DAIKIN FBA85B-VC2Y 8.5kW Premium Inverter Slim-Line Ducted System | 3 Phase
(Old System Number: FBA85B-VCY)
Indoor Unit : FBA85BVMA
Outdoor Unit : RZAV85C2Y1 (Old System Number: RZAV85CY1)
Available Controllers:
Included:
BRC1E63 – Standard Nav Ease Controller
Optional:
BRC230Z4B9 – Up to 4 Zones (230-240v)
BRC230Z8B9 – Up to 8 Zones (230-240v)
BRC24Z4B9 – Up to 4 Zones (24v)
BRC24Z8B9 – Up to 8 Zones (24v)
DAIKIN FBA100B-VF2Y 10kW Premium Inverter Slim-Line Ducted System | 3 Phase
10.0 kW Cooling
11.2 kW Heating
DAIKIN FBA100B-VF2Y 10kW Premium Inverter Slim-Line Ducted System | 3 Phase
(Old System Number: FBA100B-VFY)
Indoor Unit : FBA100BVMA
Outdoor Unit : RZAV100C2Y1 (Old System Number: RZAV100CY1)
Available Controllers:
Included:
BRC1E63 – Standard Nav Ease Controller
Optional:
BRC230Z4B9 – Up to 4 Zones (230-240v)
BRC230Z8B9 – Up to 8 Zones (230-240v)
BRC24Z4B9 – Up to 4 Zones (24v)
BRC24Z8B9 – Up to 8 Zones (24v)
DAIKIN FBA125B-VF2Y 12.5kW Premium Inverter Slim-Line Ducted System | 3 Phase
12.5 kW Cooling
14.0 kW Heating
DAIKIN FBA125B-VF2Y 12.5kW Premium Inverter Slim-Line Ducted System | 3 Phase
(Old System Number: FBA125B-VFY)
Indoor Unit : FBA125BVMA
Outdoor Unit : RZAV125C2Y1 (Old System Number: RZAV125CY1)
Available Controllers:
Included:
BRC1E63 – Standard Nav Ease Controller
Optional:
BRC230Z4B9 – Up to 4 Zones (230-240v)
BRC230Z8B9 – Up to 8 Zones (230-240v)
BRC24Z4B9 – Up to 4 Zones (24v)
BRC24Z8B9 – Up to 8 Zones (24v)
DAIKIN FBA140B-VF2Y 14.0kW Premium Inverter Slim-Line Ducted System | 3 Phase
14.0 kW Cooling
16.0 kW Heating
DAIKIN FBA140B-VF2Y 14.0kW Premium Inverter Slim-Line Ducted System | 3 Phase
(Old System Number: FBA140B-VFY)
Indoor Unit : FBA140BVMA
Outdoor Unit : RZAV140C2Y1 (Old System Number: RZAV140CY1)
Available Controllers:
Included:
BRC1E63 – Standard Nav Ease Controller
Optional:
BRC230Z4B9 – Up to 4 Zones (230-240v)
BRC230Z8B9 – Up to 8 Zones (230-240v)
BRC24Z4B9 – Up to 4 Zones (24v)
BRC24Z8B9 – Up to 8 Zones (24v)
DAIKIN FDYBA25A-G2V 2.5kW Inverter Bulkhead System 1 Phase
2.5 kW Cooling
3.5 kW Heating
DAIKIN FDYBA25A-GV 2.5kW Inverter Bulkhead System 1 Phase
(Old System Number: FDYBA25A-G2V)
Includes:
Indoor Unit : FDYBA25AV1
Outdoor Unit : RZAC25GV1 (Old System Number: RZAC25G2V1)
Controller : BRC4C65
DC condensate pump is equipped as standard with a 750mm lift.
DAIKIN FDYBA35A-G2V 3.5kW Inverter Bulkhead System 1 Phase
3.5 kW Cooling
4.0 kW Heating
DAIKIN FDYBA35A-G2V 3.5kW Inverter Bulkhead System 1 Phase
(Old System Number: FDYBA35A-GV)
Includes:
Indoor Unit : FDYBA35AV1
Outdoor Unit : RZAC35G2V1 (Old System Number: RZAC35GV1)
Controller : BRC4C65
DC condensate pump is equipped as standard with a 750mm lift.
DAIKIN FDYBA50A-G2V 5.0kW Inverter Bulkhead AC System 1 Phase
5.0 kW Cooling
6.0 kW Heating
DAIKIN FDYBA50A-GV 5kW Inverter Bulkhead System 1 Phase
(Old System Number: FDYBA50A-G2V)
Includes
Indoor Unit : FDYBA50AV1
Outdoor Unit : RZAC50GV1 (Old System Number: RZAC50G2V1)
Controller : BRC4C65
DC condensate pump is equipped as standard with a 750mm lift.
DAIKIN FDYBA60A-G2V 6.0kW Inverter Bulkhead System 1 Phase
6.0 kW Cooling
7.0 kW Heating
DAIKIN FDYBA60A-G2V 6kW Inverter Bulkhead System 1 Phase
(Old System Number: FDYBA60A-GV)
Includes – Indoor Unit FDYBA60AV1 | Outdoor Unit RZAC60G2V1 | Controller – BRC4C65
(Old System Number: RZAC60GV1)
DC condensate pump is equipped as standard with a 750mm lift.
DAIKIN FDYBA71A-G2V 7.1kW Inverter Bulkhead System 1 Phase
7.1 kW Cooling
8.0 kW Heating
DAIKIN FDYBA71A-G2V 7.1kW Inverter Bulkhead System 1 Phase
(Old System Number: FDYBA71A-GV)
Includes:
Indoor Unit : FDYBA71AV1
Outdoor Unit : RZAC71G2V1 (Old System Number: RZAC71GV1)
Controller : BRC4C65
DC condensate pump is equipped as standard with a 750mm lift.
Daikin 10HP VRV Outdoor Air AHU 25mm TDSP
An industry first, the VRV air handling unit has been designed and engineered by Daikin to create new opportunities for applying VRV into retail, offices, cinemas and commercial applications with large open spaces.
- Available in two types, Standard Series or Outdoor Air Series from 6HP to 60HP
- Daikin’s VRV AHU are paired with VRV IV Heat Pump outdoor units for superior EER & COP performance
- Harnesses all features of VRV IV Heat Pump including Variable Refrigerant Technology (VRT)*, Daikin’s Inverter Technology and connection to building management systems.
- ESP of up to 500Pa enables flexible ductwork design
- Ultimate installation flexibility
- Double skin with either 25mm or 50mm thick PU insulated panels with thermal break options.
- Long pipe runs of up to 165m**
- Custom configurations are also available to suit site constraints
Daikin 10HP VRV Outdoor Air AHU 50mm TDSP
An industry first, the VRV air handling unit has been designed and engineered by Daikin to create new opportunities for applying VRV into retail, offices, cinemas and commercial applications with large open spaces.
- Available in two types, Standard Series or Outdoor Air Series from 6HP to 60HP
- Daikin’s VRV AHU are paired with VRV IV Heat Pump outdoor units for superior EER & COP performance
- Harnesses all features of VRV IV Heat Pump including Variable Refrigerant Technology (VRT)*, Daikin’s Inverter Technology and connection to building management systems.
- ESP of up to 500Pa enables flexible ductwork design
- Ultimate installation flexibility
- Double skin with either 25mm or 50mm thick PU insulated panels with thermal break options.
- Long pipe runs of up to 165m**
- Custom configurations are also available to suit site constraints
