Indoor Unit | RAS-34E2KVG-A | |
Outdoor Unit | RAS-34E2AVG-A | |
Cooling Capacity – Rated | CO | 9 |
Cooling Capacity – Range | CO | 2.80 – 10.50 |
Power input [rated (min – max)] | CO | 2.70 (0.58 – 3.50) |
Operating current [rated (min – max)] | CO | 13.10 (3.55 – 16.55) |
AEER | CO | 3.39 |
Heating Capacity – Rated | RC | 10 |
Heating Capacity – Range | RC | 2.60 – 11.50 |
Power input [rated (min – max)] | RC | 2.80 (0.45 – 3.50) |
Operating current [rated (min – max)] | RC | 13.45 (2.75 – 16.45) |
ACOP | RC | 3.57 |
Indoor Unit | ||
Airflow Volume (High/Mid/Low) | CO | 1650/1280/950 |
Mositure removal | 4.6 | |
Dimension (WxLxH) | 350 x 1200 x 280 | |
Net Weight | 19 | |
Sound Power at Cooling Operation (high) | CO | 64 |
Outdoor Unit | ||
imension (WxLxH) | 320 x 900 x 890 | |
Net Weight | 66 | |
Cooling Operating range (Outside) | CO | -10 ~ 46 |
Heating Operating range | RC | -15 ~ 24 |
Sound Power at Cooling Operation (high) | CO | 69 |
Pipe Size | ||
Liquid Side | 9.52 | |
Gas Side | 15.9 | |
Maximum Piping Length | 40 | |
Maximum Piping Height difference | 20 | |
Chargeless Length | 15 | |
Compressor type | Twin Rotary | |
Power Supply | 220-240V/1Ph/50Hz |

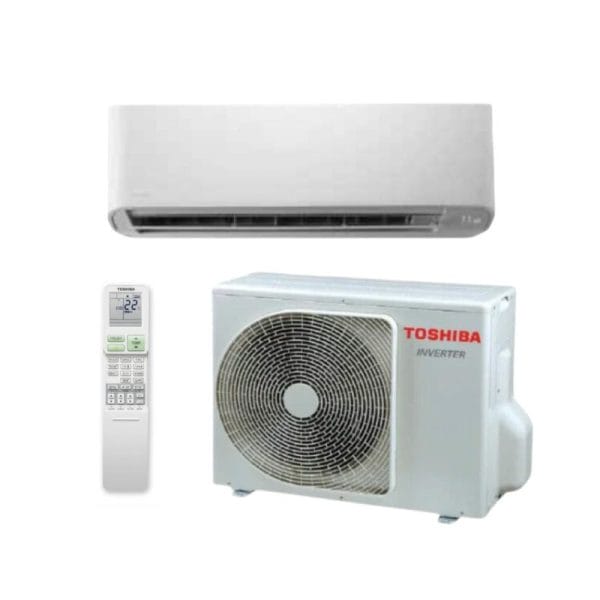

Toshiba Seiya Classic E2KVG34 9.0kW Inverter Split System Air Conditioner
9.0 kW Cooling | 10.0 kW Heating
Toshiba Seiya Classic E2KVG34 9.0kW Reverse Cycle Inverter Split System Air Conditioner
Indoor unit RAS-34E2KVG-A | Outdoor unit RAS-34E2AVG-A
With Wireless Remote | System E2KVG34
R32 | Healthy Fresh Air
7 years Manufacturer’s Warranty
- Frost Protection Mode
- Boost Mode
- WiFi Optional
- 3D Airflow [6.0kW ~ 10.0kW models]
- Eco Mode
- Magic Coil
- Outdoor Noise Reduction
- Weekly Timer
- Comfort Sleep Mode
- Wireless Controller Included
Description
9.0 kW Cooling
10.0 kW Heating
R32 | Healthy Fresh Air
