Indoor | RAS-30E2KVG-A | ||
Outdoor | RAS-30E2AVG-A | ||
Cooling Capacity – Rated | CO | kW | 8.00 |
Cooling Capacity – Range | CO | kW | 2.50 – 9.00 |
Power input [rated (min – max)] | CO | kW | 2.40 (0.55 – 3.00) |
Operating current [rated (min – max)] | CO | A | 11.70 (3.40 – 14.30) |
AEER | CO | 3.43 | |
Heating Capacity – Rated | RC | kW | 9.00 |
Heating Capacity – Range | RC | kW | 2.50 – 10.00 |
Power input [rated (min – max)] | RC | kW | 2.55 (0.48 – 3.20) |
Operating current [rated (min – max)] | RC | A | 12.35 (3.00 – 15.20) |
ACOP | RC | 3.53 | |
Indoor Unit | |||
Airflow Volume (High/Mid/Low) | CO | m³/hr | 1300/1000/680 |
Mositure removal | l/hr | 4.40 | |
Dimension (WxLxH) | mm | 320 x 1050 x 250 | |
Net Weight | kg | 16 | |
Sound Power at Cooling Operation (high) | CO | dB | 63 |
Outdoor Unit | |||
imension (WxLxH) | mm | 320 x 900 x 890 | |
Net Weight | kg | 66 | |
Cooling Operating range (Outside) | CO | ◦C | -10 ~ 46 |
Heating Operating range | RC | ◦C | -15 ~ 24 |
Sound Power at Cooling Operation (high) | CO | dB | 68 |
Pipe Size | |||
Liquid Side | (mm) | 9.52 | |
Gas Side | (mm) | 15.9 | |
Maximum Piping Length | (m) | 40 | |
Maximum Piping Height difference | (m) | 20 | |
Chargeless Length | (m) | 15 | |
Compressor type | Twin Rotary | ||
Power Supply | V/ph/Hz | 220-240V/1Ph/50Hz |

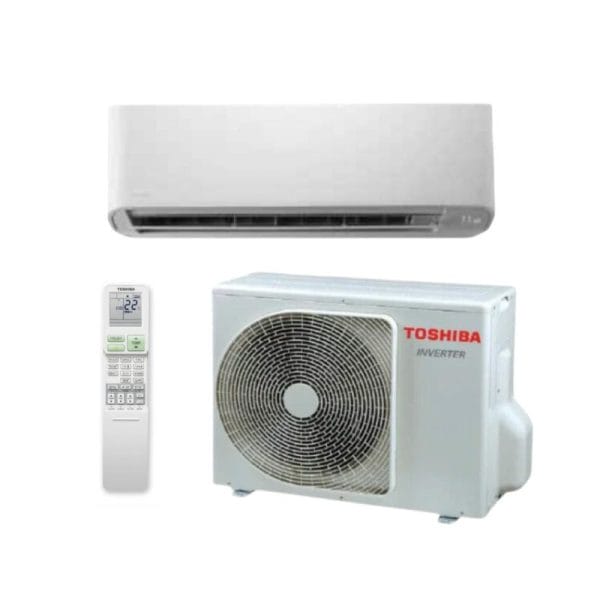

Toshiba Seiya Classic RAS-30E2KVG-A 8.0kW Inverter Split System Air Conditioner
8.0 kW Cooling | 9.0 kW Heating
Toshiba Seiya Classic RAS-30E2KVG-A 8.0kW Reverse Cycle Inverter Split System
Includes Indoor RAS-30E2KVG-A | Outdoor RAS-30E2AVG-A
Wireless Remote
Save: $185.00
Original price was: $2,750.00.$2,565.00Current price is: $2,565.00.
Save: $185.00
Description
8.0 kW Cooling
9.0 kW Heating
