7.1 kW Cooling | 8.0 kW Heating

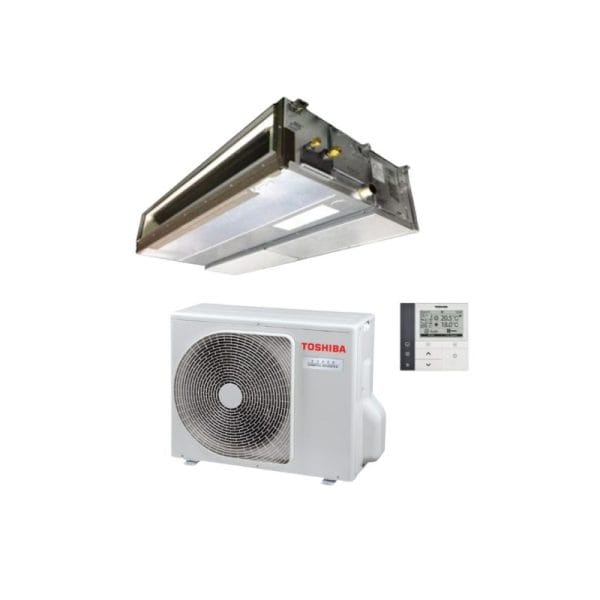

Toshiba GM801D 7.1kW Digital Inverter High Static Ducted Air Conditioner
Indoor RAV-GM801DTP-A | Outdoor RAV-GM801ATP-A | Quiet Operation
Built-in Drain Pump | Energy Saving | 1 Phase
Optional Wired controller | Optional Zone Controller
7 Years Manufacturer’s Warranty
| Indoor Model | RAV-GM801DTP-A | |
| Outdoor Model | RAV-GM801ATP-A | |
| Cooling Capacity (Range) | kW | 7.1 [1.5 – 8.0] |
| EER | 3.90 | |
| Heating Capacity (Range) | kW | 8.0 [1.5 – 9.0] |
| COP | 4.00 | |
| Maximum Operating Current | A | 17.00 |
| Air flow (H / M / L) | l/s | 583 / 430 / 361 |
| External Static | Pa | 50 – 150 |
| Dimensions – Indoor (H x W x D) | mm | 298 x 1000 x 750 |
| Dimensions – Outdoor (Hx W x D) | mm | 630 x 800 x 300 |
| Weight – Indoor / Outdoor | kg | 34 / 47 |
| Sound Pressure Level Indoor / Outdoor | dB(A) | 41 / 51 |
| Operating Range Cooling | °C db | -15 to 46 |
| Operating Range Heating | °C db | -15 to 24 |
| Pipe Sizes (Liquid / Gas) | mm | 9.52 / 15.88 |
| Maximum Pipe Length / Lift | m | 50 / 30 |
| Maximum Pre-charged Length | m | 20 |
| Power Supply | 1ph/220-240V/50Hz | |
