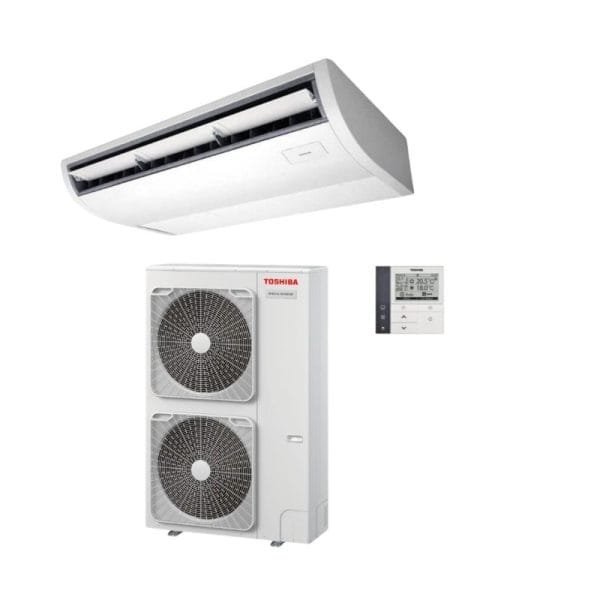

Toshiba GM1601AT8C 14.0kW Digital Inverter Under Ceiling Air Conditioner
14.0 kW Cooling | 16.0 kW Heating
Toshiba GM1601AT8C 14.0kW Digital Inverter Under Ceiling Air Conditioner
Indoor RAV-GM1601CTP-A | Outdoor RAV-GM1601AT8P-A | 3 Phase
Re-designed wider flap | Self Cleaning Function | Air Control
Wired controller RBC-AMSU51-ES
7 Years Manufacturer’s Warranty
| INDOOR UNIT | RAV-GM1601CTP-A | |
| OUTDOOR UNIT | RAV-GM1601AT8P-A | |
| Cooling Capacity Range | kW | 14.0 [3.0 – 16.0] |
| Heating Capacity Range | kW | 16.0 [3.0 – 18.0] |
| EER | 3.1 | |
| COP | 3.65 | |
| Maximum Operating Current | A | 16.1 |
| Dimensions – Indoor [H x W x D] |
mm
|
235 x 1586 x 690 |
| Dimensions – Outdoor [H x W x D] | 1340 x 900 x 320 | |
| Weight – Indoor / Outdoor | kg | 37 / 96 |
| Airflow [H / M / L] | l/s | 566 / 458 / 350 |
| Sound Pressure Level Indoor / Outdoor | dB(A) | 46 / 57 |
| Operating Range Cooling |
oC db
|
-15 to 46 |
| Operating Range Heating | -15 to 24 | |
| Pipe Sizes (Liquid / Gas) | mm | 9.52 / 15.88 |
| Maximum Pipe Length / Lift |
m
|
50 / 30 |
| Maximum Pre-charged Length | 30 | |
| Power Supply | Ph / V / Hz | 3ph / 380-415V / 50Hz |
- Precise Inverter Control
- DC Inverter Technology
- Long Life Filter
- Auto Changeover
- Weekly Scheduling (optional)
- Automatic Operation
- Hot Start Feature
- Filter Sign Indicator
Description
14.0 kW Cooling
16.0 kW Heating
Re-designed Wider Flap | 3 Phase
