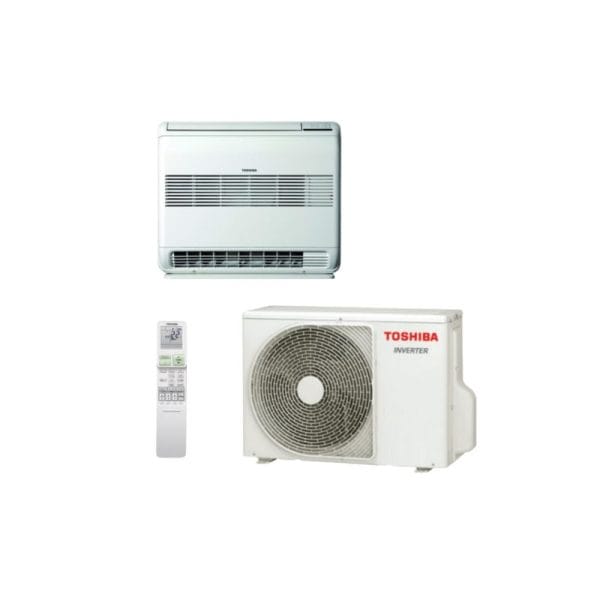

Toshiba U2FVG13 4.0kW Inverter Floor Console Air Conditioner
4.0 kW Cooling | 4.2 kW Heating
Toshiba Seiya Classic U2FVG13 4.0kW Floor Console System Air Conditioner
Indoor: RAS-13U2FVG-NZ | Outdoor: RAS-13U2AVSG-NZ | Wireless controller
System U2FVG13 | Ultra Pure Filter | Quiet operation
7 Year Manufacturer’s Warranty
| Indoor Model | RAS-13U2FVG-NZ | ||
| Outdoor Model | RAS-13U2AVSG-NZ | ||
| Power supply | Ph/Hz/V | 1/50/220-240 | |
| Capacity | Cooling | kW | 4.00 (1.00-4.50) |
| Power consumption | Cooling | kW | 1.10 (0.25 – 1.20) |
| EER/SEER (Cold zone) | Cooling | W/W | 3.64/5.50 |
| Capacity | Heating | kW | 4.20 (1.10 – 5.40) |
| Power consumption | Heating | kW | 1.15 (0.22 – 1.55) |
| COP/SCOP (Cold zone) | Heating | W/W | 3.65/3.50 |
| Indoor unit | |||
| Dimension – (HxWxD) | mm | 600x700x220 | |
| Net weight | kg | 16 | |
| Airflow volume – (High) | Cooling | m3/h | 534 |
| Heating | m3/h | 564 | |
| Sound pressure – (High-quite) | Cooling | dB(A) | 43/39/36/33/28/24 |
| Heating | dB(A) | 43/39/36/32/28/24 | |
| Sound power – (High) | Cooling | dB(A) | 56 |
| Heating | dB(A) | 56 | |
| Fan motor output | w | 41 | |
| Outdoor unit | |||
| Dimension – (HxWxD) | m | 550x780x290 | |
| Net weight | kg | 31 | |
| Refrigerant type | R32 | ||
| Sound pressure – High (Silentl/2) | Cooling | dB(A) | 48 (46/40) |
| Heating | dB(A) | 49 (48/42) | |
| Sound power – (High) | Cooling | dB(A) | 61 |
| Heating | dB(A) | 62 | |
| Usable outdoor temp | Cooling | •c | -0.326086957 |
| Heating | •c | -0.625 | |
| Compressor output | w | 715 | |
| Fan motor output | w | 43 | |
| Pipe size | |||
| Liquide side | mm/inch | 6.35(1/4″) | |
| Gas side | mm/inch | 9.52(3/8″) | |
| Coupler style | m | Flare | |
| Maximum pipe length | m | 20 | |
| Maximum pipe height | m | 10 | |
| Chargeless pipe length | m | 15 | |
| Additional refrigerant charge | g/m | 20 |
- Smart User Interface
- Floor Warning Mode
- Bi-Flow Air Outlet
- Ultra Pure Filter
- Self Cleaning Function
- Quiet Operation
Through our commitment to world-class efficiency, versatile scalability and leading quality, Toshiba Heat Pumps advances leading-edge technologies to find the most forward-thinking solutions possible for your world.
Consoles are an innovative and compact unit which can be installed on the floor or in low wall applications, ideal for under the window sills or in a low ceiling attic. With a distinctive floor heating function, Toshiba inverters can deliver powerful air flow at floor level for consistent and comfortable room heating.
Description
4.0 kW Cooling
4.2 kW Heating
Ultra Pure Filter | Quiet operation
