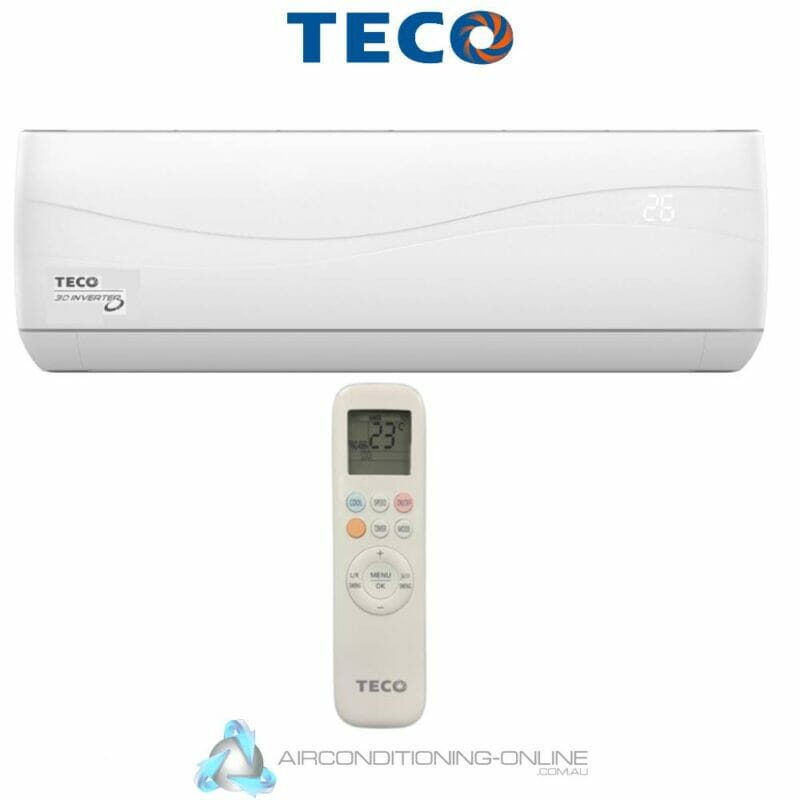

Teco Platinum 3D TWS-TSO50C3DVGA 5.2kW Split System Air Conditioner Cooling Only

SKU: TWS-TSO50C3DVGA

Teco Platinum 3D TWS-TSO50C3DVGA 5.2kW Split System Air Conditioner Cooling Only


Model Number Indoor TWS50C3DVGA
Outdoor TSO50C3DVGA
Power supply V – Ph – Hz 220~240 – 1 – 50
Power supply attachment Outdoor
Cooling Capacity (MEPS) kW 5.20 (1.30-5.70)
Running current A 5.6
Power input W 1.280
E.E.R. rating 4.06
Star rating (zone)
(Hot/Med/Cold)
4.5 / 4 / 4.5
Moisture removal L/Hr 1.6
Indoor fan speeds Turbo/
H/M/L/Silent
5
Indoor cooling air flow (max) L/ 291
Compressor type Rotary
Indoor sound power level dB(A) 61
Outdoor sound power level dB(A) 61
Refrigerant type R32
Connection pipe size
(Liquid / Gas)
mm (inch) 6.35 / 12.7 (1/4″ / 1/2″)
Max. pipe length m 20
Max. height difference m 10
Pipe connection method Flare
Indoor dimensions
(H x W x D)
mm 316 x 997 x 227
Indoor net weight Kg 13.0
Outdoor dimensions
(H x W x D)
mm 700 x 900 x 350
Outdoor net weight Kg 45.0
Ambient temperature
(Cooling / Heating)
°C 16~52 / -15~32

Description

5.2 kW Cooling
Built-in WI-FI | R32
PM 2.5 Filter | 3D Airflow
