Rinnai HSNRP70B 7.0kW Single Split System Air Conditioner WIFI | PB Series

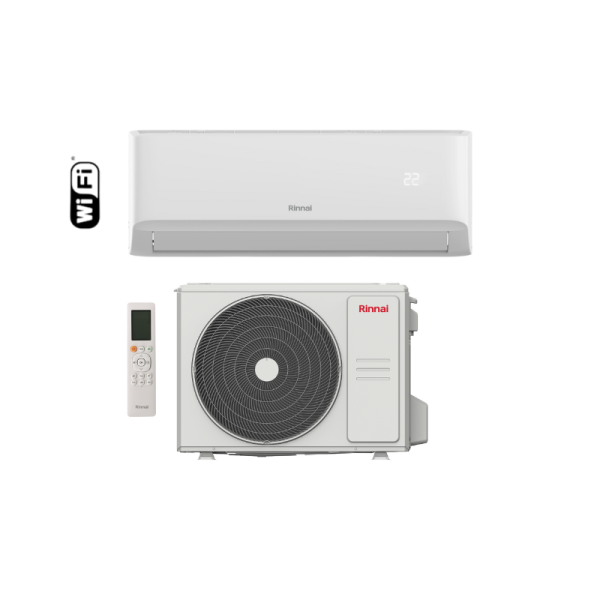

Rinnai PB Series HSNRP70B 7.0kW Split System Air Conditioner

SKU: HSNRP70B / HINRP70MB / HONRP70B

7.15kW Cooling | 7.80kW Heating
Rinnai PB Series HSNRP70B 7.0kW Split System Air Conditioner
Indoor HINRP70MB Outdoor HONRP70B | Wireless Controller
WIFI Control | Dehumidifying Mode | Gold Guard condenser coil | Quiet Operation
7 Years Manufacturer’s Warranty


$1,805.00

Or own it from $69.42 weekly for 6 months* zip money
Or pay in slices, no interest ever
> > > > >
Rinnai – System Model HSNRP70B
Nominal Capacity kW 8.00
Power Supply (To Outdoor Unit) V – Ph – Hz 220~240 – 1 – 50
Maximum Input Current A 17.50
Maximum Input Power W 4050
Recommended Circuit Breaker A 25
Connectivity – Wi-Fi Enabled
Demand Response Enabling Device – DRED Enabled
Cooling Rated Capacity kW 7.15
Capacity Range 3.20-8.0
Rated Input Power W 1920
Rated Input Current A 10.5
AEER W/W 3.53
TCSPF (Hot/Mixed/Cold) – 5.36/5.14/5.37
Star Rating (Hot/Average/Cold) – Star 3.5/3.5/3.5
Heating Rated Capacity kW 7.8
Capacity Range 2.20-8.8
Rated Input Power W 1990
Rated Input Current A 10.8
ACOP W/W 3.734
HSPF(Hot/Mixed/Cold) – 4.97/4.32/3.82
Star Rating (Hot/Average/Cold) – Star 3.0/2.5/2.0
Moisture Removal L/h 2.40
Suitable Area (up to 2.6m insulated ceiling) m2 32-47
Indoor Unit HINRP70MB
Air Flow (Turbo / Hi / Med / Lo / Silent) L/s 382/303/250/229/147
Sound Pressure @ 1.4m (Turbo / Hi / Med / Lo / Silent) dB(A) 57.645/45/39/33.5/29.5
Dimensions Dimension (W x H x D) mm 1082x337x234
Packing (W x H x D) 1155x415x318
Net / Gross Weight kg 13.5/17.8
Operating Range Cooling ℃ 16~32
Heating 0~30
Standard Controller Model Wireless Remote Control
Outdoor Unit HONRP70B
Sound Pressure Level @ 1m 65
Dimensions Dimension (W x H x D) mm 890x673x342
Packing (W x H x D) 995x740x398
Net / Gross Weight kg 42.4/46.9
Refrigerant Type R32
Charged Volume kg 1.4
Refrigerant Piping Pipe Size: Liquid / Gas mm 6.35/15.9
Maximum Pipe Length m 50
Chargeless Length 10
Extra Charge for Lengths >10m g/m 12
Maximum Vertical Separation m 25
Ambient Temperature Limits Cooling ℃ -15~50
Heating -15~24



  • Ideal for large, open plan living spaces
  • Wi-Fi Control
  • DRED Function
  • Quiet operation
  • GoldGuard
    The Rinnai PB Series Condenser Coil is coated with our special GoldGuard
    coating making it more resistant to oxidation and corrosion than ordinary Condenser Coils. The GoldGuard condenser coil also improves the heating efficiency of the PB Series in Reverse Cycle operation by accelerating
    the defrosting process.
    Rinnai’s unique GoldGuard coating uses nano technology to effectively prevent
    bacteria growth and deliver greater longevity and sustained performance of the outdoor unit in coastal areas and other harsh environments. Also, the coating is non-toxic and 100% environmentally friendly.

Rinnai PB Series HSNRP70B 7.0kW Split System Air Conditioner – Brochure

Rinnai HSNRP70B 7.0kW Single Split System Air Conditioner WIFI | PB Series
$1,805.00

Rinnai PB Series HSNRP70B 7.0kW Split System Air Conditioner
INSULATED PAIRED COPPER PIPE 6.35 x 15.88mm -1-4 x 5-8- 20 Meters length
$410.00

INSULATED PAIRED COPPER PIPE 6.35 x 15.88mm (1/4 x 5/8) 20 Meters length – Shipping Included
INSULATED PAIRED COPPER PIPE 6.35 x 15.88mm -1-4 x 5-8- 5 Meters length
$165.00

INSULATED PAIRED COPPER PIPE 6.35 x 15.88mm (1/4 x 5/8) 5 Meters length – Shipping Included
$50.00

Rinnai CNTRLDRCICAB 6m Extension Cable for Wired Controller
$2,430.00 Bundle Price for Selected items

Description

7.15 kW Cooling
7.80 kW Heating

WIFI Control | Dehumidifying Mode | Gold Guard condenser coil
