10.0 kW Cooling | 11.2 kW Heating

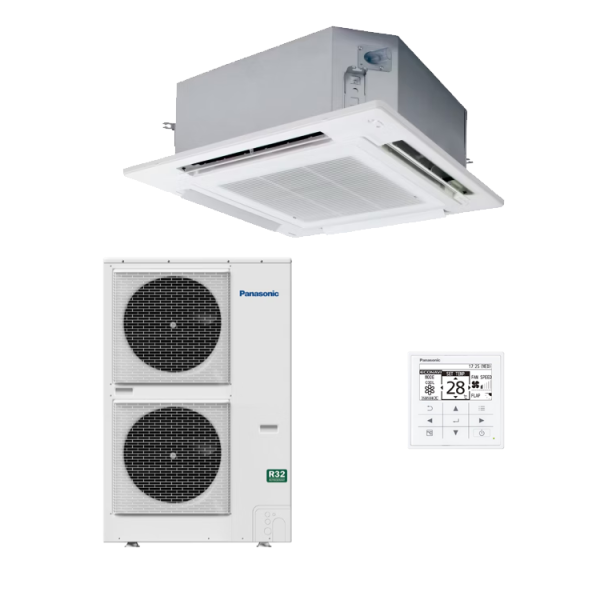

Panasonic S-1014PU3E / U-100PZH3R5 10.0kW NX Series 4-Way Cassette Deluxe Twin Fan Air Conditioner 1 Phase
Includes Indoor S-1014PU3E Outdoor U-100PZH3R5 Controller CZ-RTC5B Fascia CZ-KPU3H
5 Year Manufacturer’s Warranty | Air Purification NanoeX Generator | Powerful drain pump gives 850 mm lift | Deluxe Twin Fan
Price range: $5,570.00 through $5,690.00
| Capacity | 10.0kW | ||
|
Model Name
|
Indoor Unit | S-1014PU3E | |
| Outdoor Unit | U-100PZH3R8 | ||
| Panel | Standard type:CZ-KPU3H ECONAVI type:CZ-KPU3A | ||
|
Cooling capacity Heating capacity
|
kW | 10.0 (3.1 – 12.5) 11.2 (3.1 – 14.0) |
|
| BTU/h | 34,100 (10,600 – 42,700) 38,200 (10,600 – 47,800) |
||
| EER : COP | W/W | 4.41 : 5.00 | |
| COP@H2 condition | W/W | 2.9 | |
|
Total power input Cooling : Heating
|
kW | 2.27 : 2.24 | |
| TCSPF : HSPF | Residential | Hot Climate | 6.24 : 5.68 |
| Average Climate | 5.53 : 5.15 | ||
| Cold Climate | 5.64 : 4.63 | ||
| Commercial | Hot Climate | 6.96 : 5.66 | |
| Average Climate | 7.09 : 5.35 | ||
| Cold Climate | 7.69 : 4.92 | ||
| Indoor Unit | |||
| Power source | Phase/Hz | 1 Phase/ 50Hz | |
| V | 230V | 240V | ||
| Dimensions H × W × D | Indoor | mm | 319 x 840 x 840 |
| Panel | mm | 33.5 x 950 x 950 | |
| Net weight Indoor / Panel | kg | 25 / 5 | |
| Air volume (H/M/L) Cooling : Heating | L/s | 601 / 434 / 300 : 601 / 434 / 300 | |
| Sound pressure level (H/M/L) Cooling : Heating | dB(A) | 45 / 38 / 32 : 45 / 38 / 32 | |
| Sound power level (H/M/L) Cooling : Heating | dB | 60 / 53 / 47 : 60 / 53 / 47 | |
| Number of fan speeds | 5 | ||
| Drain pipe size | mm | VP-25 | |
| Outdoor Unit | |||
|
Power source
|
Phase/Hz | 3 Phase/ 50Hz | |
| V | 400V | 415V | ||
| Current (rated) Cooling : Heating | A | 3.60 : 3.55 | 3.45 : 3.40 | |
| Dimension H × W × D | mm | 1,416 x 940 x 340 | |
| Net weight | kg | 99 | |
| Air volume Cooling : Heating | m³/min | 1,970 : 1,803 | |
| Sound pressure level (Silent mode) Cooling : Heating | dB(A) | 52 (50) : 52 (50) | |
| Sound power level (Silent mode) Cooling : Heating | dB | 68 (66) : 68 (66) | |
| Piping connections Liquid / Gas | mm | Ø9.52 / Ø15.88 | |
| Pipe length range min. – max. | m | 5 – 85 | |
| Elevation difference (OU located lower, OU located higher) | m | 15, 30 | |
| Maximum chargeless length | m | 30 | |
| Refrigerant at shipping, Additional gas amount | g | R32 3,050 / 45 (g/m) | |
| Operating range Cooling : Heating | ˚C | -15 to 48 : -20 to 24 | |
Maintain quality air 24-hours a day by turning on nanoe™ X using the Panasonic Comfort Cloud app. nanoe™ X inhibits certain bacteria, viruses, pollens, allergens, mould, and hazardous substances found in PM2.5, providing effective deodorization and improving the air quality.
A third-party certification organization SIRIM Berhad (SIRIM), conducted the performance experiment using a 4-Way Cassette equipped with a nanoe™ X device to inhibit hexadecane, a chemical contained in PM2.5.
nanoe™ X also keeps the inside of the air conditioner clean. After the cooling/drying operation, the interior of the indoor unit dries itself automatically.* nanoe™ X is activated to suppress mould growth.
Smart Management of Power Consumption
Using the Panasonic Comfort Cloud app enables the air conditioner to be controlled from anywhere with a mobile device. Thus, there is no need to worry if someone forgets to turn off the office air conditioner. The power consumption can also be monitored to help reduce electricity waste.
Note: CZ-CAPWFC1 External WLAN Adaptor or CZ-RTC6WBLW/6BLW are required per unit.
The drain pump can pump water up to a height of 850 mm, making the drain pipe layout easy.
R32 Inverter NX Series 4-Way Cassettes, featuring 360° comfortable airflow, deliver a cleaner environment thanks to nanoe™ X. A new IoT remote controller also provides greater accessibility and convenience.
