Panasonic S-1014PU3E - U-100PZ3R8 10.0kW NX Series 4-Way Cassette Compact Single Fan Air Conditioner 3 Phase

Panasonic S-1014PU3E / U-100PZ3R8 10.0kW NX Series 4-Way Cassette Compact Single Fan Air Conditioner 3 Phase

SKU: S-1014PU3E / U-100PZ3R8 / CZ-KPU3H / CZ-RTC5B

10.0 kW Cooling | 10.0 kW Heating
Panasonic S-1014PU3E / U-100PZ3R8 10.0kW NX Series 4-Way Cassette Compact Single Fan Air Conditioner 3 Phase

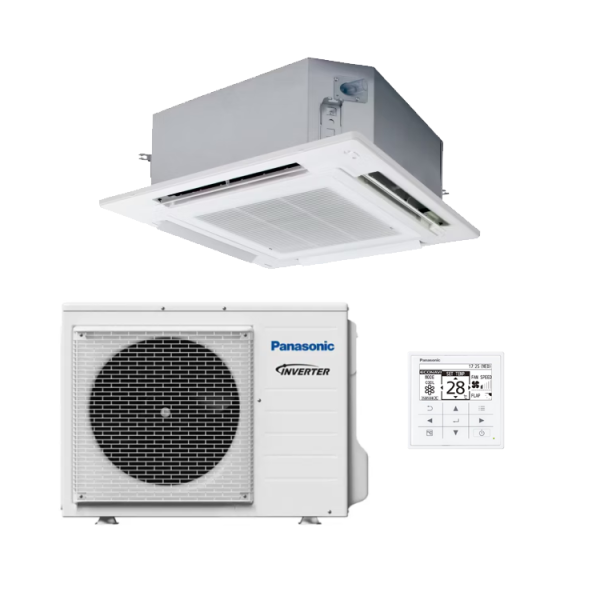

Includes Indoor S-1014PU3E Outdoor U-100PZ3R8 Controller CZ-RTC5B Fascia CZ-KPU3H
5 Year Manufacturer’s Warranty | Air Purification NanoeX Generator | Powerful drain pump gives 850 mm lift


Price range: $5,050.00 through $5,600.00

Or own it from $194.23 weekly for 6 months* zip money
Or pay in slices, no interest ever
> > >
Capacity 10.0kW
Model Name
 Indoor Unit S-1014PU3E
Outdoor Unit U-100PZ3R8
Panel Standard type:CZ-KPU3H ECONAVI type:CZ-KPU3A
Cooling capacity Heating capacity
 kW 10.0 (3.0-11.5)
10.0 (3.0-14.0)
BTU/h 34,100 (10,200-39,200)
34,100 (10,200 – 47,800)
EER : COP W/W 3.82 : 4.93
COP@H2 condition W/W 3.27
Total power input Cooling : Heating kW 2.62 : 2.03
TCSPF : HSPF
Residential
 Hot Climate 5.78 : 5.43
Average Climate 5.00 : 5.06
Cold Climate 5.10 : 4.62
Commercial
 Hot Climate 6.60 : 5.34
Average Climate 7.05 : 5.11
Cold Climate 7.94 : 4.78
Indoor Unit
Power source
 Phase/Hz 1 Phase / 50Hz
V 230V | 240V
Dimensions H × W × D
 Indoor mm 319 x 840 x 840
Panel mm 33.5 x 950 x 950
Net weight Indoor / Panel kg 25 / 5
Air volume (H/M/L) Cooling : Heating L/s 601 / 434 / 300 : 601 / 434 / 300
Sound pressure level (H/M/L) Cooling : Heating dB(A) 45 / 38 / 32 : 45 / 38 / 32
Sound power level (H/M/L) Cooling : Heating dB 60 / 53 / 47 : 60 / 53 / 47
Number of fan speeds 5
Drain pipe size mm VP-25
Outdoor Unit
Power source
 Phase/Hz 3 Phase / 50Hz
V 400V | 415V
Current (rated) Cooling : Heating A 4.15 : 3.20 | 4.00 : 3.10
Dimensions H × W × D mm 996 x 980 x 370
Net weight kg 83
Air volume Cooling : Heating m³/min 1,219 : 1,219
Sound pressure level (Silent mode) Cooling : Heating dB(A) 52 (50) : 52 (50)
Sound power level (Silent mode) Cooling : Heating dB 70 (68) : 70 (68)
Piping connections Liquid / Gas mm Ø9.52 / Ø15.88
Pipe length range min. – max. m 5 – 50
Elevation difference (OU located lower, OU located higher) m 15, 30
Maximum chargeless length m 30
Refrigerant at shipping, Additional gas amount g R32 2,400 / 45 (g/m)
Operation ranges Cooling : Heating ˚C -10 to 46 : -15 to 24



24-hour nanoe™ X Air Purification

Maintain quality air 24-hours a day by turning on nanoe™ X using the Panasonic Comfort Cloud app. nanoe™ X inhibits certain bacteria, viruses, pollens, allergens, mould, and hazardous substances found in PM2.5, providing effective deodorization and improving the air quality.

nanoe™ X Effectiveness Proven in Large Space

A third-party certification organization SIRIM Berhad (SIRIM), conducted the performance experiment using a 4-Way Cassette equipped with a nanoe™ X device to inhibit hexadecane, a chemical contained in PM2.5.

*(1) Testing method: Measured the amount of attached organic substances in an approximately 802 m³ sized test room. (2) Inhibition method: nanoe X Generator Mark1 released. (3) Test substance: Hexadecane (4) Test result: Inhibited 92% in 8 hours (ETRC257/16/1402 (R479/19))

Inside Cleaning Function Prevents Mould

nanoe™ X also keeps the inside of the air conditioner clean. After the cooling/drying operation, the interior of the indoor unit dries itself automatically.* nanoe™ X is activated to suppress mould growth.

*If you wish to set the inside cleaning function off, use the wireless RC to turn the function off. Please consult an authorized dealer for setting.
Note: The product image shown is for illustration purposes only and may not be an exact representation of the product.

Smart Management of Power Consumption
Using the Panasonic Comfort Cloud app enables the air conditioner to be controlled from anywhere with a mobile device. Thus, there is no need to worry if someone forgets to turn off the office air conditioner. The power consumption can also be monitored to help reduce electricity waste.
Note: CZ-CAPWFC1 External WLAN Adaptor or CZ-RTC6WBLW/6BLW are required per unit.

The drain pump can pump water up to a height of 850 mm, making the drain pipe layout easy.

  • nanoe™ X patented air purification technology
  • CONEX: A next-generation remote control
  • Industry-leading powerful, 360° wide & comfortable airflow
  • Powerful drain pump gives 850 mm lift
  • Compact design
  • Wireless remote controller included

Delivers superior air purification and convenience with a new IoT remote controller

R32 Inverter NX Series 4-Way Cassettes, featuring 360° comfortable airflow, deliver a cleaner environment thanks to nanoe™ X. A new IoT remote controller also provides greater accessibility and convenience.

Panasonic S-1014PU3E / U-100PZ3R8 10.0kW NX Series 4-Way Cassette Compact Single Fan Air Conditioner 3 Phase – Brochure

Panasonic S-1014PU3E - U-100PZ3R8 10.0kW NX Series 4-Way Cassette Compact Single Fan Air Conditioner 3 Phase
Price range: $5,050.00 through $5,600.00

Panasonic S-1014PU3E / U-100PZ3R8 10.0kW NX Series 4-Way Cassette Compact Single Fan Air Conditioner 3 Phase
INSULATED PAIRED COPPER PIPE 9.5 x 15.88mm (3/8 x 5/8) 20 Meters length
$429.00

INSULATED PAIRED COPPER PIPE 9.5mm x 15.88mm (3/8 x 5/8) 20 Meters length – Shipping Included
Panasonic CZ-KPU3A Econavi Panel
$575.00

Panasonic CZ-KPU3A Econavi Panel for 4-WAY Cassette
CZ-CAPWFC1
$551.00

Panasonic PAC WiFi Adaptor CZ-CAPWFC1
$6,605.00 Bundle Price for Selected items

Description

10.0 kW Cooling
10.0 kW Heating

Air Purification – nanoe™X | Powerful drain pump 850 mm lift | Compact Fan
