Panasonic S-100PK3R - U-100PZ3R8 9.0kW Inverter Split System Air Conditioner Compact Large Capacity 3 Phase
Air Conditioning Free Pickup Locations
Panasonic S-100PK3R - U-100PZ3R8 9.0kW Inverter Split System Air Conditioner Compact Large Capacity 3 Phase

Panasonic S-100PK3R | U-100PZ3R8 9.0kW Inverter Split System Air Conditioner Compact Large Capacity 3 Phase

SKU: S-100PK3R / U-100PZ3R8

9.0 kW Cooling | 9.0 kW Heating
Panasonic S-100PK3R | U-100PZ3R8 9.0kW Inverter Split System Air Conditioner Large Capacity 3 Phase

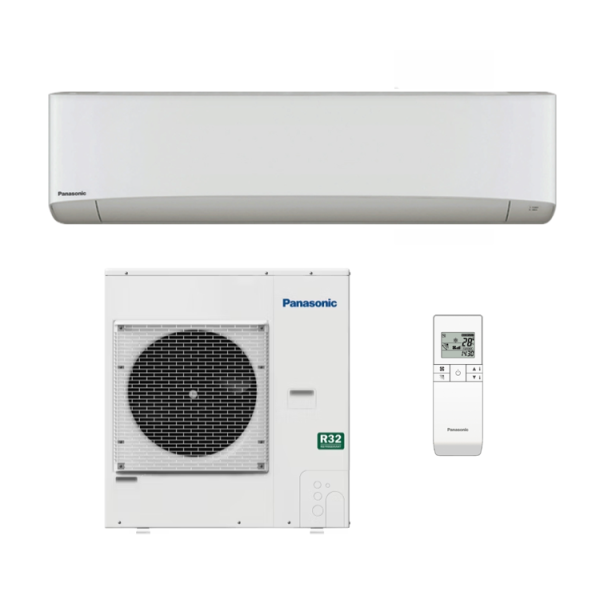

Includes Indoor S-100PK3R Outdoor U-100PZ3R8 Wireless Controller | NX Series
Air Purification NanoeX Generator | Compact Single Fan | Energy saving Technology | Quiet operation
5 Years Manufacturer’s Warranty


Price range: $4,175.00 through $5,410.00

Or own it from $160.58 weekly for 6 months* zip money
Or pay in slices, no interest ever
> > > >
Capacity 9.0kW
Model Name
 Indoor Unit S-100PK3R
Outdoor Unit U-100PZ3R8
Cooling capacity : Heating capacity
 kW 9.0 (3.0 – 9.7)
9.0 (3.0 – 10.5)
BTU/h 30,700 (10,200 – 33,100)
30,700 (10,200 – 35,800)
EER : COP W/W 3.47 : 3.93
COP@H2 condition W/W 2.53
Total power input Cooling : Heating kW 2.59 : 2.29
TCSPF : HSPF
Residential
 Hot Climate 4.85 : 5.29
Average Climate 4.21 : 4.55
Cold Climate 4.27 : 3.99
Commercial
 Hot Climate 5.39 : 5.31
Average Climate 5.42 : 4.87
Cold Climate 5.82 : 4.37
Indoor Unit
Power source
 Phase/Hz 1 Phase/ 50Hz
V 230V | 240V
Dimensions H × W × D Indoor mm 302 x 1,120 x 236
Net weight kg 14
Air volume (H/M/L) Cooling : Heating L/s 367 / 308 / 250
367 / 308 / 250
Sound pressure level (H/M/L) Cooling : Heating dB(A) 49 / 45 / 41 : 49 / 45 / 41
Sound power level (H/M/L) Cooling : Heating dB 65 / 61 / 57 : 65 / 61 / 57
Number of fan speeds 5
Drain pipe size mm VP-16
Outdoor Unit
Power source
 Phase/Hz 3 Phase / 50Hz
V 400V | 415V
Current (rated) Cooling : Heating A 4.10 : 3.65 | 3.95 : 3.50
Dimensions H × W × D mm 996 x 980 x 370
Net weight kg 83
Air volume Cooling : Heating m³/min 1,219 : 1,219
Sound pressure level (Silent mode) Cooling : Heating dB(A) 52 (50) : 52 (50)
Sound power level (Silent mode) Cooling : Heating dB 70 (68) : 70 (68)
Piping connections Liquid / Gas mm Ø9.52 / Ø15.88
Pipe length range min. – max. m 5 – 50
Elevation difference m
(OU located lower, OU located higher)		 15, 30
Maximum chargeless length m 30
Refrigerant at shipping, Additional gas amount g R32 2,400 / 45 (g/m)
Operating range Cooling : Heating ˚C -10 to 46 : -15 to 24



Technical focus

  • Closed discharge port
  • Piping outlet in six directions
  • Air distribution is automatically adjusted depending on the operational mode of the unit
  • Quiet operation
  • Washable front panel

When the unit is turned off, the flap closes completely to prevent entry of dust into the unit and to keep the equipment clean.
Piping outlet is possible in the six directions of right, right rear, right bottom, left, left rear, left bottom, making installation easier.
Air outlet angle is automatically adjusted for cooling and heating operation. Low operating noise level makes these units ideal for hotels and hospital applications. The indoor unit’s front panel can be easily cleaned for trouble-free maintenance.

  •  Closed discharge port when not in use
  • Lighter and smaller units make installation easy
  • Quiet operation
  • Smooth and durable design
  • Piping outlet in six directions
  • Washable front panel
  • Air distribution is automatically altered depending on the operational mode of the
