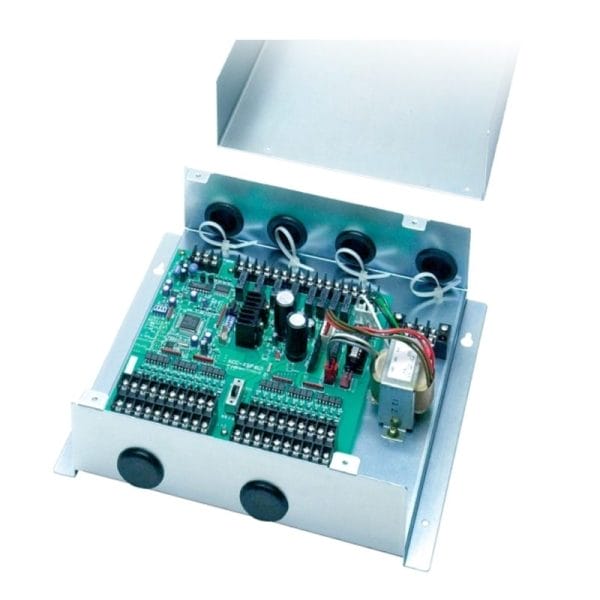

Panasonic CZ-CAPDC2 Seri-Para I/O Unit for Outdoor Unit Interface

Seri-Para I/O Unit for Outdoor Unit
Input: Batch operation/batch stop (non-voltage contact/24V DC, pulse signal). Cooling/heating (non-voltage contact/static signal). Demand 1/2 (non-voltage contact/static signal) (local stop by switching). Output: Operation output (non-voltage contact). Alarm output (non-voltage contact).

1) Central Control Device
* Wiring length: Indoor/outdoor operation lines: Total length 1km. Digital signal: 100m or shorter.

Description

Seri-Para I/O Unit

Q1: What is the Panasonic CZ-CAPDC2 used for?

The Panasonic CZ-CAPDC2 is a Seri-Para I/O Unit designed to provide an interface between compatible Panasonic air conditioning systems and external control equipment. It supports additional control and monitoring functions for suitable installations.

Q2: What does the Panasonic CZ-CAPDC2 connect to?

The Panasonic CZ-CAPDC2 is designed for connection to the outdoor unit interface of compatible Panasonic air conditioning systems. It provides Seri-Para input and output functionality for supported control configurations.

Q3: Can the Panasonic CZ-CAPDC2 be used for external control of a Panasonic air conditioning system?

Yes. The Panasonic CZ-CAPDC2 can provide an interface for external control and monitoring equipment when used with a compatible Panasonic air conditioning system. The available functions depend on the connected system and control configuration.
