Capacity | 5.0kW | ||
Model Name
|
Indoor Unit | CS-Z50UFRAW | |
Outdoor Unit | CU-Z50UBRA | ||
Cooling capacity : Heating capacity
|
kW | 5.00 (0.90~5.70) 5.60 (0.90~8.10) |
|
BTU/h | 17,100 (3,070~19,400) 19,100 (3,070~27,600) |
||
EER : COP W/W | 3.65 : 3.81 | ||
Power input (min-max) Cooling : Heating kW | 1.37(0.26-1.81) : 1.47 (0.26-2.60) |
||
TCSPF : HSPF
|
Residential
|
Hot Climate | 5.51 : 4.48 |
Average Climate | 5.20 : 4.18 | ||
Cold Climate | 5.37 : 3.69 | ||
Commercial
|
Hot Climate | 6.16 : 4.20 | |
Average Climate | 7.34 : 3.99 | ||
Cold Climate | 8.46 : 3.76 | ||
Indoor Unit | |||
Power source
|
Phase/Hz | 1 Phase / 50Hz | |
V | 230V | 240V | ||
Dimensions H × W × D mm | 600 x 750 x 207 | ||
Net weight kg | 13 | ||
Air volume Cooling : Heating L/s | 198 : 227 | ||
Sound pressure level (H/M/L) Cooling : Heating dB(A) | 44 / 31 / 27 : 46 / 33 / 29 | ||
Sound power level (H/M/L) Cooling : Heating dB(A) | 60 / 47 / 43 : 62 / 49 / 45 | ||
Outdoor Unit | |||
Power source
|
Phase/Hz | 1 Phase / 50Hz | |
V | 230V | 240V | ||
Current (rated) Cooling : Heating A | 6.20 : 6.60 | 6.00 : 6.40 | ||
Dimensions H x W x D mm | 695 x 875 x 320 | ||
Net weight kg | 42 | ||
Piping connections Liquid / Gas m | Ø6.35 / Ø9.52 | ||
Pipe length min. – max. m | 3 – 30 | ||
Elevation difference m | 20 | ||
Piping connections Cooling : Heating ˚C | -10 to 46 : -15 to 24 |

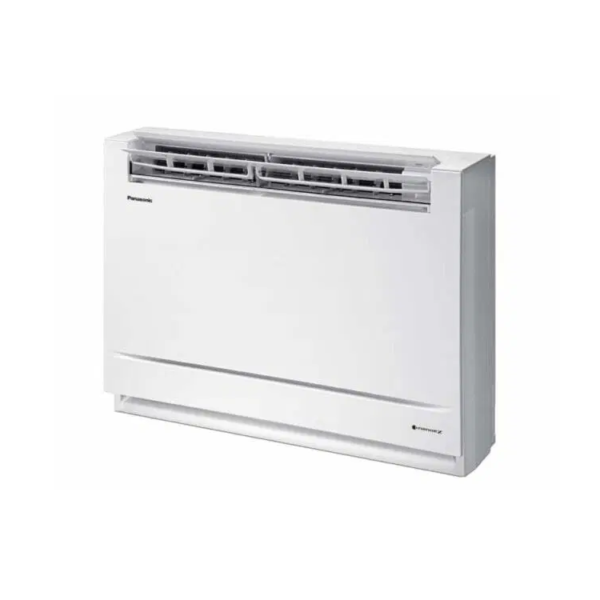

Panasonic CS-Z50UFRAW / CU-Z50UBRA 5.0kW Inverter Floor Console Air Conditioner
5.0 kW Cooling | 5.6 kW Heating
Panasonic CS-Z50UFRAW / CU-Z50UBRA 5.0kW Inverter Floor Console | nanoeX
Includes Indoor CS-Z50UFRAW Outdoor CU-Z50UBRA Wireless Controller
Air Purification NanoeX Generator | Inverter | Super Quiet
5 Years Manufacturer’s Warranty
Price range: $2,630.00 through $2,975.00
R32 Inverter Floor Console
Compact and stylish, capable of being installed in limited spaces
R32 Inverter Floor Console are compact and versatile, allowing them to be installed in an area with limited space. What is more, they deliver a cleaner environment thanks to nanoe™ X.
Compact and Stylish Design
The design features a flat, elegant front panel that provides a neat appearance. With a compact profile that can be installed within a limited space, such as under a window, it is easy to integrate into any design of building, including residences. This makes it the perfect solution to replace an existing boiler system radiator.
Double Air Flow Direction Creates a Comfortable Space
The unit creates a comfortable space by using different airflows for cooling and heating. When cooling, upward air flow efficiently cools the entire room. When heating, upward and downward air flow warms the whole room uniformly.
Super Quiet Operation
The indoor and outdoor units deliver quiet operation, and pressing the Quiet mode button lowers operation noise even further to just 19dB,* making it ideal for installation in bedrooms.
*CS-Z25UFRAW & CS-Z35UFRAW: In the Quiet mode during heating operation with low fan speed
Wireless Remote Controller
The indoor unit comes with a wireless remote controller.
Flexible Installation
The compact unit can be installed within a limited space, such as under a window.
- nanoe™ X patented air purification technology
- Clean and stylish design with slim depth
- Flexible and easy installation
- Washable air filter
- Quiet operation
- Dry mode to reduce humidity in rooms
Description
5.0 kW Cooling
5.6 kW Heating
nanoeX Air Purification | Super Quiet
