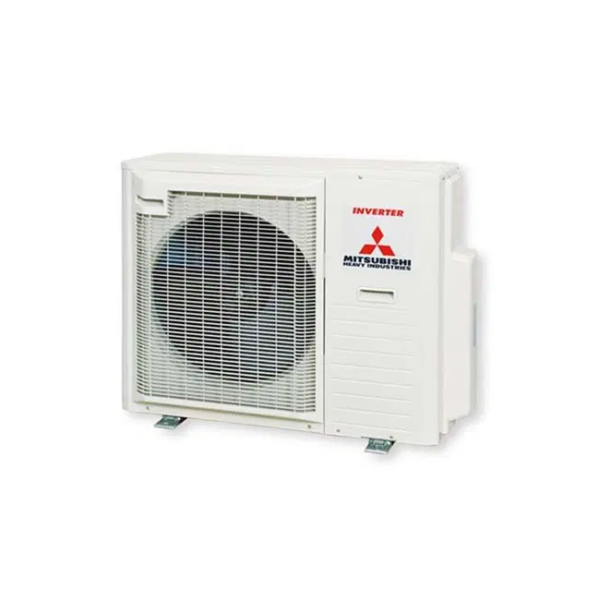

Mitsubishi Heavy Industries SCM80ZS-W 8.0kW Multi Split Outdoor Unit

SKU: SCM80ZS-W

8.0kW Cooling | 9.3kW Heating
Mitsubishi Heavy Industries SCM80ZS-W 8.0kW Multi Split System Outdoor Unit Only
Serves up-to 4 Indoor Units | Part of a Multi System
Maximum capacity of indoor units allowed 13.5kW
5 Year Manufacturer’s Warranty
Legal Combinations and Limitations

$2,765.55

Or own it from $106.37 weekly for 6 months*

Or pay in slices, no interest ever

Outdoor				SCM80ZS-W
Power source (Outdoor)				1 Phase 240V 50Hz
*Operation data	Nominal Capacity (Range)	Cooling T1	kW	8.0 (1.8~9.2)
		Heating H1		9.3 (1.1~9.8)
	Power consumption	Cooling T1		1.70
		Heating H1		1.95
	Running current	Cooling T1	A	7.2
		Heating H1		8.2
	Inrush current, maximum current			5, 20
	EER	Cooling T1		4.71
	COP	Heating H1		4.77
	Sound power level (JIS C9612)	Cooling T1	dB(A)	66
		Heating H1		67
	Sound pressure level (JIS C9612)	Cooling T1		54
		Heating H1		54
	Silent mode	Cooling T1		46
		Heating H1		50
External dimensions (HxWxD)			mm	750×880(+73)x340
Net weight			kg	61
Refrigerant (R32)		Quantity		2.55
		Pre charged to pipe length	m	30
Installation data	Refrigerant piping	Liquid line	mm	Ø6.35 x 4
		Gas line		Ø9.52 x 4
	Connection method			Flare connection
	Maximum pipe length to one indoor unit		m	25
	Total pipe length to all indoor units			70
	Max vertical height diff. between O.U. and I.U.			20 ( O.U. above I.U.) / 20 ( O.U. below I.U. )
Indoor Unit Combination		SRK-ZSA-W	kW	2.0, 2.5, 3.5, 5.0
		SRK-ZSXA-W		2.0, 2.5, 3.5, 5.0, 6.0
		SRK-ZRA-W		7.1
		SRF-ZS(X)-W		2.5, 3.5, 5.0
		SRR-ZS-W		2.5, 3.5, 5.0, 6.0
		FDTC-VH		2.5, 3.5, 5.0, 6.0
		FDUM-VH		5.0
Indoor Unit Connection				2 to 4 Units
Indoor Connection Capacity			kW	8.0 to 13.5
Outdoor air temperature (upper, lower limits)		Cooling	°C	-15 to 46
		Heating		-15 to 24
