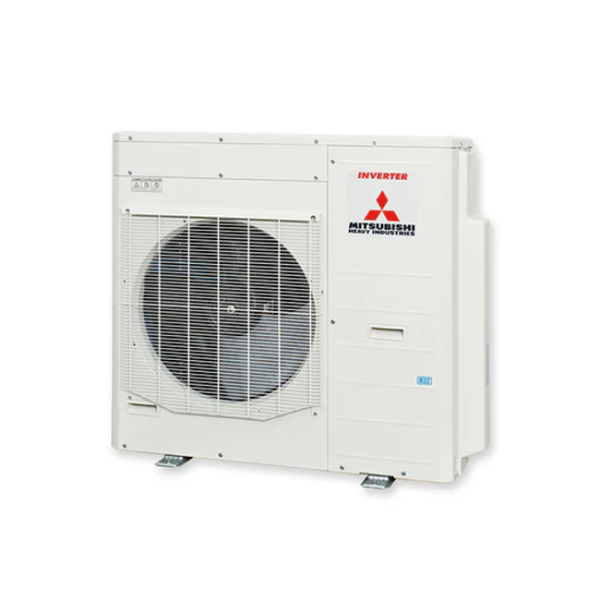

Mitsubishi Heavy Industries SCM100ZS-W 10.0kW Multi System Outdoor Unit

SKU: SCM100ZS-W

10.0kW Cooling | 10.5kW Heating
Mitsubishi Heavy Industries SCM100ZS-W 10kW Multi-Split System Outdoor Unit Only | R32
Serves 3 to 5 Indoor Units | Part of a Multi System
Maximum capacity of indoor units allowed: 16kW
5 Year Manufacturer’s Warranty
Legal Combinations and Limitations

$3,274.37

Or own it from $125.94 weekly for 6 months*

Or pay in slices, no interest ever

Outdoor				SCM100ZS-W
Power source (Outdoor)				1 Phase 240V 50Hz
*Operation data	Nominal Capacity (Range)	Cooling T1	kW	10.0 (1.7~11.5)
		Heating H1		10.5 (0.9~11.5)
	Power consumption	Cooling T1		2.70
		Heating H1		2.38
	Running current	Cooling T1	A	11.4
		Heating H1		10.0
	Inrush current, maximum current			5, 21
	EER	Cooling T1		3.70
	COP	Heating H1		4.41
	Sound power level (JIS C9612)	Cooling T1	dB(A)	67
		Heating H1		72
	Sound pressure level (JIS C9612)	Cooling T1		54
		Heating H1		59
	Silent mode	Cooling T1		49
		Heating H1		50
External dimensions (HxWxD)			mm	945 x 970 x 370
Net weight			kg	73
Refrigerant (R32)		Quantity		2.98
		Pre charged to pipe length	m	40
Installation data	Refrigerant piping	Liquid line	mm	Ø6.35 x 5
		Gas line		Ø9.52 x 5
	Connection method			Flare connection
	Maximum pipe length to one indoor unit		m	25
	Total pipe length to all indoor units			75
	Max vertical height diff. between O.U. and I.U.			20 ( O.U. above I.U.) / 20 ( O.U. below I.U. )
Indoor Unit Combination		SRK-ZSA-W	kW	2.0, 2.5, 3.5, 5.0
		SRK-ZSXA-W		2.0, 2.5, 3.5, 5.0, 6.0
		SRK-ZRA-W		7.1, 8.0
		SRF-ZS(X)-W		2.5, 3.5, 5.0
		SRR-ZS-W		2.5, 3.5, 5.0, 6.0
		FDTC-VH		2.5, 3.5, 5.0, 6.0
		FDUM-VH		5.0
Indoor Unit Connection				**3 to 5 Units
Indoor Connection Capacity			kW	9.0 to 16.0
Outdoor air temperature (upper, lower limits)		Cooling	°C	-15 to 46
		Heating		-15 to 24
