Mitsubishi Heavy Industries FDUA140AVNXWVH 14kW High Static Ducted System - Single Phase
Air Conditioning Free Pickup Locations
Mitsubishi Heavy Industries FDUA140AVNXWVH 14kW High Static Ducted System - Single Phase

Mitsubishi Heavy Industries FDUA140AVNXWVH 14.0kW High Static Ducted System | 1 Phase

SKU: FDUA140AVNXWVH / FDUA140VH / FDCA140VNX-W / RC-EXZ3A

14.0 kW Cooling | 16.0 kW Heating

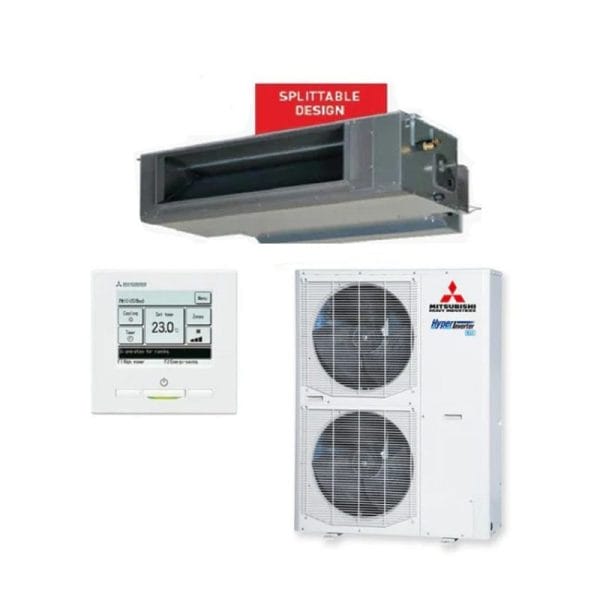

Mitsubishi Heavy Industries FDUA140AVNXWVH 14.0kW High Static Ducted System | 1 Phase
Includes Indoor FDUA140VH | Outdoor FDCA140VNX-W
Optional – No Controller | Standard Wired Controller | 4 Zone Wired Controller | 8 Zone Wired Controller
5 Years Manufacturer’s Warranty | Max Pipe length: 100m


Price range: $5,120.00 through $6,245.00

Or own it from $196.92 weekly for 6 months* zip money
Or pay in slices, no interest ever
> > > >
CAPACITY 14.0KW
Set FDUA140AVNXWVH
Indoor FDUA140VH
Outdoor FDCA140VNX-W
Power Source (Outdoor Unit) 1 Phase 240V 50Hz


















*Operation Data



Nominal Capacity Range

 Cooling T1





kW

 14.0 (5.0-14.5)
Heating H1 16.0 (4.0-18.0)
Heating H2 15.50


Power Consumption

 Cooling T1 4.02
Heating H1 4.19
Max Power Consumption 5.77


Running Current

 Cooling T1

A

 17.8
Heating H1 18.6
Inrush Current, Maximum Current 5, 30
EER Cooling T1 3.48
COP Heating H1 3.82
Sound Power Level (JS C9612) Outdoor



dB(A)

 73
Sound Pressure Level (JS C9612) Indoor P-Hi:48 Hi:47 Me:43 Lo:38
Outdoor 54


External Dimensions (HXWXD)

 Indoor

mm

 398x1450x930
Outdoor 1300x970x370


Net Weight

 Indoor

Kg

 66
Outdoor 97
Supply Air Connection

mm

 298×1064
Return Air Connection 2 X Ø400
External Static Pressure (Max) Pa 150
Airflow Indoor (Cooling) l/s P-Hi:1000 Hi:867

Me:733 Lo:600
Indoor (Heating)


Refrigerant (Type, Amount, Pre-charge Length)

 Quantity kg (R32) 4.0
Pre Charged To Pipe

Length

 m 30






Installation Data



Refrigerant Piping

 Liquid Line

mm

 Ø9.52
Gas Line Ø15.88
Connection Method Flare connection
Maximum Pipe Length (One Way)

m

 100
Max vertical height diff. between O.U. and I.U. 30 ( O.U. above I.U. ) / 15 ( O.U. below I.U. )
Controller RC-E5, RC-EXZ3A, RCH-E3 or RCN-KIT4-E2
Safety Pan (Optional) N/A
Motion Sensor (Optional) LB-KIT2
Demand response (AS4755) Yes
Outdoor air temperature (upper, lower limits) Cooling

oC

 -15 to 50
Heating -20 to 20

Our FDUA series of ducted systems are a quiet and discreet solution for multiple rooms. Coming in a range of capacities ranging from 10kW up to 23.5kW and incorporating a range of convenient features and functions, the FDUA is the perfect heating and cooling solution for any sized Aussie home.

â–  R32 REFRIGERANT
â–  LIGHTER, MORE COMPACT OUTDOOR UNIT
â–  EXTERNAL PIPE CONNECTION FOR EASE OF ACCESS
â–  QUIETER OPERATION
â–  DUCTED UNITS COMPATIBLE WITH FLEXIZONE

Mitsubishi Heavy Industries FDUA140AVNXWVH 14.0kW High Static Ducted System | 1 Phase – Brochure

Mitsubishi Heavy Industries FDUA140AVNXWVH 14kW High Static Ducted System - Single Phase
Price range: $5,120.00 through $6,245.00

Mitsubishi Heavy Industries FDUA140AVNXWVH 14.0kW High Static Ducted System | 1 Phase
INSULATED PAIRED COPPER PIPE 9.5 x 15.88mm (3/8 x 5/8) 20 Meters length
$399.00

INSULATED PAIRED COPPER PIPE 9.5mm x 15.88mm (3/8 x 5/8) 20 Meters length – Shipping Included
$468.00

Mitsubishi Heavy Industries WIFI ADAPTOR MH-RC-WIFI-1B
$5,987.00 Bundle Price for Selected items

Description

14.0 kW Cooling
16.0 kW Heating

Quieter Operation | Splittable Indoor
