Mitsubishi Heavy Industries FDUA125AVNPWVH 12.1kW High Static Ducted System | 1 Phase
Air Conditioning Free Pickup Locations
Mitsubishi Heavy Industries FDUA125AVNPWVH 12.1kW High Static Ducted System | 1 Phase

Mitsubishi Heavy Industries FDUA125AVNPWVH 12.1kW High Static Ducted System | 1 Phase

SKU: FDUA125AVNPWVH / FDUA125VH / FDCA125VNP-W / RC-EXZ3A

12.1 kW Cooling | 12.1 kW Heating

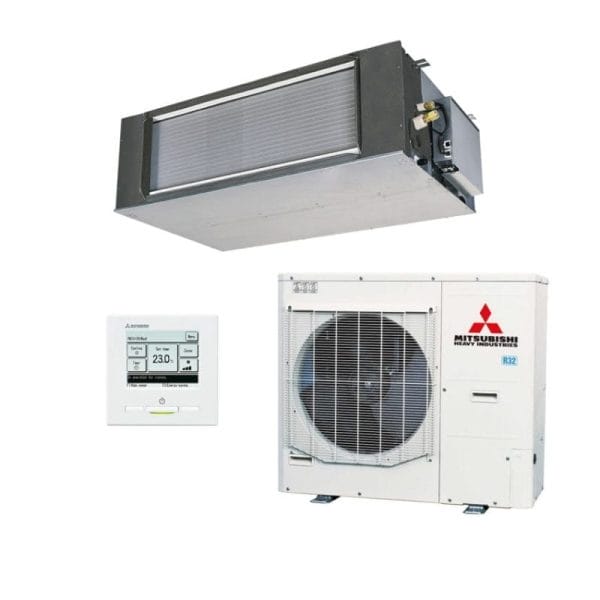

Mitsubishi Heavy Industries FDUA125AVNPWVH 12.1kW High Static Ducted Air Conditioner System | 1 Phase
Indoor FDUA125VH | Outdoor FDCA125VNP-W
Optional – No Controller | Standard Wired Controller | 4 Zone Wired Controller | 8 Zone Wired Controller
5 Years Manufacturer’s Warranty | Max Pipe length 30m




Price range: $4,450.00 through $5,575.00

Or own it from $171.15 weekly for 6 months* zip money
Or pay in slices, no interest ever
> > > >
CAPACITY 12.1KW
Set FDUA125AVNPWVH
Indoor FDUA125VH
Outdoor FDCA125VNP-W
Power Source (Outdoor Unit)
*Operation Data
Nominal Capacity Range
 Cooling T1
kW
 12.1 (5.0-12.1)
Heating H1 12.1 (4.0-13.3)
Heating H2 7.9
Power Consumption
 Cooling T1 3.85
Heating H1 3.28
Max Power Consumption 4.75
Running Current
 Cooling T1
A
 16.2
Heating H1 13.8
Inrush Current, Maximum Current 5, 20
EER Cooling T1
3.14
COP Heating H1 3.69
Sound Power Level (JS C9612) Outdoor
dB(A)
 73
Sound Pressure Level (JS C9612)
 Indoor P-Hi:46 Hi:44 Me:42 Lo:38
Outdoor 57
External Dimensions (HXWXD)
 Indoor
mm
 398x1150x650
Outdoor 845x970x370
Net Weight
 Indoor
Kg
 52
Outdoor 73
Supply Air Connection
mm
 348×898
Return Air Connection 348×898
External Static Pressure (Max) Pa 200
Airflow
 Indoor (Cooling)
l/s
 P-Hi:717 Hi:650
Me:600 Lo:500
Indoor (Heating)
Refrigerant (R32)
 Quantity kg 2.25
Pre Charged To
Pipe Length		 m 15
Installation Data
Refrigerant Piping
 Liquid Line
mm
 Ø9.52
Gas Line Ø15.88
Connection Method
Maximum Pipe Length (One Way)
m
 30
Max vertical height diff. between O.U. and I.U. 20 (O.U. above I.U.) /
20 (O.U. below I.U)
Controller
Safety Pan (Optional) UA-SP2-E
Motion Sensor (Optional)
Demand response (AS4755) Yes
Outdoor air temperature (upper, lower limits)
 Cooling
oC
 -15 to 46
Heating -15 to 20



Our FDUA series of ducted systems are a quiet and discreet solution for multiple rooms. Coming in a range of capacities ranging from 10kW up to 23.5kW and incorporating a range of convenient features and functions, the FDUA is the perfect heating and cooling solution for any sized Aussie home.

■ R32 REFRIGERANT
■ LIGHTER, MORE COMPACT OUTDOOR UNIT
■ EXTERNAL PIPE CONNECTION FOR EASE OF ACCESS
■ QUIETER OPERATION
■ DUCTED UNITS COMPATIBLE WITH FLEXIZONE

Mitsubishi Heavy Industries FDUA125VNPWVH 12.1kW High Static Ducted System | 1 Phase – Brochure

Mitsubishi Heavy Industries FDUA125AVNPWVH 12.1kW High Static Ducted System | 1 Phase
Price range: $4,450.00 through $5,575.00

Mitsubishi Heavy Industries FDUA125AVNPWVH 12.1kW High Static Ducted System | 1 Phase
INSULATED PAIRED COPPER PIPE 9.5 x 15.88mm (3/8 x 5/8) 20 Meters length
$429.00

INSULATED PAIRED COPPER PIPE 9.5mm x 15.88mm (3/8 x 5/8) 20 Meters length – Shipping Included
$468.00

Mitsubishi Heavy Industries WIFI ADAPTOR MH-RC-WIFI-1B
$5,347.00 Bundle Price for Selected items

Description

12.1 kW Cooling
12.1 kW Heating

Quieter Operation | Max pipe length 30m
