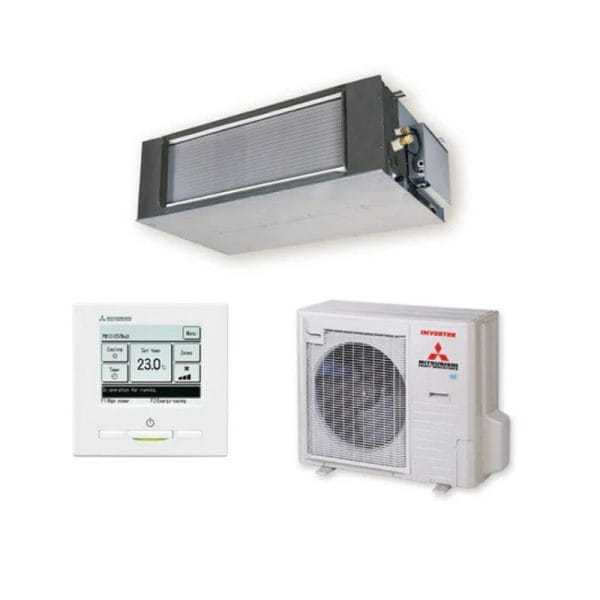

Mitsubishi Heavy Industries FDUA100AVNPWVH 10.0kW High Static Ducted System | 1 Phase
10.0 kW Cooling | 11.2 kW Heating
Mitsubishi Heavy Industries FDUA100AVNPWVH 10.0kW High Static Ducted System | 1 Phase
Optional RC-EXZ3A Backlit Controller | 4 Zone Wired Controller | 8 Zone Wired Controller
Includes Indoor FDUA100VH | Outdoor FDCA100VNP-W
5 Years Manufacturer’s Warranty | Max Pipe length: 30m
Price range: $3,220.00 through $4,380.00
| CAPACITY | 10.0 KW | |||||||||||||||||||||
| Set | FDUA100AVNPWVH | |||||||||||||||||||||
| Indoor | FDUA100VH | |||||||||||||||||||||
| Outdoor | FDCA100VNP-W | |||||||||||||||||||||
| Power Source (Outdoor Unit) | 1 Phase 240V 50Hz | |||||||||||||||||||||
|
*Operation Data
|
Nominal Capacity Range
|
Cooling T1 |
kW
|
10 (2.1-10.2) | ||||||||||||||||||
| Heating H1 | 10 (1.7-10.4) | |||||||||||||||||||||
| Heating H2 | 7.6 | |||||||||||||||||||||
|
Power Consumption
|
Cooling T1 | 2.99 | ||||||||||||||||||||
| Heating H1 | 2.57 | |||||||||||||||||||||
| Max Power Consumption | 4.46 | |||||||||||||||||||||
|
Running Current
|
Cooling T1 |
A
|
13.2 | |||||||||||||||||||
| Heating H1 | 11.4 | |||||||||||||||||||||
| Inrush Current, Maximum Current | 5, 19 | |||||||||||||||||||||
| EER | Cooling T1 | 3.34 | ||||||||||||||||||||
| COP | Heating H1 | 3.89 | ||||||||||||||||||||
| Sound Power Level (JS C9612) | Outdoor |
dB(A)
|
68 | |||||||||||||||||||
|
Sound Pressure Level (JS C9612)
|
Indoor | P-Hi:43 Hi:42 Me:40 Lo:37 | ||||||||||||||||||||
| Outdoor | 56 | |||||||||||||||||||||
|
External Dimensions (HXWXD)
|
Indoor |
mm
|
398x1150x650 | |||||||||||||||||||
| Outdoor | 750×880(+88)×340 | |||||||||||||||||||||
|
Net Weight
|
Indoor |
Kg
|
52 | |||||||||||||||||||
| Outdoor | 57 | |||||||||||||||||||||
| Supply Air Connection |
mm
|
348×898 | ||||||||||||||||||||
| Return Air Connection | 348×898 | |||||||||||||||||||||
| External Static Pressure (Max) | Pa | 200 | ||||||||||||||||||||
|
Airflow
|
Indoor (Cooling) |
l/s
|
P-Hi:650 Hi:600 Me:550 Lo:483 |
|||||||||||||||||||
| Indoor (Heating) | ||||||||||||||||||||||
|
Refrigerant (R32)
|
Quantity | kg | 1.7 | |||||||||||||||||||
| Pre Charged To Pipe Length |
m | 15 | ||||||||||||||||||||
|
Installation Data
|
Refrigerant Piping
|
Liquid Line |
mm
|
Ø6.35** | ||||||||||||||||||
| Gas Line | Ø15.88 | |||||||||||||||||||||
| Connection Method | ||||||||||||||||||||||
| Maximum Pipe Length (One Way) |
m
|
30 | ||||||||||||||||||||
| Max vertical height diff. between O.U. and I.U. | 20 (O.U. above I.U.) / 20 (O.U. below I.U) |
|||||||||||||||||||||
| Controller | ||||||||||||||||||||||
| Safety Pan (Optional) | UA-SP2-E | |||||||||||||||||||||
| Motion Sensor (Optional) | ||||||||||||||||||||||
| Demand response (AS4755) | Yes | |||||||||||||||||||||
|
Outdoor air temperature (upper, lower limits)
|
Cooling |
oC
|
-15 to 46 | |||||||||||||||||||
| Heating | -15 to 20 | |||||||||||||||||||||
Our FDUA series of ducted systems are a quiet and discreet solution for multiple rooms. Coming in a range of capacities ranging from 10kW up to 23.5kW and incorporating a range of convenient features and functions, the FDUA is the perfect heating and cooling solution for any sized Aussie home.
■ R32 REFRIGERANT
■ LIGHTER, MORE COMPACT OUTDOOR UNIT
■ EXTERNAL PIPE CONNECTION FOR EASE OF ACCESS
■ QUIETER OPERATION
■ DUCTED UNITS COMPATIBLE WITH FLEXIZONE
Description
10.0 kW Cooling
11.2 kW Heating
Compact Outdoor Unit | Quieter Operation
