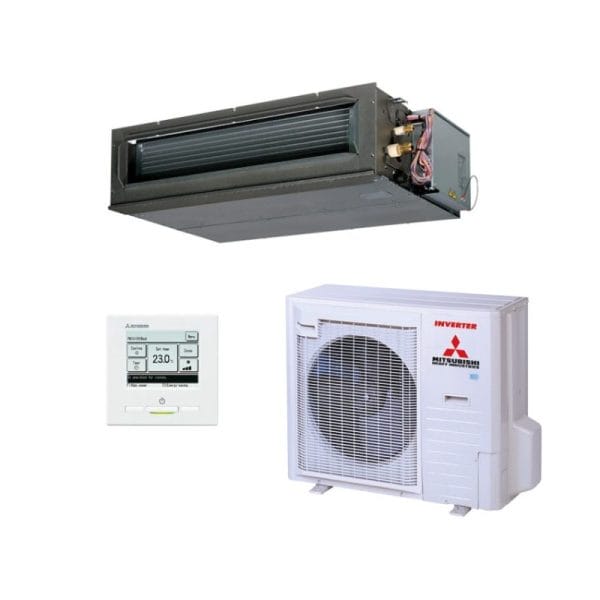

Mitsubishi Heavy Industries FDU71AVNXWVH 7.1kW Slimline Ducted Air Conditioner System

SKU: FDU71AVNXWVH / FDU71VH / FDCA71VNX-W / RC-EXZ3A

7.1 kW Cooling | 8.0 kW Heating | 1 Phase
Mitsubishi Heavy Industries FDU71AVNXWVH 7.1kW Slimline Ducted System
Indoor FDU71VH | Outdoor FDCA71VNX-W
Includes RC-EXZ3A Wired Controller Slimline | Dry Operation to reduce Humidity |
5 Years Manufacturer’s Warranty | 30m Precharged and 50m max pipe length

$3,307.00

Or own it from $127.19 weekly for 6 months*

Or pay in slices, no interest ever

CAPACITY				7.1 KW
Set				FDU71AVNXWVH
Indoor				FDU71VH
Outdoor				FDCA71VNX-W
Power Source (Outdoor Unit)				1 Phase 240V 50Hz
*Operation Data	Nominal Capacity Range	Cooling T1	kW	7.1 (3.2-8.0)
		Heating H1		8.0 (3.6-9.0)
		Heating H2		7.4
	Power Consumption	Cooling T1		1.77
		Heating H1		1.78
	Max Power Consumption			4.11
	Running Current	Cooling T1	A	7.9
		Heating H1		7.9
	Inrush Current, Maximum Current			5, 20
	EER	Cooling T1		4.01
	COP	Heating H1		4.49
	Sound Power Level (JS C9612)	Outdoor	dB(A)	66
	Sound Pressure Level (JS C9612)	Indoor		P-Hi:38 Hi:33 Me:29 Lo:25
		Outdoor		51
External Dimensions (HXWXD)		Indoor	mm	280x950x635
		Outdoor		750×880(+88)x340
Net Weight		Indoor	Kg	34
		Outdoor		60
Supply Air Connection			mm	170×880
Return Air Connection				200X740
External Static Pressure (Max)			Pa	200
Airflow		Indoor (Cooling)	l/s	P-Hi:400 Hi:316 Me: 250 Lo:166
		Indoor (Heating)
Refrigerant (R32)		Quantity	kg	2.75
		Pre Charged To Pipe Length	m	30
Installation Data	Refrigerant Piping	Liquid Line	mm	Ø9.52
		Gas Line		Ø15.88
	Connection Method			Flare Connection
	Maximum Pipe Length (One Way)		m	50
	Max vertical height diff. between O.U. and I.U.			30 ( O.U. above I.U.) / 15 ( O.U. below I.U. )
Controller				RC-E5, RC-EXZ3A, RCH-E3 or RCN-KIT4-E2
Motion Sensor (Optional)				LB-KIT2
Demand response (AS4755)				Yes
Outdoor air temperature (upper, lower limits)		Cooling	oC	-15 to 50
		Heating		-20 to 20

The FDU series of ducted air conditioning systems are a quiet and discreet climate solution for your entire home. Ranging from 7.1kW up to 14kW, the FDU series incorporates a compact design, a range of convenient features and functions including high power mode, silent mode and several timer and scheduling functions.

POWER: Single Phase & Three Phase | AVAILABLE IN: Reverse Cycle

CAPACITIES: 7.1kW | 10.0kW | 12.1kW |12.5kW | 14.0kW
