Mitsubishi Heavy Industries FDU160KXE6F-W / FDCA155KXZEN1-W 15.2kW KX 1:1 High Static Ducted Air Conditioner System | 1 Phase

SKU: FDU160KXE6F-W / FDCA155KXZEN1-W / RC-EXZ3A

15.2kW Cooling | 15.2kW Heating

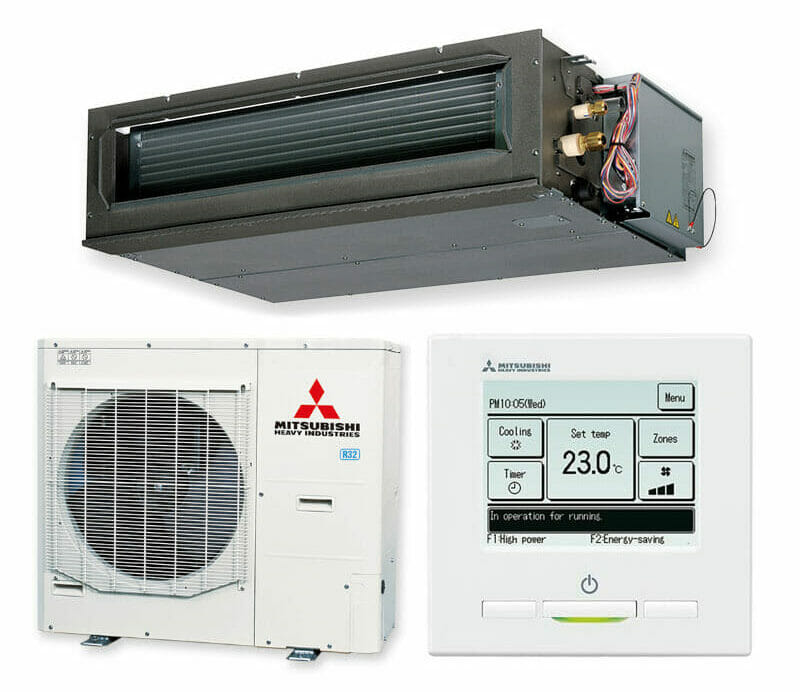

Mitsubishi Heavy Industries FDU160KXE6F-W / FDCA155KXZEN1-W 15.2kW KX 1:1 High Static Ducted Air Conditioner 1 Phase
Includes Indoor FDU160KXE6F-W | Outdoor FDCA155KXZEN1-W
Includes RC-EXZ3A Wired Backlit Controller | High Performance | Bluefin Coated | Reduced Operation Noise
5 Years Manufacturer’s Warranty | Max Pipe length: 50m

$6,056.40

Or own it from $232.94 weekly for 6 months*

Or pay in slices, no interest ever

9.5 x 15.88mm (3/8 x 5/8)> Mitsubishi Heavy Industries Air Conditioning> Mitsubishi Heavy Industries Ducted Air Conditioners> Mitsubishi Heavy Industries FDU Series KX 1:1 High Static Ducted Air Condirtioner

CAPACITY				15.2KW
Indoor				FDU160KXE6F-W
Outdoor				FDCA155KXZEN1-W
Power Source (Outdoor Unit)				1 Phase 240V 50Hz
*Operation Data	Nominal Capacity Range	Cooling T1	kW	15.2
		Heating H1		15.5
	Power Consumption (Indoor Unit)	Cooling T1		0.43
		Heating H1		0.43
	Power Consumption (Outdoor Unit)	Cooling T1		4.87
		Heating H1		4.06
	Running Current (Indoor Unit)	Cooling T1	A	2.5
		Heating H1		2.5
	Running Current (Outdoor Unit)	Cooling T1		20.5
		Heating H1		17.1
	Inrush Current, Maximum Current			5, 23
	Sound Pressure Level (JS C9612)	Indoor	dB(A)	P-Hi:45 Hi:38 Me:34 Lo:29
		Outdoor		54
External Dimensions (HXWXD)		Indoor	mm	280×1368×740
		Outdoor		845x970x370
Net Weight		Indoor	kg	54
		Outdoor		85
Supply Air Connection			mm	170 x 1200
Return Air Connection				235 x 1280
External Static Pressure (Max)			Pa	200
Airflow		Indoor (Cooling)	l/s	P-Hi:800 Hi:583 Me:467 Lo:367
		Indoor (Heating)
Refrigerant (Type, Amount, Pre-charge Length)		Quantity	kg	(R32) 4.2
		Pre Charged To Pipe Length	m	30**
Installation Data	Refrigerant Piping	Liquid Line	mm	Ø9.52
		Gas Line		Ø15.88
	Connection Method			Flare Connection
	Maximum Pipe Length (One Way)		m	50
	Max vertical height diff. between O.U. and I.U.			30 ( O.U. above I.U. ) / 15 ( O.U. below I.U. )
Controller				RC-E5, RC-EXZ3A, RCH-E3 or RCN-KIT4-E2
Motion Sensor (Optional)				LB-KIT2
Demand response (AS4755)				No
Outdoor air temperature (upper, lower limits)		Cooling	oC	-15 to 43
		Heating		-20 to 20

The KX1:1 series of ducted air-conditioning systems are quiet yet powerful. Ranging from 9.0kW up to 28.0kW, the KX1:1 series of ducted systems incorporates a range of convenient features and functions including automatic mode, high power mode, silent mode and a range of timer and scheduling functions making them the perfect climate solution for any Australian home.

POWER: Single Phase & Three Phase | AVAILABLE IN: Reverse Cycle

CAPACITIES: 9.0kW | 11.2kW | 14.0kW | 15.2kW | 22.4kW | 28.0kW

Key features

High performance
Durable and robust design
Bluefin coated components for increased weather protection
Low profile indoor units
Reduced operation noise

Mitsubishi Heavy Industries FDU160KXE6F-W / FDCA155KXZEN1-W 15.2kW KX 1:1 High Static Ducted Air Conditioner System | 1 Phase – Brochure
