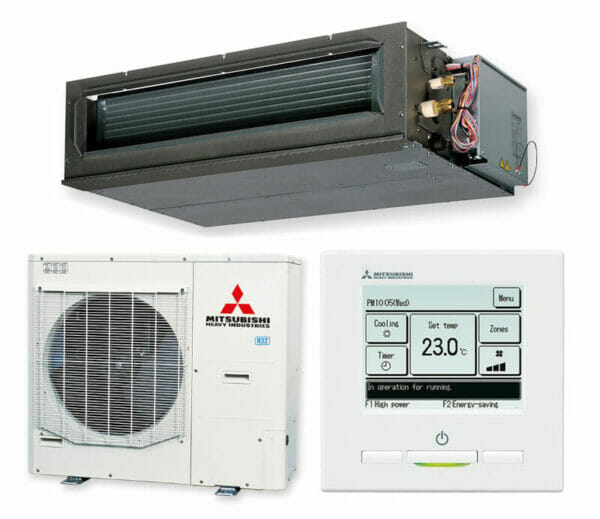

Mitsubishi Heavy Industries FDU140KXE6F-W / FDC140KXZEN1-W 14.0kW KX 1:1 High Static Ducted Air Conditioner System | 1 Phase

SKU: FDU140KXE6F-W / FDC140KXZEN1-W / RC-EXZ3A

14.0kW Cooling | 14.0kW Heating
Mitsubishi Heavy Industries FDU140KXE6F-W / FDC140KXZEN1-W 14.0kW KX 1:1 High Static Ducted Air Conditioner System | 1 Phase
Includes Indoor FDU140KXE6F-W | Outdoor FDC140KXZEN1-W
Includes RC-EXZ3A Wired Backlit Controller | High Performance | Bluefin Coated | Reduced Operation Noise
5 Years Manufacturer’s Warranty | Max Pipe length: 50m

$5,491.00

Or own it from $211.19 weekly for 6 months*

Or pay in slices, no interest ever

9.5 x 15.88mm (3/8 x 5/8)> Mitsubishi Heavy Industries Air Conditioning> Mitsubishi Heavy Industries Ducted Air Conditioners> Mitsubishi Heavy Industries FDU Series KX 1:1 High Static Ducted Air Condirtioner

CAPACITY				14.0KW
Indoor				FDU140KXE6F-W
Outdoor				FDC140KXZEN1-W
Power Source (Outdoor Unit)				1 Phase 240V 50Hz
*Operation Data	Nominal Capacity Range	Cooling T1	kW	14
		Heating H1		14
	Power Consumption (Indoor Unit)	Cooling T1		0.36
		Heating H1		0.36
	Power Consumption (Outdoor Unit)	Cooling T1		4
		Heating H1		3.52
	Running Current (Indoor Unit)	Cooling T1	A	2.2
		Heating H1		2.2
	Running Current (Outdoor Unit)	Cooling T1		16.8
		Heating H1		14.8
	Inrush Current, Maximum Current			5, 23
	Sound Pressure Level (JS C9612)	Indoor	dB(A)	P-Hi:41 Hi:37 Me:34 Lo:28
		Outdoor		54
External Dimensions (HXWXD)		Indoor	mm	280×1368×740
		Outdoor		845x970x370
Net Weight		Indoor	kg	54
		Outdoor		85
Supply Air Connection			mm	170 x 1200
Return Air Connection				235 x 1280
External Static Pressure (Max)			Pa	200
Airflow		Indoor (Cooling)	l/s	P-Hi:650 Hi:533 Me:433 Lo:333
		Indoor (Heating)
Refrigerant (Type, Amount, Pre-charge Length)		Quantity	kg	(R32) 4.2
		Pre Charged To Pipe Length	m	30**
Installation Data	Refrigerant Piping	Liquid Line	mm	Ø9.52
		Gas Line		Ø15.88
	Connection Method			Flare Connection
	Maximum Pipe Length (One Way)		m	50
	Max vertical height diff. between O.U. and I.U.			30 ( O.U. above I.U. ) / 15 ( O.U. below I.U. )
Controller				RC-E5, RC-EXZ3A, RCH-E3 or RCN-KIT4-E2
Motion Sensor (Optional)				LB-KIT2
Demand response (AS4755)				No
Outdoor air temperature (upper, lower limits)		Cooling	oC	-15 to 43
		Heating		-20 to 20

The KX1:1 series of ducted air-conditioning systems are quiet yet powerful. Ranging from 9.0kW up to 28.0kW, the KX1:1 series of ducted systems incorporates a range of convenient features and functions including automatic mode, high power mode, silent mode and a range of timer and scheduling functions making them the perfect climate solution for any Australian home.

POWER: Single Phase & Three Phase | AVAILABLE IN: Reverse Cycle

CAPACITIES: 9.0kW | 11.2kW | 14.0kW | 15.2kW | 22.4kW | 28.0kW

Key features

High performance
Durable and robust design
Bluefin coated components for increased weather protection
Low profile indoor units
Reduced operation noise

Mitsubishi Heavy Industries FDU140KXE6F-W / FDC140KXZEN1-W 14.0kW KX 1:1 High Static Ducted Air Conditioner System | 1 Phase – Brochure

$5,491.00
