Mitsubishi Heavy Industries FDU140AVSXWVH 14kW Slimline Ducted Air Conditioner System | Three Phase
14 kW Cooling | 16 kW Heating
Mitsubishi Heavy Industries FDU140AVSXWVH 14kW Slimline Ducted Air Conditioner System | Three Phase

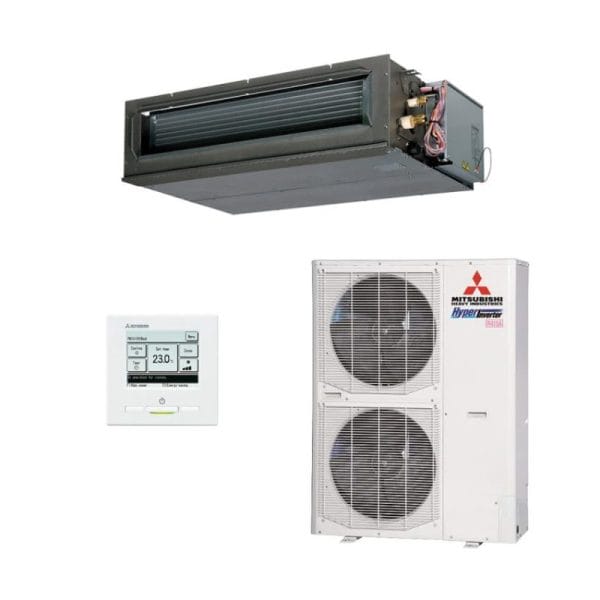

Includes Indoor: FDU140VH Outdoor: FDCA140VSX-W
Includes RC-EXZ3A Wired Controller – Slimline Medium / High Static Ducted
Dry Operation to reduce Humidity | Silent Operation | Slimline design
5 Years Manufacturer’s Warranty | 30m Precharged and 100m max pipe length
| 14.0 KW | ||||
| Set | FDU140AVSXWVH | |||
| Indoor | FDU140VH | |||
| Outdoor | FDCA140VSX-W | |||
| Power Source (Outdoor Unit) | 3 Phase 380-415V 50Hz | |||
|
*Operation Data |
Nominal Capacity Range |
Cooling T1 |
kW |
14.0 (3.5-16.0) |
| Heating H1 | 16.0 (2.7-20.0) | |||
| Heating H2 | 15.50 | |||
|
Power Consumption |
Cooling T1 | 4.22 | ||
| Heating H1 | 4.22 | |||
| Max Power Consumption | 8.90 | |||
|
Running Current |
Cooling T1 |
A |
6.7 | |
| Heating H1 | 6.8 | |||
| Inrush Current, Maximum Current | 5, 17 | |||
| EER | Cooling T1 | 3.32 | ||
| COP | Heating H1 | 3.79 | ||
| Sound Power Level (JS C9612) | Outdoor |
dB(A) |
71 | |
| Sound Pressure Level (JS C9612) | Indoor | P-Hi:47 Hi:40 Me:35 Lo:30 | ||
| Outdoor | 54 | |||
|
External Dimensions (HXWXD) |
Indoor |
mm |
280×1370×740 | |
| Outdoor | 1300x970x370 | |||
|
Net Weight |
Indoor |
Kg |
54 | |
| Outdoor | 99 | |||
| Supply Air Connection |
mm |
170×1200 | ||
| Return Air Connection | 235×1280 | |||
| External Static Pressure (Max) | Pa | 200 | ||
| Airflow | Indoor (Cooling) | l/s | P-Hi:800 Hi:583 Me:467 Lo:367 | |
| Indoor (Heating) | ||||
|
Refrigerant (Type, Amount, Pre-charge Length) |
Quantity | kg | (R32) 4.0 | |
| Pre Charged To Pipe
Length |
m | 30 | ||
|
Installation Data |
Refrigerant Piping |
Liquid Line |
mm |
Ø9.52 |
| Gas Line | Ø15.88 | |||
| Connection Method | Flare Connection | |||
| Maximum Pipe Length (One Way) |
m |
100 | ||
|
Max vertical height diff. between O.U. and I.U. |
50 ( O.U. above I.U. ) / 15 ( O.U. below I.U. ) |
|||
| Controller | RC-E5, RC-EXZ3A, RCH-E3 or RCN-KIT4-E2 | |||
| Motion Sensor (Optional) | LB-KIT2 | |||
| Demand response (AS4755) | Yes | |||
| Outdoor air temperature (upper, lower limits) | Cooling |
oC |
-15 to 50 | |
| Heating | -20 to 20 | |||
The FDU series of ducted air conditioning systems are a quiet and discreet climate solution for your entire home. Ranging from 7.1kW up to 14kW, the FDU series incorporates a compact design, a range of convenient features and functions including high power mode, silent mode and several timer and scheduling functions.
POWER: Single Phase & Three Phase | AVAILABLE IN: Reverse Cycle
CAPACITIES: 7.1kW | 10.0kW | 12.1kW |12.5kW | 14.0kW
Key features
- Slimline design
- High Power Mode for rapid cooling and heating
- Weekly & Sleep timers
- Silent operation
- Dry operation to reduce humidity
INCREASED ENERGY EFFICIENCY
SPLITTABLE INDOOR UNIT
QUIET OPERATION
BUILT-IN DRAIN PUMP
Description
14 kW Cooling
16 kW Heating
Slimline design | Silent Operation
