Mitsubishi Heavy Industries FDU125VNPWVH 12.1kW Slimline Ducted Air Conditioner System | 1 Phase
12.1 kW Cooling | 12.1 kW Heating | 1 Phase

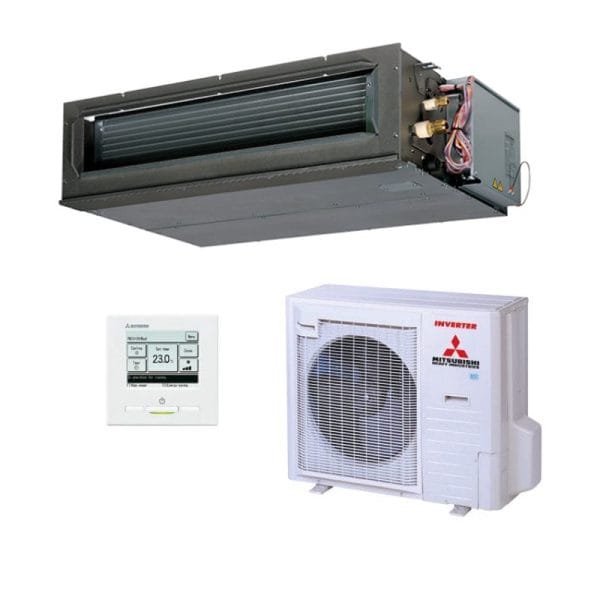

Mitsubishi Heavy Industries FDU125VNPWVH 12.1kW Slimline Ducted System Air Conditioner
Indoor FDU125VH | Outdoor FDCA125VNP-W
Includes RC-EXZ3A Wired Controller | Dry Operation to reduce Humidity | Silent Operation
5 Years Manufacturer’s Warranty | 15m Pre charged and 30m max pipe length
- 7.1kW
- 10kW Small Outdoor
- 10kW
- 12.1kW Small Outdoor
- 12.5kW
- 14kW
| CAPACITY | 12.1 KW | |||
| Set | FDU125AVNPWVH | |||
| Indoor | FDU125VH | |||
| Outdoor | FDCA125VNP-W | |||
| Power Source (Outdoor Unit) | 1 Phase 240V 50Hz | |||
|
*Operation Data
|
Nominal Capacity Range
|
Cooling T1 |
kW
|
12.1 (5.0-12.1) |
| Heating H1 | 12.1 (4.0-13.3) | |||
| Heating H2 | 7.9 | |||
|
Power Consumption
|
Cooling T1 | 3.85 | ||
| Heating H1 | 3.28 | |||
| Max Power Consumption | 4.75 | |||
|
Running Current
|
Cooling T1 |
A
|
16.2 | |
| Heating H1 | 13.8 | |||
| Inrush Current, Maximum Current | 5, 20 | |||
| EER | Cooling T1 | 3.14 | ||
| COP | Heating H1 | 3.69 | ||
| Sound Power Level (JS C9612) | Outdoor |
dB(A)
|
73 | |
|
Sound Pressure Level (JS C9612)
|
Indoor | P-Hi:45 Hi:40 Me:34 Lo:29 | ||
| Outdoor | 57 | |||
|
External Dimensions (HXWXD)
|
Indoor |
mm
|
280×1370×740 | |
| Outdoor | 845x970x370 | |||
|
Net Weight
|
Indoor |
Kg
|
54 | |
| Outdoor | 73 | |||
| Supply Air Connection |
mm
|
170×1200 | ||
| Return Air Connection | 235×1280 | |||
| External Static Pressure (Max) | Pa | 200 | ||
|
Airflow
|
Indoor (Cooling) |
l/s
|
P-Hi:650 Hi:533 Me:433 Lo:333
|
|
| Indoor (Heating) | ||||
|
Refrigerant (R32)
|
Quantity | kg | 2.25 | |
| Pre Charged To Pipe Length |
m | 15 | ||
|
Installation Data
|
Refrigerant Piping
|
Liquid Line |
mm
|
Ø9.52 |
| Gas Line | Ø15.88 | |||
| Connection Method | Flare Connection | |||
| Maximum Pipe Length (One Way) |
m
|
30 | ||
| Max vertical height diff. between O.U. and I.U. | 20 (O.U. above I.U.) / 20 (O.U. below I.U) |
|||
| Controller | RC-E5, RC-EXZ3A, RCH-E3 or RCN-KIT4-E2 | |||
| Motion Sensor (Optional) | LB-KIT2 | |||
| Demand response (AS4755) | Yes | |||
|
Outdoor air temperature (upper, lower limits)
|
Cooling |
oC
|
-15 to 46 | |
| Heating | -15 to 20 | |||
The FDU series of ducted air conditioning systems are a quiet and discreet climate solution for your entire home. Ranging from 7.1kW up to 14kW, the FDU series incorporates a compact design, a range of convenient features and functions including high power mode, silent mode and several timer and scheduling functions.
POWER: Single Phase & Three Phase | AVAILABLE IN: Reverse Cycle
CAPACITIES: 7.1kW | 10.0kW | 12.1kW |12.5kW | 14.0kW
Key features
- Slimline design
- High Power Mode for rapid cooling and heating
- Weekly & Sleep timers
- Silent operation
- Dry operation to reduce humidity
INCREASED ENERGY EFFICIENCY
SPLITTABLE INDOOR UNIT
QUIET OPERATION
BUILT-IN DRAIN PUMP
Description
12.1 kW Cooling
12.1 kW Heating
Slimline design | Silent Operation
