Mitsubishi Heavy Industries FDU125AVSXWVH 12.5kW Slimline Ducted Air Conditioner System - Three Phase

Mitsubishi Heavy Industries FDU125AVSXWVH 12.5kW Slimline Ducted Air Conditioner System | Three Phase

SKU: FDU125AVSXWVH / FDU125VH / FDCA125VSX-W / RC-EXZ3A

12.5 kW Cooling | 14.0 kW Heating
Mitsubishi Heavy Industries FDU125AVSXWVH 12.5kW Slimline Ducted Air Conditioner System | Three Phase

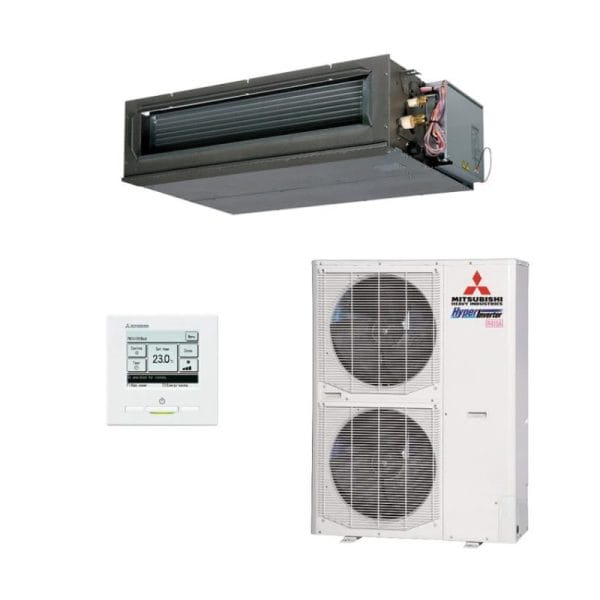

Includes Indoor: FDU125VH Outdoor: FDCA125VSX-W
Includes RC-EXZ3A Wired Controller – Slimline Medium / High Static Ducted
Dry Operation to reduce Humidity | Silent Operation | Slimline design
5 Years Manufacturer’s Warranty | 30m Precharged and 100m max pipe length


$4,892.00

Or own it from $188.15 weekly for 6 months* zip money
Or pay in slices, no interest ever
> > > > >
CAPACITY 12.5 KW
Set FDU125AVSXWVH
Indoor FDU125VH
Outdoor FDCA125VSX-W
Power Source (Outdoor Unit) 3 Phase 380-415V 50Hz


















*Operation Data



Nominal Capacity Range

 Cooling T1





kW

 12.5 (3.5-14.0)
Heating H1 14.0 (2.7-18.0)
Heating H2 13.10


Power Consumption

 Cooling T1 3.49
Heating H1 3.61
Max Power Consumption 8.90


Running Current

 Cooling T1

A

 5.6
Heating H1 5.9
Inrush Current, Maximum Current 5, 16
EER Cooling T1 3.58
COP Heating H1 3.88
Sound Power Level (JS C9612) Outdoor



dB(A)

 70
Sound Pressure Level (JS C9612) Indoor P-Hi:45 Hi:40 Me:34 Lo:29
Outdoor 54


External Dimensions (HXWXD)

 Indoor

mm

 280×1370×740
Outdoor 1300x970x370


Net Weight

 Indoor

Kg

 54
Outdoor 99
Supply Air Connection

mm

 170×1200
Return Air Connection 235×1280
External Static Pressure (Max) Pa 200
Airflow Indoor (Cooling) l/s P-Hi:650 Hi:533 Me:433 Lo:333
Indoor (Heating)


Refrigerant (Type, Amount, Pre-charge Length)

 Quantity kg (R32) 4.0
Pre Charged To Pipe

Length

 m 30






Installation Data



Refrigerant Piping

 Liquid Line

mm

 Ø9.52
Gas Line Ø15.88
Connection Method Flare Connection
Maximum Pipe Length (One Way)

m

 100


Max vertical height diff. between O.U. and I.U.



50 ( O.U. above I.U. ) / 15 ( O.U. below I.U. )
Controller RC-E5, RC-EXZ3A, RCH-E3 or RCN-KIT4-E2
Motion Sensor (Optional) LB-KIT2
Demand response (AS4755) No
Outdoor air temperature (upper, lower limits) Cooling

oC

 -15 to 50
Heating -20 to 20

The FDU series of ducted air conditioning systems are a quiet and discreet climate solution for your entire home. Ranging from 7.1kW up to 14kW, the FDU series incorporates a compact design, a range of convenient features and functions including high power mode, silent mode and several timer and scheduling functions.

POWER: Single Phase & Three Phase  | AVAILABLE IN: Reverse Cycle

CAPACITIES: 7.1kW | 10.0kW | 12.1kW |12.5kW | 14.0kW

Key features

  • Slimline design
  • High Power Mode for rapid cooling and heating
  • Weekly & Sleep timers
  • Silent operation
  • Dry operation to reduce humidity
