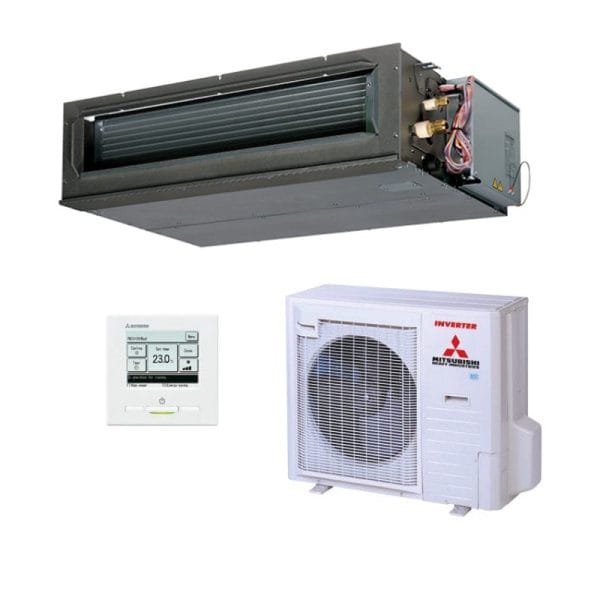

Mitsubishi Heavy Industries FDU100AVNPWVH 10.0kW Slimline Ducted Air Conditioner System | Single Phase

SKU: FDU100AVNPWVH / FDU10VH / FDCA10VNP-W / RC-EXZ3A

10.0 kW Cooling | 10.0 kW Heating
Mitsubishi Heavy Industries FDU100AVNPWVH 10.0kW Slimline Ducted System | Single Phase
Includes Indoor: FDU100VH Outdoor: FDCA100VNP-W
Includes RC-EXZ3A Wired Controller – **Reducer set 9.52 to 6.35 is included in the outdoor.
Slimline Medium / High Static Ducted | Dry Operation to reduce Humidity | Silent Operation | Slimline design
5 Years Manufacturer’s Warranty | 15m Precharged and 30m max pipe length


$3,336.00

Or own it from $128.31 weekly for 6 months* zip money
Or pay in slices, no interest ever
> > > > >
CAPACITY 10.0KW
Set FDU100AVNPWVH
Indoor FDU100VH
Outdoor FDCA100VNP-W
Power Source (Outdoor Unit) 1 Phase 240V 50Hz
*Operation Data
Nominal Capacity Range
 Cooling T1
kW
 10 (2.1-10.2)
Heating H1 10 (1.7-10.4)
Heating H2 7.6
Power Consumption
 Cooling T1 3.08
Heating H1 2.45
Max Power Consumption 4.46
Running Current
 Cooling T1
A
 13.1
Heating H1 10.4
Inrush Current, Maximum Current 5, 19
EER Cooling T1
3.25
COP Heating H1 4.08
Sound Power Level (JS C9612) Outdoor
dB(A)
 68
Sound Pressure Level (JS C9612)
 Indoor P-Hi: 44 Hi: 38
Me: 36 Lo: 30
Outdoor 56
External Dimensions (HXWXD)
 Indoor
mm
 280x1370x740
Outdoor 750×880(+88)x340
Net Weight
 Indoor
Kg
 54
Outdoor 57
Supply Air Connection
mm
 170×1200
Return Air Connection 235×1280
External Static Pressure (Max) Pa 200
Airflow
 Indoor (Cooling)
l/s
P-Hi:600 Hi:467 Me:417 Lo:317
Indoor (Heating)
Refrigerant (R32)
 Quantity kg 1.7
Pre Charged To
Pipe Length		 m 15
Installation Data
Refrigerant Piping
 Liquid Line
mm
 Ø6.35**

**Reducer set 9.52 to 6.35 is included in the outdoor.
Gas Line Ø15.88
Connection Method Flare Connection
Maximum Pipe Length (One Way)
m
 30
Max vertical height diff. between O.U. and I.U. 20 (O.U. above I.U.) /
20 (O.U. below I.U)
Controller RC-E5, RC-EXZ3A, RCH-E3 or RCN-KIT4-E2
Motion Sensor (Optional) LB-KIT2
Demand response (AS4755) Yes
Outdoor air temperature (upper, lower limits)
 Cooling
oC
 -15 to 46
Heating -15 to 20

The FDU series of ducted air conditioning systems are a quiet and discreet climate solution for your entire home. Ranging from 7.1kW up to 14kW, the FDU series incorporates a compact design, a range of convenient features and functions including high power mode, silent mode and several timer and scheduling functions.

POWER: Single Phase & Three Phase  | AVAILABLE IN: Reverse Cycle

CAPACITIES: 7.1kW | 10.0kW | 12.1kW |12.5kW | 14.0kW

Key features

  • Slimline design
  • High Power Mode for rapid cooling and heating
  • Weekly & Sleep timers
  • Silent operation
  • Dry operation to reduce humidity

Mitsubishi Heavy Industries FDU100AVNPWVH 10.0kW Slimline Ducted System | Single Phase – Brochure

subishi Heavy Industries FDU100AVNPWVH 10.0kW Slimline Ducted Air Conditioner System - Single Phase-with-indoor
$3,336.00

Mitsubishi Heavy Industries FDU100AVNPWVH 10.0kW Slimline Ducted Air Conditioner System | Single Phase
INSULATED PAIRED COPPER PIPE 6.35 x 15.88mm -1-4 x 5-8- 20 Meters length
$410.00

INSULATED PAIRED COPPER PIPE 6.35 x 15.88mm (1/4 x 5/8) 20 Meters length – Shipping Included
$468.00

Mitsubishi Heavy Industries WIFI ADAPTOR MH-RC-WIFI-1B
$4,214.00 Bundle Price for Selected items

Description

10.0 kW Cooling
10.0 kW Heating

Slimline design | Silent Operation
