Mitsubishi Heavy Industries FDE100AVNPWVH 10kW Ceiling Suspended Air Conditioner | Single Phase
10.0 kW Cooling | 10.0 kW Heating

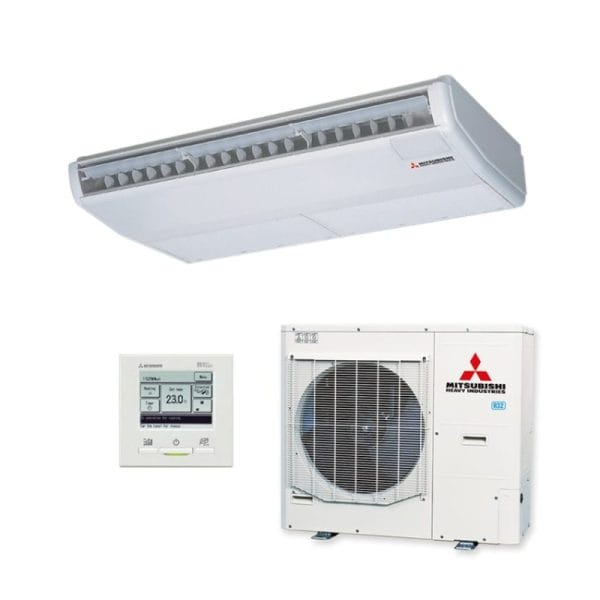

Mitsubishi Heavy Industries FDE100AVNPWVH 10kW Ceiling Suspended Air Conditioner | Single Phase
Includes Indoor FDE100VH | Outdoor FDCA100VNP-W
Includes RC-EXZ3A Wired Controller | Quiet Operation | High Power Mode
5 Years Manufacturer’s Warranty | Max Pipe length: 30m
*Reducer set @9.52 -> @6.35 is included in the outdoor unit as accessory for FDCA100VNP-W.
| CAPACITY | 10.0kW | |||
| Set | FDE100AVNPWVH | |||
| Indoor | FDE100VH | |||
| Outdoor | FDCA100VNP-W | |||
| Power Source (Outdoor Unit) | 1 Phase 240V 50Hz | |||
|
*Operation Data
|
Nominal Capacity (Range)
|
Cooling T1 |
kW
|
10 (2.1 -10.2) |
| Heating H1 | 10 (1.7 – 10.4) | |||
| Heating H2 | 7.6 | |||
|
Power Consumption
|
Cooling T1 | 3 | ||
| Heating H1 | 2.36 | |||
| Maximum Power Consumption | 4.46 | |||
|
Running Current
|
Cooling T1 |
A
|
12.8 | |
| Heating H1 | 10.1 | |||
| Inrush Current, Maximum Current | 5, 19 | |||
| EER | Cooling T1 | 3.33 | ||
| COP | Heating H1 | 4.24 | ||
| Sound Power Level (JIS C9612) | Outdoor |
dB(A)
|
68 | |
|
Sound Pressure Level (JIS C9612)
|
Indoor | P-Hi: 48 Hi: 43 Me: 38 Lo: 34 |
||
| Outdoor | 56 | |||
|
External dimensions (HXWXD)
|
Indoor |
mm
|
250x1620x690 | |
| Outdoor | 750×880(+88)×340 | |||
|
Net weight
|
Indoor |
kg
|
43 | |
| Outdoor | 57 | |||
|
Airflow
|
Cooling (Indoor) |
l/s
|
P-Hi:533 Hi:433 Me:350 Lo:275
|
|
| Heating (Indoor) | ||||
|
Installation Data
|
Refrigerant (R32)
|
Quantity | kg | 1.7 |
| Pre-Charged to Pipe | m | 15 | ||
|
Refrigerant Piping
|
Liquid Line |
mm
|
**Ø6.35 | |
| Gas Line | Ø15.88 | |||
| Connection Method | Flare Connection | |||
| Maximum Pipe Length (One Way) |
m
|
30 | ||
| Max Vertical Height Diff. Between O.U. and I.U. | ||||
| Controller | RC-E5, RC-EXZ3A, RCH-E3 or RCN-E-E3 | |||
| Motion Sensor (Optional) | LB-E | |||
| Demand Response (AS4755) | Yes | |||
|
Outdoor air temperature (upper, lower limits)
|
Cooling |
oC
|
-15 to 46 | |
| Heating | -15 to 20 | |||
The FDE series of ceiling suspended systems offer a versatile solution for commercial spaces with limited floor or ceiling space such as restaurants, cafes and retail spaces.
With a reduction in weight and improved component design, the FDE series boasts easier installation, higher energy efficiency and quieter operation.
POWER: Single Phase & Three Phase | AVAILABLE IN: Reverse Cycle
CAPACITIES: 7.1kW | 10.0kW | 12.1kW | 12.5kW | 14.0kW
Key features
- Quiet operation
- Various timer functions for convenience
- High Power mode for rapid cooling/heating
Description
10.0 kW Cooling
10.0 kW Heating
Quiet Operation | High Power Mode
