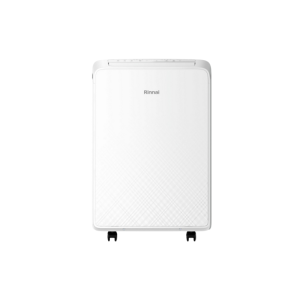

Rinnai RPC34MCWF 3.4kW Portable Air Conditioner Cooling Only
1 × $975.00 Subtotal: $3,240.00
3.3kW Cooling | 3.8kW Heating

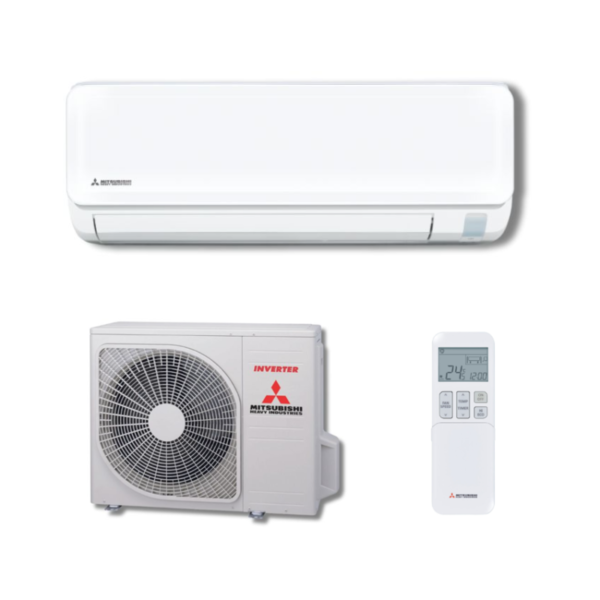

Mitsubishi Heavy Industries Ciara DXK07ZTLA-WF-Set 2.0KW Inverter Split System Air Conditioner
Indoor: DXK12ZTLA-WF | Outdoor : DXC12ZTLA-W | System: DXK12ZTLA-WF-Set
5 years manufacturer’s warranty
Includes Wireless Controller
Includes WIFI Built-in
| CAPACITY | 3.3kW | |||
| Indoor | DXK12ZTLA-WF | |||
| Outdoor | DXC12ZTLA-W | |||
| Power Source (Outdoor Unit) | 1 Phase, 220 – 240V, 50Hz | |||
|
*Operation Data
|
Nominal Capacity (Range)
|
Cooling T1 |
kW
|
3.3 (0.8~3.7) |
| Heating H1 | 3.8 (1.0~4.9) | |||
| Heating H2 | 3.9 | |||
|
Power Consumption
|
Cooling T1 | 0.90 (0.19~1.30) | ||
| Heating H1 | 0.90 (0.21~1.50) | |||
| Maximum Power Consumption | 1.65 | |||
|
Running Current
|
Cooling T1 |
A
|
4.1 | |
| Heating H1 | 4.1 | |||
| Inrush Current, Maximum Current | 4.9, 9.0 | |||
| EER | Cooling T1 | 3.67 | ||
| COP | Heating H1 | 4.22 | ||
| Sound Power Level (JIS C9612) | Outdoor |
dB(A)
|
61 | |
|
Sound Pressure Level (JIS C9612)
|
Indoor | 45-37-27-22 | ||
| Outdoor | 50 | |||
|
Energy Label (GEMS 2019)
|
Hot
|
Cooling | -4 | |
| Heating | -3.5 | |||
|
Average
|
Cooling | -3 | ||
| Heating | -3 | |||
|
Cold
|
Cooling | -3 | ||
| Heating | -2.5 | |||
|
External dimensions (HXWXD)
|
Indoor |
mm
|
294x798x210 | |
| Outdoor | 540×645(+57)x275 | |||
|
Net weight
|
Indoor |
kg
|
9 | |
| Outdoor | 24 | |||
|
Airflow
|
Cooling (Indoor) |
l/s
|
187-142-90-73 | |
| Heating (Indoor) | 197-163-113-83 | |||
|
Installation Data
|
Refrigerant (Type, Amount, Pre-charge Length)
|
Quantity | kg | (R32) 0.59 |
| Pre-Charged to Pipe | m | 10 | ||
|
Refrigerant Piping
|
Liquid line |
mm
|
Ø6.35 | |
| Gas line | Ø9.52 | |||
| Connection Method | Flare connection | |||
| Maximum Pipe Length (One Way) |
m
|
20 | ||
| Max Vertical Height Diff. Between O.U. and I.U. | 15 ( O.U. above I.U. ) / 15 ( O.U. below I.U. ) | |||
| Standard accessories | Allergen Clear Filter x 1, Wi-Fi | |||
| Optional parts | Interface kit (SC-BIKN2-E) / Photocatalytic Washable Deodorizing Filter | |||
| Demand Response (AS4755) | No | |||
BUILT-IN WI-FI
Wi-Fi & voice control compatibility now includ- ed as standard*. Control your air-conditioner anywhere, anytime with your smartphone.
BACKLIT REMOTE CONTROL
Easy to use remote with backlit screen for dark/night time operation. Accurate tempera- ture control via 0.5°C increments.
SILENT MODES
Two levels of silent mode are available to further reduce the outdoor unit noise level.
COMPACT DESIGN
A compact and lightweight design allows for improved installation flexibility and installation into smaller spaces such as apartments.
3.3 kW Cooling
3.8 kW Heating
Built In WIFI & Voice Control
