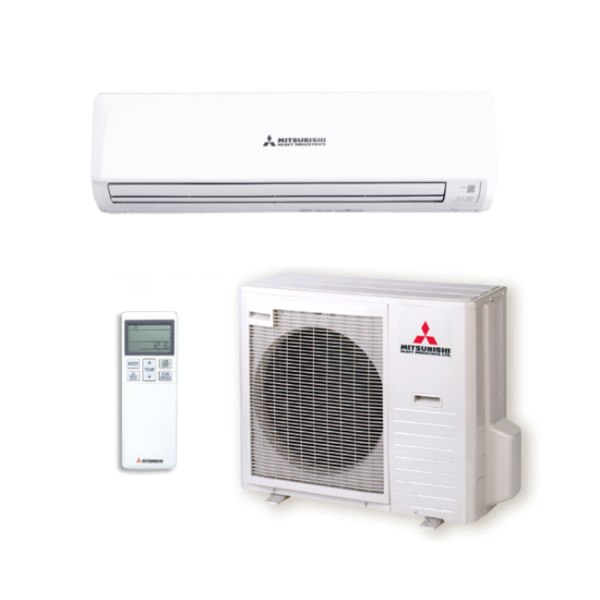

CAPACITY | 9.5kW | |||
Indoor | DXK33ZRA-W | |||
Outdoor | DXC33ZRA-W | |||
Power Source (Outdoor Unit) | 1 Phase 240V 50Hz | |||
*Operation Data
|
Nominal Capacity (Range)
|
Cooling T1 |
kW
|
9.5 (2.5~10.6) |
Heating H1 | 10.3 (3.2 ~11.9) | |||
Heating H2 | 9.6 | |||
Power Consumption
|
Cooling T1 | 2.56 (0.5-3.2) | ||
Heating H1 | 2.64 (0.6-3.7) | |||
Maximum Power Consumption | 3.8 | |||
Running Current
|
Cooling T1 |
A
|
10.8 | |
Heating H1 | 11.1 | |||
Inrush Current, Maximum Current | 11.1, 17.5 | |||
EER | Cooling T1 | 3.71 | ||
COP | Heating H1 | 3.9 | ||
Sound Power Level (JIS C9612) |
Outdoor |
dB(A)
|
69 | |
Sound Pressure Level (JIS C9612)
|
Indoor | 48-45-40-26 | ||
Outdoor | 57 | |||
Energy Label (GEMS 2019)
|
Hot
|
Cooling | -3.5 | |
Heating | -3 | |||
Average
|
Cooling | -3 | ||
Heating | -2.5 | |||
Cold
|
Cooling | -3.5 | ||
Heating | -2 | |||
External dimensions (HXWXD)
|
Indoor |
mm
|
339x1197x262 | |
Outdoor | 845×970(+89)x370 | |||
Net weight
|
Indoor |
kg
|
16.5 | |
Outdoor | 70.5 | |||
Airflow
|
Cooling (Indoor) |
l/s
|
408-355-293-173 | |
Heating (Indoor) | 458-386-318-227 | |||
Installation Data
|
Refrigerant (Type, Amount, Pre-charge Length)
|
Quantity | kg | (R32) 2.0 |
Pre-Charged to Pipe | m | 15 | ||
Refrigerant Piping
|
Liquid line |
mm
|
Ø9.52 | |
Gas line | Ø15.88 | |||
Connection Method | Flare connection | |||
Maximum Pipe Length (One Way) |
m
|
30 | ||
Max Vertical Height Diff. Between O.U. and I.U. |
20 ( O.U. above I.U. ) / 20 ( O.U. below I.U. ) | |||
Standard accessories | Allergen Clear & Photocatalytic Washable Deodorizing Filter | |||
Optional parts | Interface kit (SC-BIKN2-E) / Wi-Fi Kit | |||
Demand Response (AS4755) | Yes |
