Mitsubishi Heavy Industries Bronte SRK100AVSAWZR 10.0kW Reverse Cycle Split System Air Conditioner | 3 Phase
10.0 kW Cooling | 11.2 kW Heating
Clean & Jet Air Technology

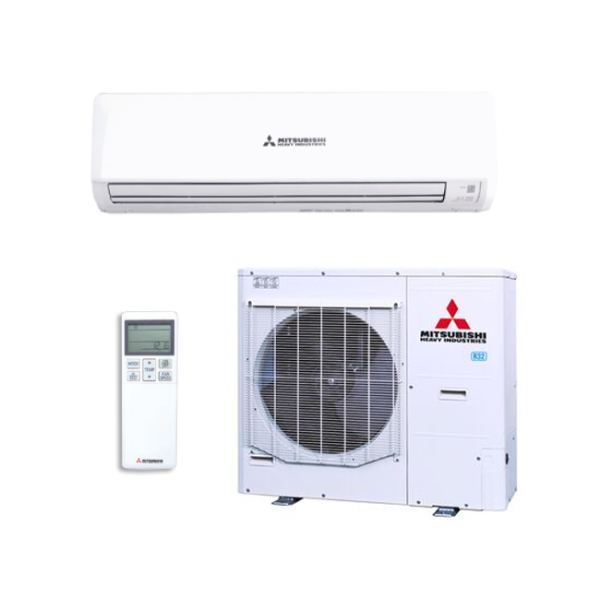

MITSUBISHI HEAVY INDUSTRIES Bronte SRK100AVSAWZR 10.0kW Reverse Cycle Split System Air Conditioner | 3 Phase
Includes Indoor SRK100ZR-W | Outdoor FDCA100VSA-W
Wireless Remote
| CAPACITY | 10.0kW | ||||
| Indoor | SRK100ZR-W | ||||
| Outdoor | FDCA100VSA-W | ||||
| Power Source (Outdoor Unit) | 3 Phase 380-415V 50Hz | ||||
|
*Operation Data |
Nominal Capacity (Range) |
Cooling T1 |
kW |
10.0 (4.0~11.2) | |
| Heating H1 | 11.2 (4.0 ~12.5) | ||||
| Heating H2 | 7.7 | ||||
| Power Consumption | Cooling T1 | 3.19 | |||
| Heating H1 | 3.04 | ||||
| Maximum Power Consumption | 10.20 | ||||
| Running Current | Cooling T1 |
A |
4.8 | ||
| Heating H1 | 4.6 | ||||
| Inrush Current, Maximum Current | 5, 15 | ||||
| EER | Cooling T1 | 3.13 | |||
| COP | Heating H1 | 3.68 | |||
| Sound Power Level
(JIS C9612) |
Outdoor |
dB(A) |
69 | ||
| Sound Pressure Level (JIS C9612) | Indoor | 48-45-40-27 | |||
| Outdoor | 54 | ||||
|
Energy Label (GEMS 2019) |
Hot | Cooling |
Stars |
(3) | |
| Heating | (2.5) | ||||
| Average | Cooling | (2.5) | |||
| Heating | (1.5) | ||||
| Cold | Cooling | (3) | |||
| Heating | (1) | ||||
| External dimensions (HXWXD) | Indoor | mm | 339x1197x262 | ||
| Outdoor | 845x970x370 | ||||
| Net weight | Indoor | kg | 16.5 | ||
| Outdoor | 78 | ||||
| Airflow | Cooling (Indoor) | l/s | 408-355-293-173 | ||
| Heating (Indoor) | 458-386-318-227 | ||||
|
Installation Data |
Refrigerant (Type, Amount, Pre-charge Length) | Quantity | kg | (R32) 3.3 | |
| Pre-Charged to Pipe | m | 30 | |||
| Refrigerant Piping | Liquid line | mm | Ø9.52 | ||
| Gas line | Ø15.88 | ||||
| Connection Method | Flare connection | ||||
| Maximum Pipe Length (One Way) |
m |
50 | |||
| Max Vertical Height Diff. Between
O.U. and I.U. |
50 ( O.U above I.U ) / 15 ( O.U below I.U ) | ||||
| Standard accessories | Allergen Clear & Photocatalytic Washable Deodorizing Filter | ||||
| Optional parts | Interface kit (SC-BIKN2-E) / Wi-Fi Kit | ||||
| Demand Response (AS4755) | Yes | ||||
Description
10.0 kW Cooling
11.2 kW Heating
