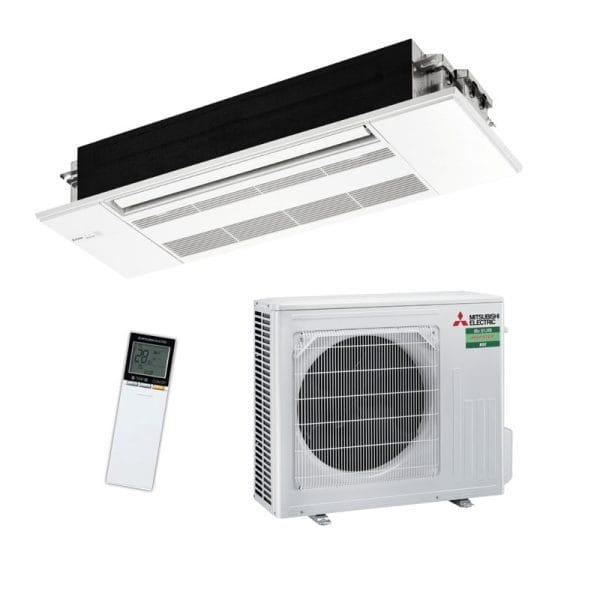

MITSUBISHI ELECTRIC MLZKP50VGKIT 5.0kW One Way Cassette Split System Air Conditioner

• Capacity Range: 2.5 kW – 5.0 kW
• 1-way airflow
• Slimline Design – only 185 mm high
• Anti-Allergy Enzyme Filter (Optional)
• Auto Vane Control
• Horizontal Airflow

Designed to suit modern interiors, the MLZ-KP Series 1 way ceiling cassette air conditioner delivers quiet, efficient comfort in a low-profile design. Its slimline form fits neatly into tight ceiling spaces, offering reliable performance without compromising room layout or aesthetics—ideal for homes with limited wall space.

Sleek, Slimline Design
At just 185mm in height, the MLZ Series is the perfect solution for low ceiling cavities, whilst the flat, natural white finish provides a sleek and discreet installation. The unit is designed to fit between standard 450mm centred joists.

Auto Vane Control
Outlet vanes can be moved left and right when in Econo Cool mode, and up and down using the remote controller. This improved airflow control feature reduces drafts.

Horizontal Airflow
The airflow control reduces that uncomfortable drafty feeling with the introduction of a horizontal airflow that distributes across the ceiling.

Compact design
The unit is designed to fit between standard 450mm centred joists and the 185mm high slim body design enables installation in restricted ceiling spaces.

Set airflow according to ceiling height
Dual-level airflow selection is engineered to accommodate specific ceiling heights. This is a key feature for adjusting airflow effectively when ceilings are of different heights. *Set by installer.

Weekly timer
The controller features a weekly and 24 hour On/Off timer to set operating times on a daily basis.

Multi system connection
The MLZ-KP Series one-way cassette can be connected to a Mitsubishi Electric MXZ multi-split system or City Multi PUMY-SP and PUMY-P systems. City Multi PUMY-SP and PUMY-P series will require a branch box (up to two branch boxes per system) to connect the MLZ-KP series one-way cassette units.

Optional PAR-CT01MAA MA Touch Remote Controller
The full colour optional touch controller PAR-CT01MAA enables the control of both residential and commercial air conditioning applications. It has a customisable 3.5 inch colour LCD touch panel that makes it easy to use. Available in white or premium black finishes, suitable for any décor.

M-NET ready connection
This product can be controlled alongside Mitsubishi Electric City Multi, Mr Slim, e-Series chillers and other products.

Demand Response Capable
Demand Response mode is activated in response to signals sent from the power distributor at times when it is necessary to reduce peak demand.

Wi-Fi Control
Unlock the door to smarter heating and cooling systems, for total home comfort. This innovative technology connects your Mitsubishi Electric air conditioner to your smartphone, tablet or online account, giving you the freedom to fully control each unit on-the-go via an internet connection from anywhere in the world.
*1 Optional Wi-Fi adapter required per unit. Requires an internet connection and the Wi-Fi Control App downloaded on your smartphone or tablet with the latest operating system available.
*2 To use Amazon Alexa to control your air conditioner you will need an Amazon Alexa Echo device.
*3 To use Google Assistant to control your air conditioner you will need a Google Home Smart speaker.

Other Features

• Designed to fit between standard 450 mm centred joists
• Wi-Fi Control (optional)
• Multi split connection (MXZ or PUMY-SP)
• Demand Response Capable
• Econo Cool
• M-Net Connection (optional)
• Anti Allergy Enzyme (optional)
• Auto Restart
• Auto Fan
• Auto Change Over
• Self-Diagnosis
• Error Recall Function
