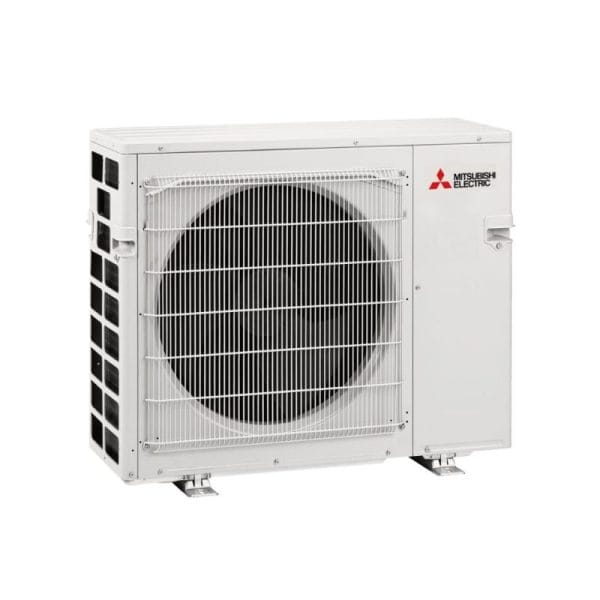

MITSUBISHI ELECTRIC MXZ-5F100VGD-A1 10.0kW Multi Head Split System Outdoor Only

SKU: MXZ-5F100VGD-A1

10.0 kW Cooling | 12.0 kW Heating
MITSUBISHI ELECTRIC MXZ-5F100VGD-A1 10.0kW Multi Head Split System Outdoor Only
2 to 5 Port Multi R32 Outdoor – Part of a Multisystem
Multi Split Guide Compatibility and Capacity Tables
5 Years Manufacturer’s Warranty

$3,569.00

Or own it from $137.27 weekly for 6 months*

Or pay in slices, no interest ever

Mitsubishi Electric Air Conditioning> Mitsubishi Electric Multi Head Split Systems> Multi-Head Split System Air Conditioners> MXZ & PUMY Outdoor Units

Outdoor Unit		MXZ-5F100 VGD-A1
Refrigerant		R32
Precharge Refrigerant		2.4
Power Supply (V, Phase, Hz)		220V, single, 60Hz / 230V, single, 50Hz
Cooling Heating	Capacity [Min-Rated- kW Max] Total Input [Rated] kW AEER/EER Running Current [Rated] A [220V/60Hz – 230V/50Hz]	3.9 – 10.0 – 11.0
		2.84
		3.49/3.52
		13.0 – 12.5
	Sound Pressure Level Out [PWL]	65
	Capacity [Min-Rated- kW Max]	4.1 – 10.0 – 14.0
	Total Input [Rated] kW ACOP/COP Running Current [Rated] A [220V/60Hz – 230V/50Hz]	2.07
		4.78/4.83
		9.5 – 9.1
	Sound Pressure Level Out [PWL]	67
Max. Running Current A		21.4
Breaker Size Outdoor Dimensions [HxWxD]mm		25
Breaker Size Outdoor Dimensions [HxWxD]mm		796 x 950 x 330
Unit Weight kg		62
Piping	Diameter [Gas/Liquid] mm	9.52 x 4 + 12.7 x 1 / 6.35 x 5
Piping	Max. Length m [Total-Each]	80 – 25
Max. Height Guaranteed Operating Range [Outdoor]		15
	Cooling °C	-10 ~ 46
	Heating °C	-15 ~ 24

Capacity: 10.0 kW
Energy efficient
Wi-Fi Control
Quiet operation
Individual Temperature Control for Each Room
Demand Response Capable

The MXZ-5F100VGD 10kW multi split system connects up to five indoor units to a single outdoor system, providing air conditioned comfort across multiple rooms. This 5-port system delivers efficient heating and cooling for properties requiring air conditioning in bedrooms, living areas and studies. You can mix and match different indoor unit styles – including wall-mounted, floor-standing, ceiling cassette and ducted options – to suit each room’s specific requirements while maintaining consistent performance throughout your home.

MITSUBISHI ELECTRIC MXZ-5F100VGD-A1 10.0kW Multi Head Split System Outdoor Only – Brochure
