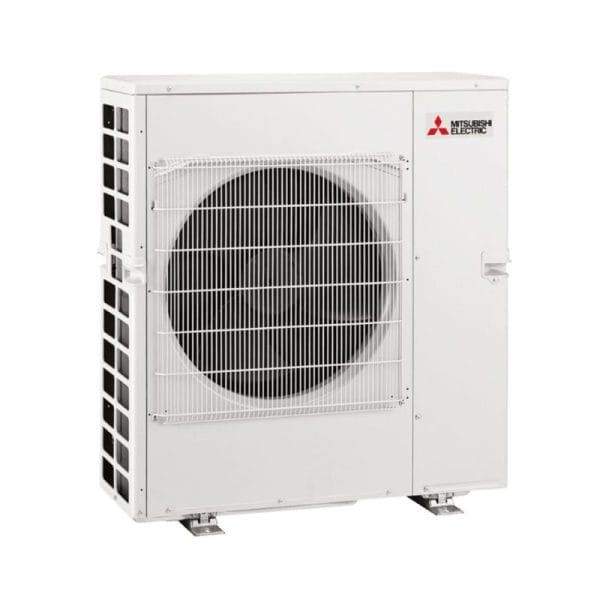

MITSUBISHI ELECTRIC MXZ-6E120VAD2-A1 Multi Head System Outdoor Only
$4,070.00
Product by:
Mitsubishi Electric MXZ-6E120VAD / 2-6 Port Multi Outdoor / 12.0kW Cooling – 13.2kW Heating / Multi Split System Inverter R410A. Condenser Unit Only
Shop with Confidence
- Brand new Australian Stock
- No Factory Seconds
- Full Australian Manufacturer's Warranty
- Authorised Genuine Dealer
- Secure Online Payments
| Model Name | MXZ-6D120VA | |
|---|---|---|
| Type | Inverter | |
| Indoor Unit | [Refer to related products list] | |
| Outdoor Unit | MXZ-6D120VA | |
| Cooling | ||
| Capacity (Rated Conditions) | kW | 12 |
| Capacity (Min – Max) | kW | 3.5 – 13.5 |
| EER (Rated Conditions, see note below) | 3.32 | |
| Sound Pressure Levels – | ||
| Outdoor at 1m (Low – High) | dBA | 51Â – 53 |
| Sound Power Level – Outdoor | dBA | TBA |
| Heating | ||
| Capacity (Rated Conditions) | kW | 13.5 |
| Capacity (Min – Max) | kW | 3.5 – 16.5 |
| COP (Rated Conditions, see note below) | 3.60 | |
| Sound Pressure Levels | ||
| Outdoor at 1m (Low – High) | dBA | 53Â – 57 |
| Sound Power Level – Outdoor | dBA | TBA |
| Outdoor – Dimensions (HxWxD) | mm | 1070 x 900 x 320 |
| Weight – Outdoor | kg | 87 |
| Eletrical Supply | ||
| Breaker Size | A | 32 |
| Piping – max total length | m | 80 |
| max individual circuit | m | 25 |
| max height | m | 15/10* |
| Guaranteed Operating Range | °C | -10 ~ +46 |
| -15Â ~ +24 | ||
* If outdoor unit is installed above indoor units
Note: EER & COP are calculated when max number of indoor units are connected
Description
12.0 kW Cooling
13.2 kW Heating
2 – 6 Port Multi 410a Outdoor
Additional information
| Weight | 98 kg |
|---|
