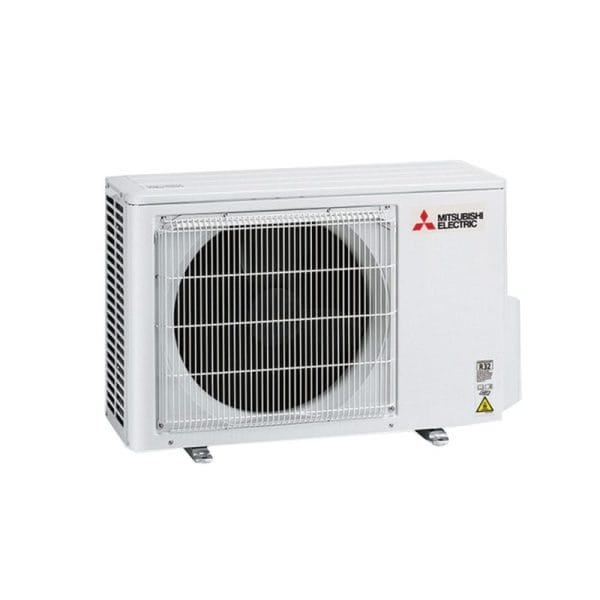

MITSUBISHI ELECTRIC MXZ-2F52VF-A1 5.2kW Multi Head Split System Outdoor Only

SKU: MXZ-2F52VF-A1 / for QLD is MXZ-2F52VGD-A1

5.2 kW Cooling | 6.1 kW Heating
MITSUBISHI ELECTRIC MXZ-2F52VF-A1 5.2kW Multi Head Split System Outdoor Only
2 Port Multi R32 Outdoor – Part of a Multisystem
Multi Split Guide Compatibility and Capacity Tables
5 Years Manufacturer’s Warranty

$1,649.00

Or own it from $63.42 weekly for 6 months*

Or pay in slices, no interest ever

Mitsubishi Electric Air Conditioning> Mitsubishi Electric Multi Head Split System Air Conditioners> Multi-Head Split System Air Conditioners> MXZ & PUMY Outdoor Units

Outdoor Unit		MXZ-2F52 VF-A1
Refrigerant		R32
Precharge Refrigerant		1
Power Supply (V, Phase, Hz)		220V, single, 60Hz / 230V, single, 50Hz
Cooling Heating	Capacity [Min-Rated- kW Max] Total Input [Rated] kW AEER/EER Running Current [Rated] A [220V/60Hz – 230V/50Hz]	1.1 – 5.2 – 5.6
		1.38
		3.72/3.77
		6.5 – 6.3
	Sound Pressure Level Out [PWL]	61
	Capacity [Min-Rated- kW Max]	1.0 – 6.1 – 7.0
	Total Input [Rated] kW ACOP/COP Running Current [Rated] A [220V/60Hz – 230V/50Hz]	1.49
		4.05/4.09
		7.1 – 6.7
	Sound Pressure Level Out [PWL]	63
Max. Running Current A		12.2
Breaker Size Outdoor Dimensions [HxWxD]mm		15
Breaker Size Outdoor Dimensions [HxWxD]mm		550 × 800 × 285
Unit Weight kg		37
Piping	Diameter [Gas/Liquid] mm	9.52 x 2 / 6.35 x 2
Piping	Max. Length m [Total-Each]	30 – 20
Max. Height Guaranteed Operating Range [Outdoor]		15 /10 *1
	Cooling °C	-10 ~ 46
	Heating °C	-15 ~ 24

2-port multi split system

Connect up to two indoor units to a single outdoor unit.

Flexible indoor unit choice

Compatible indoor units range from wall mounted, floor standing, ceiling concealed, ceiling cassettes to ceiling suspended units; offering end-users flexibility, with a wide range of options to satisfy most application requirements.

Wi-Fi Control

Unlock the door to smarter heating and cooling systems, for total home comfort. This innovative technology connects your Mitsubishi Electric air conditioner to your smartphone, tablet or online account, giving you the freedom to fully control each unit on-the-go via an internet connection from anywhere in the world.
*1 Optional Wi-Fi adapter required per unit. Requires an internet connection and the Wi-Fi Control App downloaded on your smartphone or tablet with the latest operating system available.
*2 To use Amazon Alexa to control your air conditioner you will need an Amazon Alexa Echo device.
*3 To use Google Assistant to control your air conditioner you will need a Google Home Smart speaker.

Quiet operation

Thanks to a clever Silent Mode feature, Multi Split Systems are able to operate whilst keeping noise to the minimum. Whilst in operation, the sound levels of outdoor units can remain as low as 46dBA*, which will greatly please both you and your neighbours.
*MXZ-2F52VGD-A1 / MXZ-3F54VGD-A1 in cooling mode. Measured in an Anechoic chamber.

Individual Temperature Control for Each Room

The capability of a Multi Split System lies in the capacity to individually control the temperature of all air conditioner units, even if a combination of different models have been used. Individual air conditioner control allows occupants in different rooms to select a temperature (within the same mode) that suits their needs, without affecting the temperature settings in other rooms. The capacity to individually control each air conditioner unit may also result in savings on your electricity bill, with the ability to turn a single air conditioner unit off when it isn’t required.

Keep Exterior Clutter-Free

Multi Split Systems are conveniently designed to keep the exterior of your home clutter free, with the ability to connect multiple (2-8) indoor air conditioning units to a single outdoor unit.

MITSUBISHI ELECTRIC MXZ-2F52VF-A1 5.2kW Multi Head Split System Outdoor Only – Brochure
