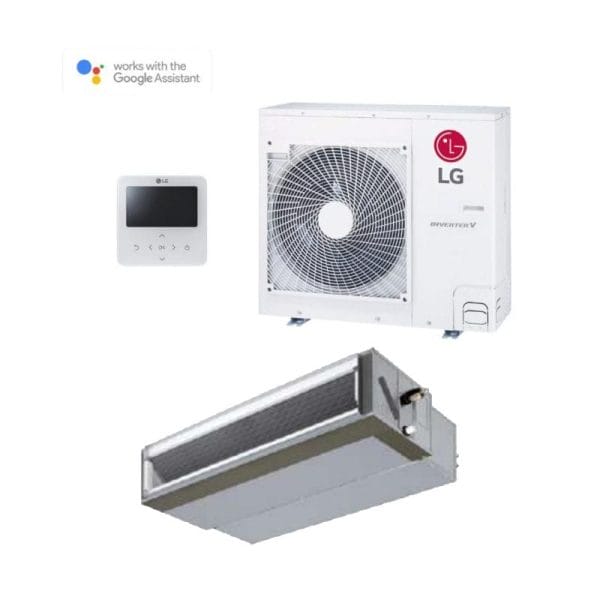

LG UHS85SPSET 8.80kW Splittable High Static Inverter Ducted Air Conditioner System 1 Phase

SKU: UHS85SPSET / UHN85M2S / UU85WR3 / PREMTB101

8.80kW Cooling | 10.00kW Heating
LG UHS85SPSET 8.80kW Splittable High Static Inverter Ducted Air Conditioner System 1 Phase
Indoor: UHN85M2S | Outdoor: UU85WR3 | System: UHS85SPSET
Wired Controller Included (PREMTB101)

5 Years Manufacturer’s Warranty

$3,139.00

Or own it from $120.73 weekly for 6 months*

Or pay in slices, no interest ever

9.5 x 15.88mm (3/8 x 5/8)> Ducted Air Conditioner Systems> LG Air Conditioning> LG Ducted Air Conditioner Systems> LG Splittable High Static Ducted Air Conditioner Systems> View All Ducted Systems

CATEGORY		INDOOR	UHN85M2S
CATEGORY		OUTDOOR	UU85WR3
COMBINATIONAL SPECIFICATION		UNIT
Cooling Capacity	Rated 2)	kW	8.5
Cooling Capacity	Min ~ Max	kW	2.55 ~ 9.3
Heating Capacity	Rated 2)	kW	10
Heating Capacity	Min ~ Max	kW	2.87 ~ 11
AEER			3.364
ACOP			3.667
Rated Current	Cooling	A	11.2
Rated Current	Heating	A	12
Full Load Amps		A	17
Air Flow Rate	Rated	L/s	583
Air Flow Rate	Min ~ Max	L/s	305 ~ 815
External Static Pressure	Min ~ Max	Pa	39 ~ 137
Indoor	Net (W x H x D)	mm	1,250 x 270 x 820
	Net Weight	kg	42
	Cooling ((SH)/H/M/L)	dB(A)	– / 42.0 / 40.0 / 38.0
	Net (W x H x D)	mm	950 x 834 x 330
Outdoor	Net Weight	kg	59
	Cooling / Heating	dB(A)	51 / 52
	(@ 1.5 m height)		51 / 52
Power Supply		Ø, Hz, V	1, 50 Hz 220-240 V
Compressor	Type	–	Twin Rotary
Compressor	Motor Type	–	BLDC
Heat Exchanger	Fin Type	–	Wide Louver Plus
Heat Exchanger	Corrosion Protection (Coating)	–	Black 2
Refrigerant	Type	–	R32
Refrigerant	Pre-charge Length	m	10
	Liquid	mm(inch)	Ø9.52 (3/8)
Pipe size	Gas	mm(inch)	Ø15.88 (5/8)
	Drain Pipe	mm(inch)	Ø32 (1-1/4) / 26 (1-1/32)
	(Drain Pump) OD/ID		Ø32 (1-1/4) / 26 (1-1/32)
Piping Length	IDU – ODU (Rated / Max / Min)	m	7.5 / 50 / 5.0
Maximum Height Difference	IDU – ODU (Max)	m	30
Air Vent	Return (Oval)	mm	2 x 400
Air Vent	Supply (W x H, Flange)	mm	1,148 x 245
Continuous Operation	Cooling	°C (DB)	-15 ~ 48
Continuous Operation	Heating	°C (WB)	-18 ~ 18
Wi-Fi Compatible 4)			Optional

The LG Splittable Ducted indoor unit has a built-in plenum which helps to reduce extra costs on installation as no customised plenum needs to be made by the installer. The LG Splittable unit is simple to handle in tight spaces as the unit can be easily dissembled and reassembled in the roof cavity
