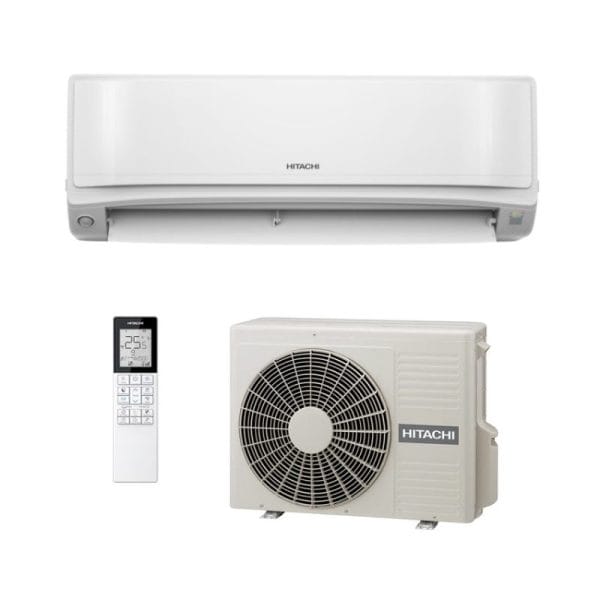

HITACHI RAK-VJ60PHAT | RAC-VJ60PHAT 6.0kW airHome 600 Wall Mounted Air Conditioner

SKU: RAK-VJ60PHAT / RAC-VJ60PHAT

6.0 kW Cooling | 7.0 kW Heating
HITACHI RAK-VJ60PHAT | RAC-VJ60PHAT 6.0kW airHome 600 Wall Mounted Air Conditioner
Indoor RAK-VJ60PHAT Outdoor RAC-VJ60PHAT
Intelligent Image Sensor | Frost wash | Built-in WIFI | Ioniser | Mould Guard | Idu & Odu Frostwash
6 Years Manufacturer’s Warranty



Model

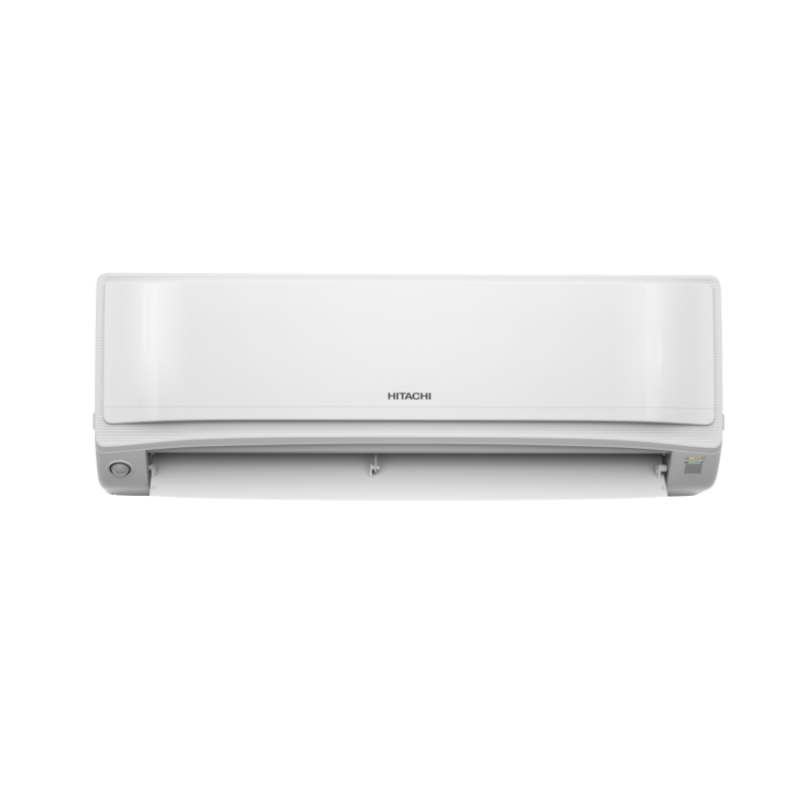

Indoor Unit RAK-VJ60PHAT

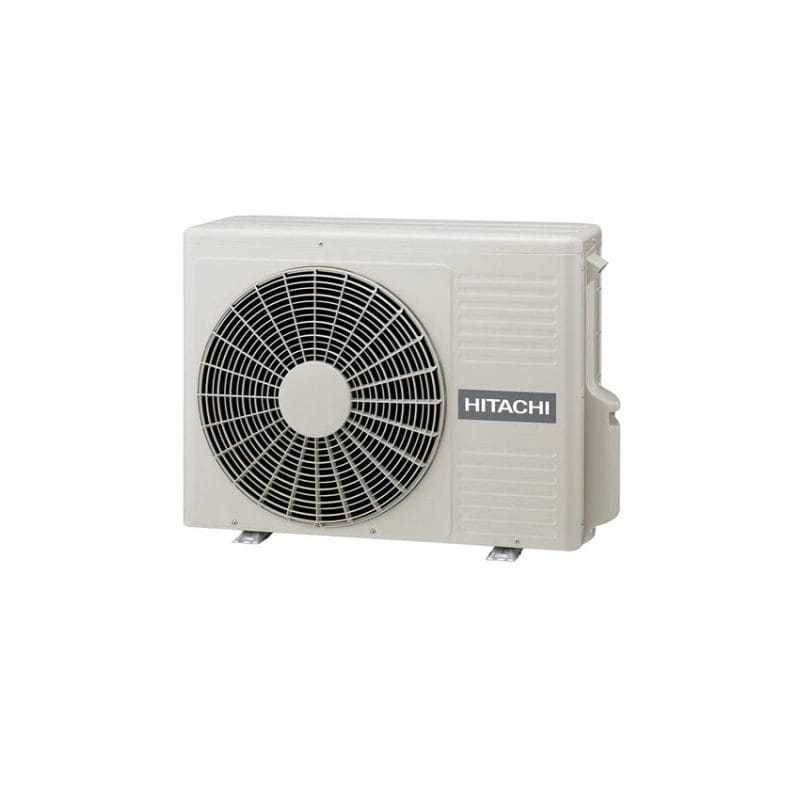

Outdoor Unit RAC-VJ60PHAT
Capacity & Rating
Rated Capacity
Cooling kW 6.0 (1.7 – 7.0)
Heating kW
7.0 (1.8 – 7.8)
(Min. – Max.)
Rated Cooling Power
kW
1.70 (0.50 ~ 3.05)
Input (Min. – Max.)
Rated Heating Power
kW
1.80 (0.50 ~ 3.05)
Input (Min. – Max.)
Dehumidification l / h 2.8
cooling
Hot Zone
heating
4.5
4.0
cooling
Mixed Zone
heating
4.0
Zone Energy Efficiency 3.0
Star Rating
cooling
Cold Zone
heating
4.5
2.0
AEER 3.52
ACOP 3.87
Technical Specifications
Power Supply V / Phase / Hz 220-240V / 1Ph / 50Hz
Rated Running Current
Amps
6.99 / 8.02
(cooling/heating)
Maximum Current Amps 13.50
Interconnecting Wire 3+EARTH
Power supply To outdoor unit
Operation Range Cooling °C
Heating °C
-10°C ~ 46°C
-15°C ~ 24°C
Compressor Type 2 Cylinder Rotary
Diameter of Pipes Liquid / Gas mm 6.35 / 12.70
Refrigerant
Type R32
Factory pre- m
30
charged length
Min. / Max. / Lift
m
3 / 30 / 20
Pipe Length
Dimension mm
1050 x 294 x 250
(WxHxD)
Weight kg 13
Indoor Unit
Fan Speeds Super High / High / Medium / Low / Quiet (+ Auto)
Air Flow (cooling) l / s 292/257/223/170/138
Air Flow (heating) l / s 298/262/227/175/140
Noise (cooling) dB(A) 47 / 45 / 42 / 36 / 32
Noise (heating) dB(A) 47 / 45 / 42 / 36 / 32
Dimensions mm
850 × 750 × 298
(WxHxD)
Outdoor Unit
Weight kg 47
Sound Power dB(A) 64
Sound Pressure dB(A)
52 / 54
(cool / heat)

airHome 600 Wall Mounted System

Integrating the latest smart technology, awaken your Hitachi air senses with the ultimate, automated in-home experience.

Scene Camera Intelligent Image Sensor Technology

Intelligent Image Sensor detects the number of people, location and activity in the room and adjusts cooling accordingly to ensure precise cooling and power saving.

Smart swing

The Smart Swing function adjusts direct or indirect airflow as desired to offer optimal comfort conditions.

Auto-off

When the Image Sensor detects a human absence in the room for a specific amount of time, the air conditioner automatically switches off.

This reduces the wastage of cooling and energy.

iSense Activity Sensor Technology

A sound sleep at night after a long day at work is what every person deserves.

Activity Sensor Technology helps you get that much-needed rest.
The lnfrared Sensor provides a comfortable sleeping environment by regulating the room temperature according to a person’s active body movements so you wake up fresh the next morning.

If the system detects no active movement, the air conditioner increases the temperature by 1°C per hour for 2 hours.

iClean Automatic Filter Cleaning Technology

iClean prevents dust accumulation and keeps the filter clean and like new again. It will also monitor the growth of any mould or bacteria that cause unpleasant odours, keeping you feeling fresh and comfortable all day long.

1. The automatic brush sweeps the dust by moving across the stainless steel-coated filter from its ‘home’ position to the dust collector box position.
2. The dust catcher, located on the top of the dust box, sweeps the dust into the dust box.
3. Once the cleaning is over, the brush moves back from the dust collector box to its home position.
4. The auto-cleaning brush moves twice over the dust catcher to increase the dust transfer capacity. Thus, the auto filter cleaning ensures that there is no dust left on the filter. And so, the air that meets the AC is free from dust and the air coming out of the AC is always clean and fresh.

Unlock the power of FrostWash

With FrostWash, a revolutionary new cleaning technology, you can depend on cleaner, fresher air all year round.

When no motion is detected, the system cools the heat exchanger down to -15°C forming a thin layer of frost from the moisture within the air. While the frost is being formed, it lifts dust particles, mould and bacteria off the heat exchanger and traps it.

Once an adequate layer of frost has been formed, the system then melts the ice, flushing away the trapped dust particles, mould and bacteria hygienically through the drain pan.

The unit then thoroughly dries the surfaces inside the unit before resuming normal operation. A clean heat exchanger not only keeps your unit operating at optimal efficiency but also keeps the air in your home fresher and cleaner.

In-Built Wifi Control for your Hitachi air conditioner

The airHome 600 wall-mounted system is our smartest air conditioner yet. With the airHome 600, you can enjoy the benefits of in-built airCloud Home wifi control, which gives you the power to control your Hitachi air conditioner from your smartphone.
You can operate it from home or abroad, adjusting the temperature before you even step foot in the house.

HITACHI RAK-VJ60PHAT | RAC-VJ60PHAT 6.0kW airHome 600 Wall Mounted Air Conditioner – Brochure

Description

6.0 kW Cooling
7.0 kW Heating

Built-in WIFI | Image Sensing | Ioniser | Mould Guard
