Model
|
Indoor Unit | RAK-VJ25PHAT | |
Outdoor Unit | RAC-VJ25PHAT | ||
Capacity & Rating
|
Rated Capacity
|
Cooling kW | 2.5 (1.0 – 3.5) |
Heating kW
|
3.2 (1.0 – 5.0)
|
||
(Min. – Max.) | |||
Rated Cooling Power |
kW
|
0.48 (0.25 – 1.22)
|
|
Input (Min. – Max.) | |||
Rated Heating Power |
kW
|
0.62 (0.25 – 1.20)
|
|
Input (Min. – Max.) | |||
Dehumidification | l / h | 1.4 | |
cooling
Hot Zone heating |
6.0 | ||
4.0 | |||
cooling
Mixed Zone heating |
5.5 | ||
Zone Energy Efficiency | 3.5 | ||
Star Rating |
cooling
Cold Zone heating |
5.5 | |
3.0 | |||
AEER | 5.10 | ||
ACOP | 5.12 | ||
Technical Specifications
|
Power Supply | V / Phase / Hz | 220-240V / 1Ph / 50Hz |
Rated Running Current |
Amps
|
2.67 / 2.75
|
|
(cooling/heating) | |||
Maximum Current | Amps | 5.50 | |
Interconnecting Wire | 3+EARTH | ||
Power supply To | outdoor unit | ||
Operation Range | Cooling °C Heating °C |
-10°C ~ 46°C -15°C ~ 24°C |
|
Compressor Type | Rotary | ||
Diameter of Pipes | Liquid / Gas mm | 6.35 / 9.52 | |
Refrigerant
|
Type | R32 | |
Factory pre- m |
20
|
||
charged length | |||
Min. / Max. / Lift |
m
|
3 / 20 / 15
|
|
Pipe Length | |||
Dimension mm |
780 × 280 × 227
|
||
(WxHxD) | |||
Weight kg | 8.6 | ||
Indoor Unit
|
Fan Speeds | Super High / High / Medium / Low / Quiet (+ Auto) | |
Air Flow (cooling) l / s | 167/148/97/67/65 | ||
Air Flow (heating) l / s | 202/195/133/100/77 | ||
Noise (cooling) dB(A) | 40/38/33/24/20 | ||
Noise (heating) dB(A) | 41/39/34/23/20 | ||
Dimensions mm |
792 × 600 × 299
|
||
(WxHxD) | |||
Outdoor Unit
|
Weight kg | 36.5 | |
Sound Power dB(A) | 60 | ||
Sound Pressure dB(A) |
46/48
|
||
(cool / heat) |
HITACHI RAK-VJ25PHAT | RAC-VJ25PHAT 2.5kW airHome 600 Wall Mounted Air Conditioner
2.5 kW Cooling | 3.5 kW Heating
HITACHI RAK-VJ25PHAT | RAC-VJ25PHAT airHome 600 2.5 kW Wall Mounted Air Conditioner

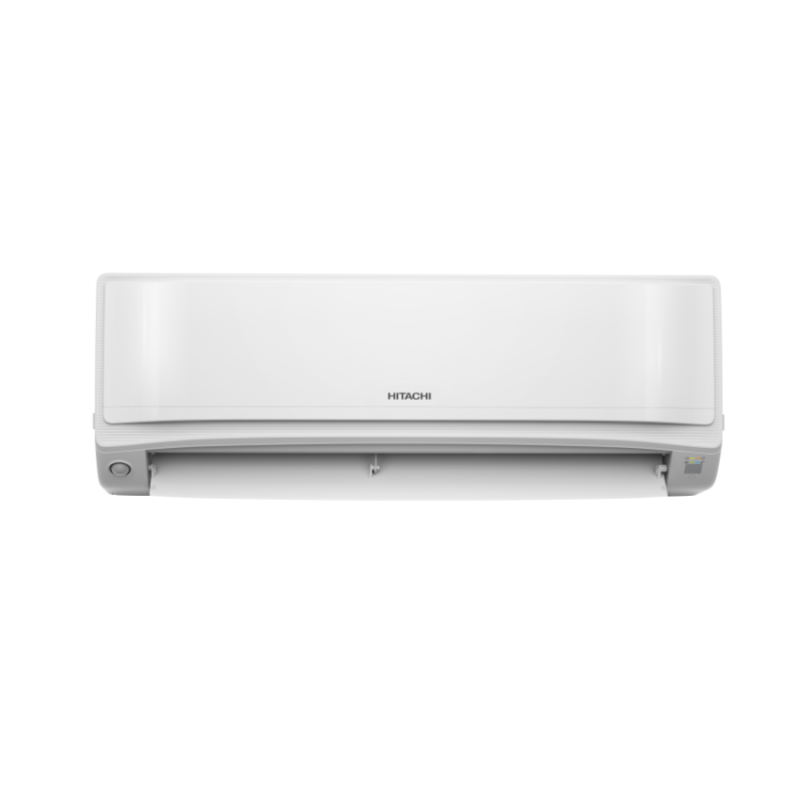

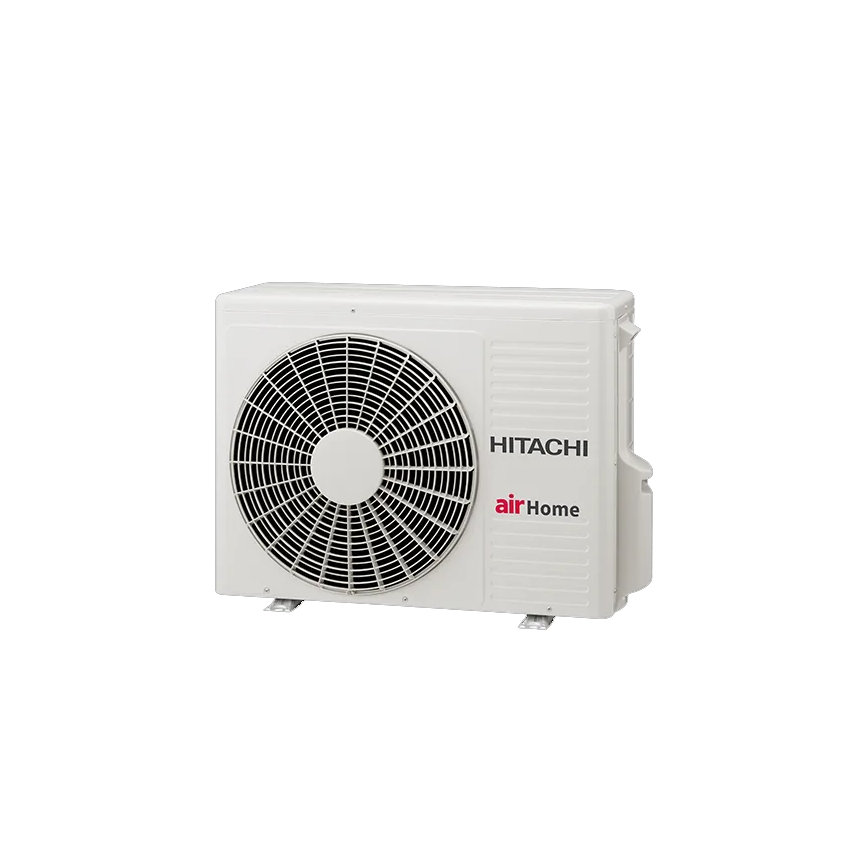

Indoor RAK-VJ25PHAT Outdoor RAC-VJ25PHAT
Intelligent Image Sensor | Frost wash | Built-in WIFI | Ioniser | Mould Guard | Idu & Odu Frostwash
6 Years Manufacturer’s Warranty
airHome 600 Wall Mounted System
Integrating the latest smart technology, awaken your Hitachi air senses with the ultimate, automated in-home experience.
Scene Camera Intelligent Image Sensor Technology
Intelligent Image Sensor detects the number of people, location and activity in the room and adjusts cooling accordingly to ensure precise cooling and power saving.
Smart swing
The Smart Swing function adjusts direct or indirect airflow as desired to offer optimal comfort conditions.
Auto-off
When the Image Sensor detects a human absence in the room for a specific amount of time, the air conditioner automatically switches off.
This reduces the wastage of cooling and energy.
iSense Activity Sensor Technology
A sound sleep at night after a long day at work is what every person deserves.
Activity Sensor Technology helps you get that much-needed rest.
The lnfrared Sensor provides a comfortable sleeping environment by regulating the room temperature according to a person’s active body movements so you wake up fresh the next morning.
If the system detects no active movement, the air conditioner increases the temperature by 1°C per hour for 2 hours.
iClean Automatic Filter Cleaning Technology
iClean prevents dust accumulation and keeps the filter clean and like new again. It will also monitor the growth of any mould or bacteria that cause unpleasant odours, keeping you feeling fresh and comfortable all day long.
1. The automatic brush sweeps the dust by moving across the stainless steel-coated filter from its ‘home’ position to the dust collector box position.
2. The dust catcher, located on the top of the dust box, sweeps the dust into the dust box.
3. Once the cleaning is over, the brush moves back from the dust collector box to its home position.
4. The auto-cleaning brush moves twice over the dust catcher to increase the dust transfer capacity. Thus, the auto filter cleaning ensures that there is no dust left on the filter. And so, the air that meets the AC is free from dust and the air coming out of the AC is always clean and fresh.
Unlock the power of FrostWash
With FrostWash, a revolutionary new cleaning technology, you can depend on cleaner, fresher air all year round.
When no motion is detected, the system cools the heat exchanger down to -15°C forming a thin layer of frost from the moisture within the air. While the frost is being formed, it lifts dust particles, mould and bacteria off the heat exchanger and traps it.
Once an adequate layer of frost has been formed, the system then melts the ice, flushing away the trapped dust particles, mould and bacteria hygienically through the drain pan.
The unit then thoroughly dries the surfaces inside the unit before resuming normal operation. A clean heat exchanger not only keeps your unit operating at optimal efficiency but also keeps the air in your home fresher and cleaner.
In-Built Wifi Control for your Hitachi air conditioner
The airHome 600 wall-mounted system is our smartest air conditioner yet. With the airHome 600, you can enjoy the benefits of in-built airCloud Home wifi control, which gives you the power to control your Hitachi air conditioner from your smartphone.
You can operate it from home or abroad, adjusting the temperature before you even step foot in the house.
Description
2.5 kW Cooling
3.5 kW Heating
Built-in WIFI | Image Sensing | Ioniser | Mould Guard
