Hitachi PPIH-5.0UFA1NQ | PAS-5.0UFASMQ1 12.5kW airCore700 High Static Ducted System Air Conditioner

SKU: PPIH-5.0UFA1NQ / PAS-5.0UFASMQ1

12.5 kW Cooling | 14.0 kW Heating | 3 Phase
Hitachi PPIH-5.0UFA1NQ | PAS-5.0UFASMQ1 12.5kW airCore700 High Static Ducted System Air Conditioner

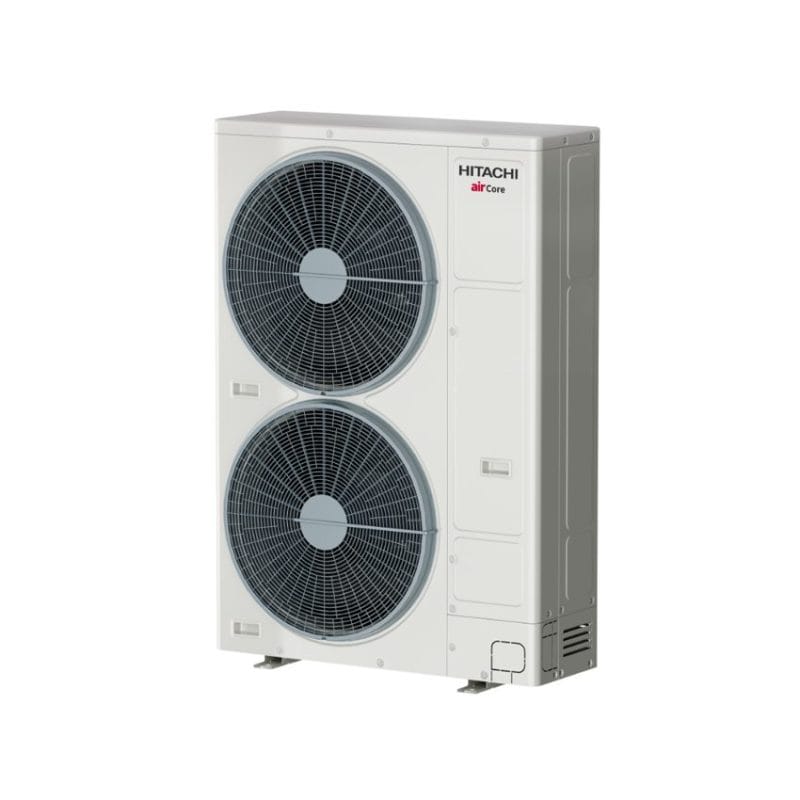

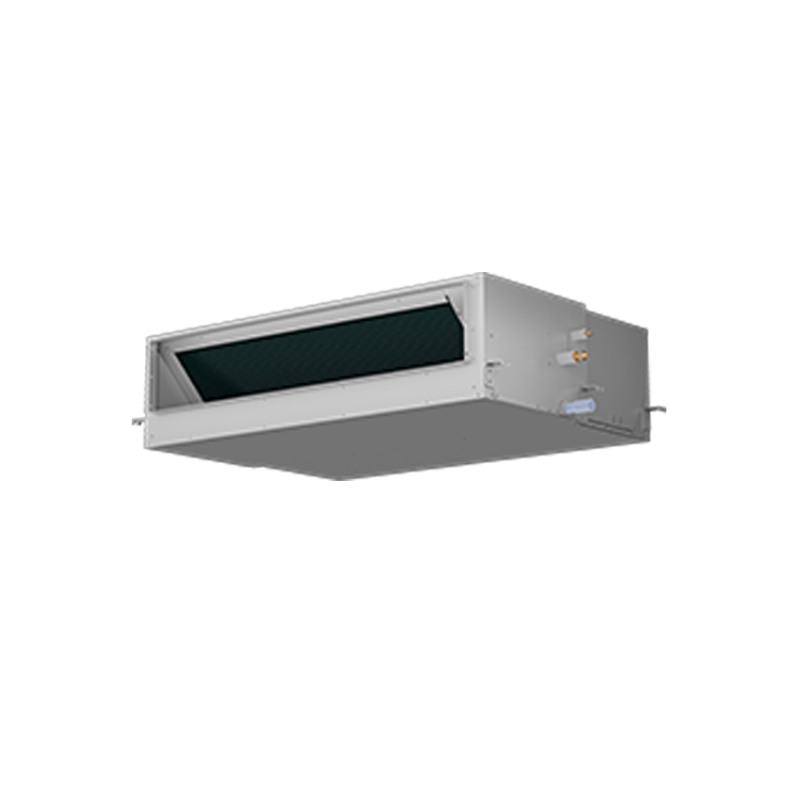

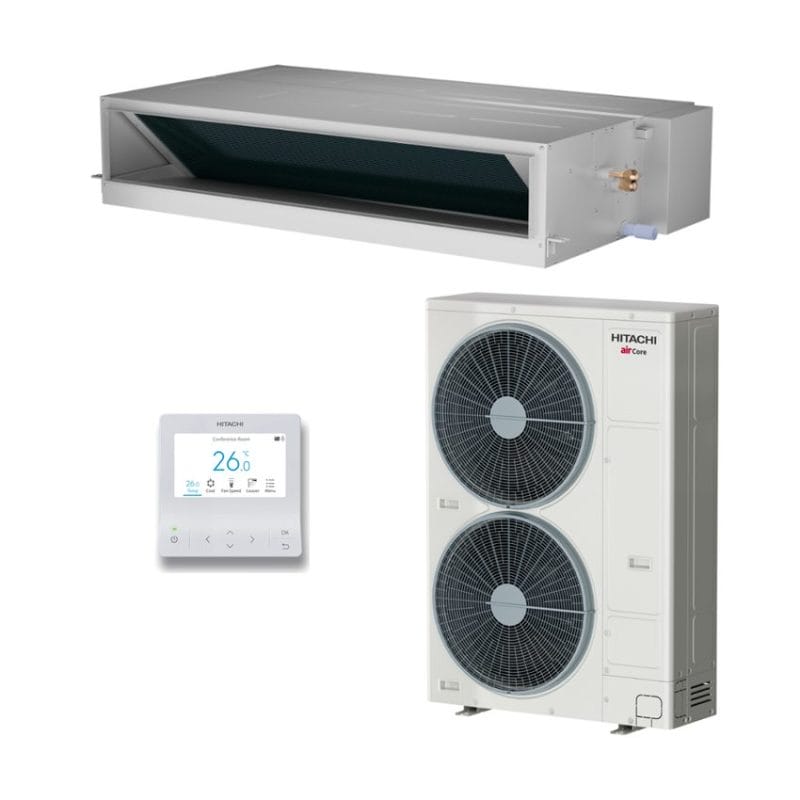

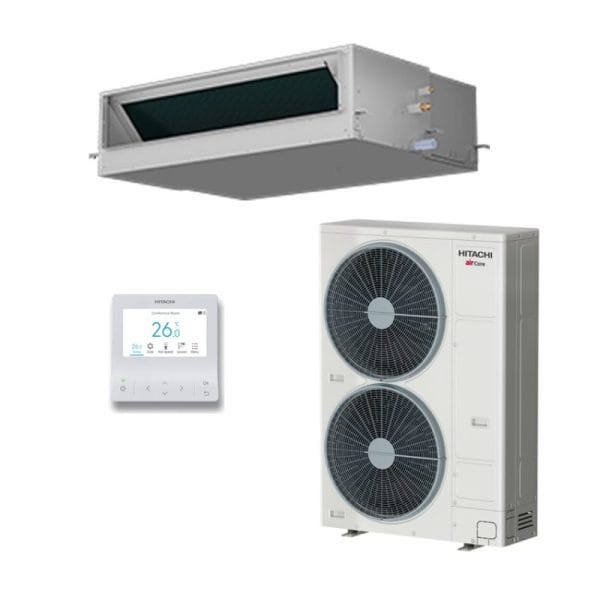

Indoor PPIH-5.0UFA1NQ Outdoor PAS-5.0UFASMQ1
Indoor Unit Frostwash | Night Quiet Operation | Power Saving Setting

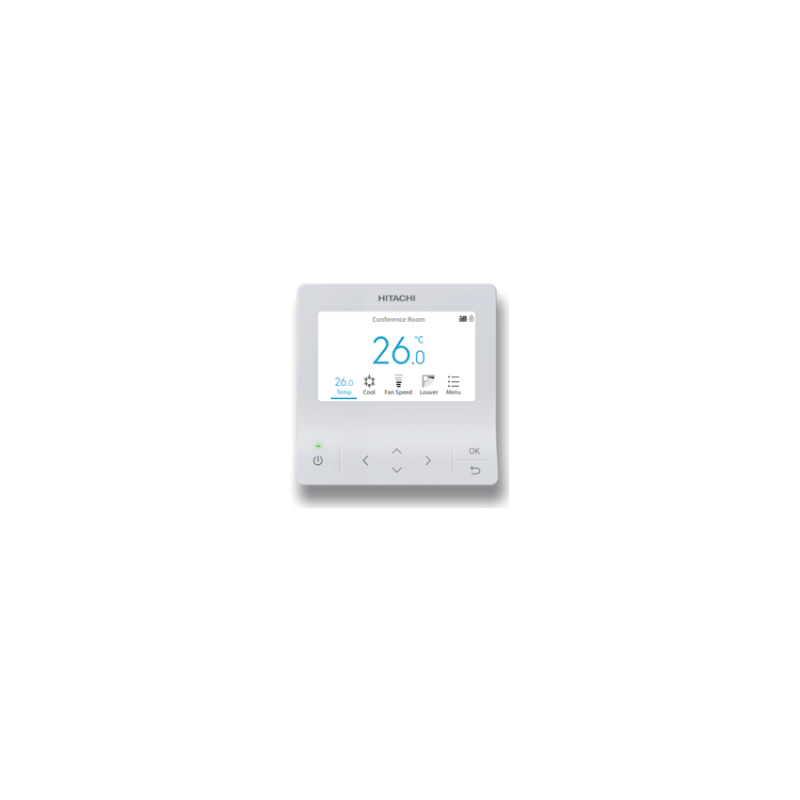

Optional Wired Controller | Optional Zone Controller
6 Years Manufacturer’s Warranty

Price range: $4,395.00 through $4,850.00

Select Controller

Clear

Quantity

Or own it from $169.04 weekly for 6 months*

Or pay in slices, no interest ever

IDU		PPIH-5.0UFA1NQ
ODU		PAS-5.0UFASMQ1
Power supply (Indoor)	V/Ph/Hz	220-240~,50
Power supply (Outdoor)	V/Ph/Hz	380-415 3N~,50
Cooling	Rated Capacity kW	12.5
Cooling	Capacity Range[Min~Max] kW	4.0~14.2
Heating	Rated Capacity kW	14
Heating	Capacity Range[Min~Max] kW	4.0~16.2
AEER	Cooling	3.72
ACOP	Heating	4.25
TCSPF(Cooling) Residential	Hot	4.83
	Average	4.29
	Cold	4.34
HSPF(Heating) Residential	Hot	4.83
	Average	4.24
	Cold	3.57
Indoor Unit	External Static Pressure Range Pa	60~285
	Air Flow Range L/s	500~820
	Sound Pressure Level [Hi2/Hi1/Hi/Med/Lo/SLo] dB[A	50/48/45/43/41/38
	Sound Power Level dB[A]	63
	Dimension [W×H×D] mm	1300×350×890
	Supply Air Spigot [W×H] mm	1204×222
	Return Air Spigot [W×H] mm	1135×308
	Net/Gross Weight kg	79/88
Outdoor Unit	Sound Pressure Level-Cooling dB[A]	56
	Sound Pressure Level-Heating dB[A]	57
	Sound Pressure Level-Night dB[A	54
	Dimension [W×H×D] mm	950×1380×320
	Net/Gross Weight kg	98.5/109.0
Refrigerant type	Type	R32
Refrigerant type	Charge kg	3.1
Refrigerant pipe	Liquid side/Gas side mm	Φ9.52/Φ15.88
	Max. pipe length m	75
	Max. Height difference m	30
	Add Refrigerant Amount g/m	35
	Chargeless m	30
Guaranteed Temperature Operation Range	Cooling °C (db)	-5~52
Guaranteed Temperature Operation Range	Heating °C (wb) –	-15~15.5

airCore700 Light Commercial Inverter AC System (Single)
The airCore700 stands as Hitachi’s flagship light commercial split system range. It delivers outstanding cooling and heating performance, showcasing a wide capacity range and eﬀicient operation in diverse ambient temperatures, while guaranteeing uncompromised comfort. Utilising R32 refrigerant, airCore700 units have a lower global warming potential compared to R410A refrigerant products.

Hitachi PPIH-5.0UFA1NQ 12.5kW R32 airCore 700 High ESP Ducted Air Conditioner System 1 Phase – Brochure

Description

12.5 kW Cooling
14.0 kW Heating

Night Quiet Operation | Power Saving Setting
