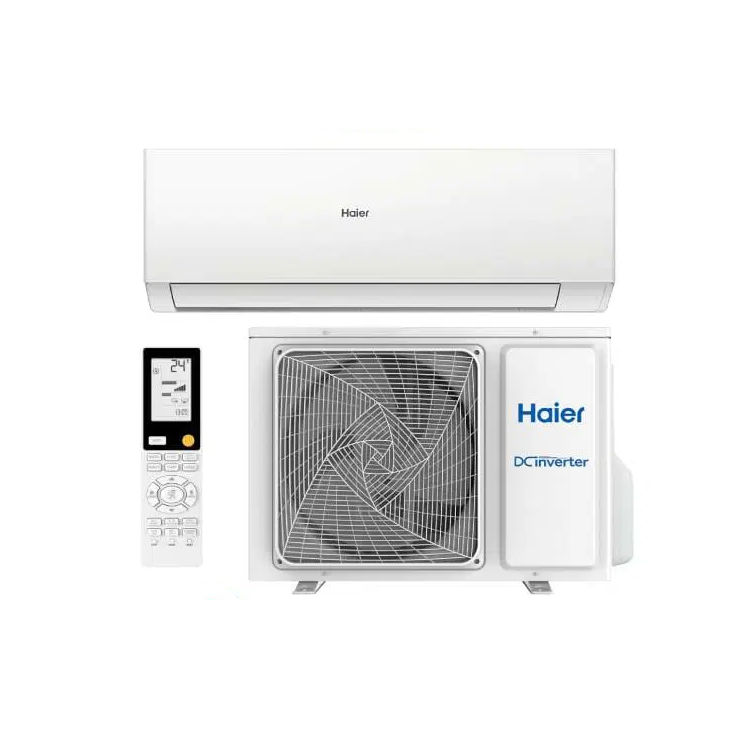

Haier Quartz AS71QEEHRA-SET 7.1kW Inverter Split System Air Conditioner

SKU: AS71QEEHRA-SET (AS71QEEHRA / 1U71WAEFRA)

7.1 kW Cooling | 8.0 kW Heating
Haier Quartz AS71QEEHRA-SET 7.1kW Reverse Cycle Inverter Split System Air Conditioner
Indoor AS71QEEHRA | 1U71WAEFRA
UVCPro ‐ UVC sterilisation | Built in Smart HQ Wifi | Intuitive control | Great energy efficiency | with Remote Control



$2,085.00

> > > > >

Capacity

Cooling capacity (kW) 7.1kW
Heating capacity (kW) 8kW

Consumption

COP 3.51 / 3.49
EER 3.51 / 3.49
HSPF-RES (Hot/Average/Cold) 4.935 / 4.242 / 3.635
Star-Cool (Hot/Average/Cold) 5.5 / 4.5 / 5.0
Star-Heat (Hot/Average/Cold) 3.0 / 2.5 / 2.0
TCSPF-RES (Hot/Average/Cold) 7.036 / 6.138 / 6.646

Features

Blue fin coils
Built-in Wi-Fi smart control
Compressor type Rotary
Concealed LED display
DRED (Demand Response) ready
Google Home
Infrared remote control
Refrigerant factory charge 1.42kg
Standard controller YR-HJ

Installation

Indoor unit model AS71QEEHRA
Indoor unit weight 15.5kg
Liquid line 6.35mm
Maximum pipe run 25m
Outdoor unit model 1U71WAEFRA
Outdoor unit weight 44kg
Suction line 12.70mm

Performance

Airflow 310L/S
DC inverter
R32 Refrigerant
Sound power SWL (outdoor) 68dBA
Sound pressure SPL (indoor) 48 / 44 / 38 / 33dBA
Sound pressure SPL (outdoor) 54dBA
Working temperature cooling -10℃ ~ 46℃
Working temperature heating -15℃ ~ 24℃

Power requirements

Supply frequency 50Hz
Supply voltage 220-240V

Product dimensions

Indoor unit depth 240mm
Indoor unit height 345mm
Indoor unit width 1106mm
Outdoor unit depth 340mm
Outdoor unit height 705mm
Outdoor unit width 890mm

Warranty

Parts and labour 5 years

UV Protect sterilisation

UV Protect helps to deliver clean air to your room using Health mode, with built-in LED UV lights that kill airborne Staphylococcus aureus bacteria and the H3N2 virus at more than 91% effectiveness under specific test conditions.*

Self-cleaning technology

Your Quartz air conditioner will continue working efficiently to produce clean air, with a Self-clean function that flushes away dirt from the evaporator and reduces the growth of mould and bacteria. This process also cleans the outdoor unit, helping to clear salt and debris that can lead to corrosion.

Smart control

Use the SmartHQ™ app to turn on your air conditioner from anywhere to ensure the perfect temperature when you get home, or use your Wi-Fi enabled Quartz with Google Home or Amazon Alexa voice control.

Coanda Plus airflow

Engineered to send airflow further, an aerodynamic louvre design helps to circulate air evenly throughout your room for total comfort.

Easy installation and maintenance

Designed to help your installer get the job done fast, Quartz air conditioners come with simple positioning specifications. The control board and motor are also easily accessible for maintenance.

Sleep mode

Sleep mode supports your ideal sleeping environment, raising, lowering or maintaining the temperature throughout the night for maximum comfort.

Turbo mode

With the Turbo function, the motor and fan work at a higher frequency so you can enjoy a cool or warm room within a much shorter time.

Haier Quartz AS71QEEHRA-SET 7.1kW Reverse Cycle Split System Air Conditioner – Brochure

Description

7.1 kW Cooling
8.0 kW Heating

Built-in Wi-Fi | Free Shipping
