Model | LSQWRF65M/NaA-M | ||
Series Type | Inverter Air-Cooled Scroll Chiller | ||
Capacity | Cooling / Heating | kW | 65 / 70 |
Capacity Adjustment Range | 0, 10 ~ 100% | ||
EER/COP | w/w | 2.62 / 3.20 | |
Power Supply | V/Hz/Ph | 380-415 / 50 / 3 | |
Power Input | Cooling / Heating | kW | 24.8 / 21.9 |
Current Input | A | 38.4 / 34.6 | |
Type | Dry Expansion, Sheel + Tube | ||
Water Flow | L/S | 3.11 | |
Water Side Heat Exchanger | Pressure Drop | kPa | 60 |
Connection Pipe | DN50 | ||
Air Side Heat | Type | Aluminium Fin-Copper Tube | |
Fin Colour | Gold | ||
Fan Type & Qty | Axial-Flow x 2 | ||
Exchanger | Power Output | kW | 0.75 |
Running Current | A | 1.28 | |
Total Air Flow | m3/h | 2×1.2×104 | |
Name | LANDA | ||
Model + Qty | QXAS-H80zN345H x 2 | ||
Compressor | Crank Case | w | 2×4 |
Gree — Landa | Oil Type | FV50S | |
Oil Charge Volume | L | 1.8 | |
Displacement | rn3/h | 23.04 | |
Sound Pressure Levels | dB(A) | 68 | |
Defrosting Method | Automatic | ||
R410a Refrigerant Charge | kg | 7.8 x 2 | |
Throttling Method | EXV | ||
Dimensions (L X W X H) | mm | 2200 x 965 x 1675 | |
Weights and Measures | Net Weight | kg | 654 |
Operating Weight | kg | 719.4 | |
Water Side | |||
Nominal Operating Condition | Operating Range | ||
Inlet Water oC | Outlet Water oC | Differential oC, Inlet & Outlet | |
Cooling | 12 | 7 | 2.5 ~ 6 |
Heating | 40 | 45 | 2.5 ~ 6 |
Air Side | |||
Nominal Operating Condition | Operating Range | ||
Outdoor (DBOC) | Outdoor (DBO C) | ||
Cooling | 35 | -15 ~ 52 | |
Heating | 6 | -20 ~ 40 |

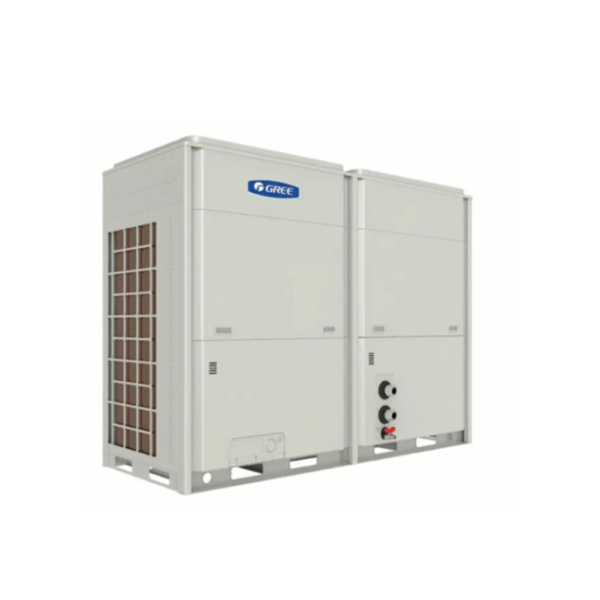

Gree LSQWRF65M/NaA-M 65.0kW Modular Air-Cooled Inverter Chiller
65.0kW Cooling
70.0kW Heating
Gree LSQWRF65M/NaA-M 65kW Modular Air-Cooled Scroll Chiller
The all new Modular A-Series Inverter Heat Pump Water Chillers are capable of performing cooling all year round with high energy efficiency. They do not require cooling towers and are quite applicable to water deficient areas.
These chillers can be widely used in new or retrofitted buildings of various sizes such as hotels, apartments, restaurants, office buildings, shopping malls, theatres, gyms, workshops and hospitals.
Gree have also created the new A-Series Inverter chillers so that they can chill a glycol mix to -5°C for use in cold stores, food processing areas, dairy processing, breweries and wineries.
Air cooled heat pumps for production of heating or cooling water with inverter scroll compressors, R410a, cooling capacity 32~65kW, heating capacity 36~70kW.
Comfort and Energy Efficiency
The inverter technology can quickly respond to load changes and lead to decreased water temperature fluctuations and better comfort. This also leads to better energy usage.
High Efficiency Shell and Tube Heat Exchanger
The Gree A-Series Inverter Chillers utilise high efficiency shell and tube heat exchangers. Internal baffles ensure the water mixes thoroughly in the heat exchanger to achieve a higher rate of heat transfer. The Gree heat exchangers provide advantages over other types of heat exchangers. The tube spacing virtually eliminates clogging due to foreign matter accumulating from poor water quality or scaling.
Compressor Operation Balance
The Gree A-Series compressor operation technology ensures that each compressor operates in turn. This reduces the number of stop start cycles on an individual compressor to maximise their lifespan.
Low Noise Fans
The high efficiency and low noise fan blades and motors as well as the optimized air passage can greatly lower the operation noise of the unit. The addition of a quiet mode also reduces night time noise for an ultra quite environment.
Gold Fin Coil
The new Gree A-Series Inverter Chiller features Gold
Fin coating on the air cooled coil. This offers greater resistance to corrosive elements. Gold Fin coils perform 20x better under salt spray testing than Blue Fin coils. Gold Fin is a hydrophilic coating which repels water. As
a result it improves the efficiency by accelerating the defrost process (when the unit is used for water heating).
Remote On/Off
The unit can be started or stopped by the On/Off key operation.
Twin Water Pumps (optional)
Two water pumps can work alternatively with equilibrium runtimes as to extend their service life and lower maintenance difficulty.
Advance Protection Functions
Gree A Series Inverter Chillers are equipped with an advanced microcomputer control system complete with powerful error diagnostics. Some of the main protection functions are:
- Compressor HP
- Compressor Overload
- Antifreeze Control
- High Discharge Temperature
- Temperature Sensor Failure
- Compressor LP
- Overflow control
- Water flow protection • Phase safety device
Flexible Capacity
With the Gree A Series Inverter Chillers you can combine different units to achieve your required heating or cooling load. You can combine up to 16units with a cooling capacity ranging from 32kW to 1040kW.
Gree XE73-25/G Microprocessor Controller
This control panel has been especially designed for the
A Series Inverter Chiller. It is capable of controlling and displaying all running parameters of the chiller. Gree have produced a standard controller for air conditioning and a low temp -5°C controller for low temperature processes. This controller can control up to 16 units and with Gree’s Free Master connection there is timely communication with all units and a fault on one will not affect the operation of the other units.
Gree Intelligent Management System
The long distance monitoring system allows users through a computer to remotely monitor up to 255
A series inverter chillers, including turning on /off the units, setting parameters, giving alarms for malfunctions, which provides an efficient tool for management of the intelligent air conditioning systems for modern buildings.
Environmentally Responsible
Gree A-Series Inverter Chillers use R410a. R410a has a zero ozone depletion potential and is non flammable and non toxic. The Gree A-Series Inverter Chillers come pre- charged so the potential for refrigerant leaks is reduced. Gree chillers also use less refrigerant than a standard VRF system of a similar size.
Description
65kW Cooling
70.0kW Heating
A Series | Inverter Chiller
