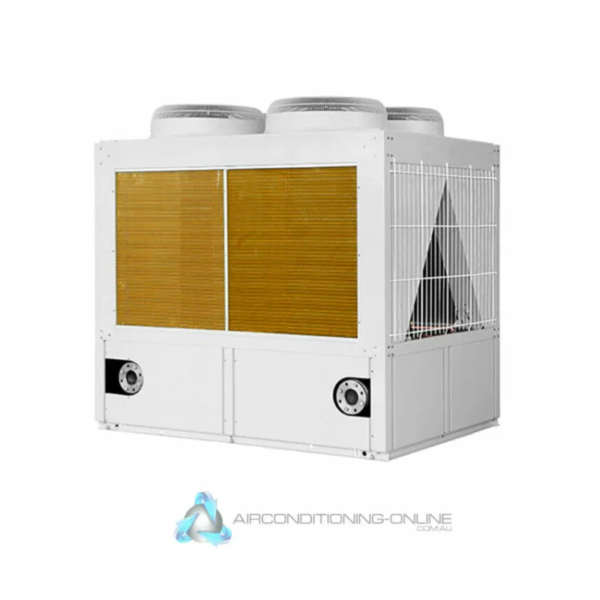

Gree LSQWRF160M|NaD-M 147.0kW Modular Air-Cooled Scroll Chiller

SKU: LSQWRF160M/NaD-M

147.0kW Cooling
160.0kW Heating
Gree LSQWRF160M/NaD-M 147.0kW Modular Air-Cooled Scroll Chiller

Gree D Series Air-cooled Scroll Chillers are suitable for a wide range of applications. With the additional advantage of being able to reverse cycle they can be used for cooling in summer and heating in winter. Gree chillers can be installed in new builds or retrofitted to existing buildings such as hotels, apartments, restaurants, office buildings, shopping malls, theatres, gyms, workshops, hospitals and any other place where cooling or heating is required.

Compare

Model	Heat Pump		LSQWRF160M /NaD-M
Capacity	Cooling / Heating	kW	147 / 160
Capacity Steps		%	0-25-50-75-100
EER/COP		w/w	2.74 / 3.04
Power Supply			380N415V / 3Ph/ 50hz
Power Input	Cooling / Heating	kW	51.4 / 54.6
Compressor	Type		Hermetic Scroll
	Starting Mode		Direct Starting
	Quantity		4
Water Side Heat Exchanger	Type		High Efficiency Shell and Tube Heat Exchanger
	Water Flow	L/S	7
	Pressure Drop	kPa	40
	Connection Pipe		DN80
Air Side Heat Exchanger		Type	High Efficiency Fin Tube type Heat Exchanger
	Fan Type & Qty		Axial x 4
	Total Air Flow	L/S	16,700
	Fan Power Input	kW	0.95 x 4
Sound Pressure Levels	dB(A)		73
Dimension	WXDXH	mm	2226 x 1650 x 2230h
Net / Operating Weight	kg		1340 / 1474
Refrigerant Charge R410a	kg		4x 7.4

High Efficiency Shell and Tube Heat Exchanger

The Gree D Series Chillers utilise high efficiency shell and tube heat exchangers. Internal baffles ensure the water mixes thoroughly in the heat exchanger to achieve a higher rate of heat transfer. Gree D series shell and tube heat exchangers provide advantages over other types of heat exchangers. The tube spacing virtually eliminates clogging due to foreign matter from poor water quality or scaling.

Compressor Operation Balance

The Gree D Series compressor operation balance technology ensures that each compressor operates in turn. This reduces the number of stop/start cycles on an individual compressor to maximise their lifespan.

Low Noise Fans

The Gree D Series Chillers come with high efficiency low noise fan blades designed and manufactured by Gree specifically for these units. These fan blades have been designed using Computational Fluid Dynamics simulation. The blades have been matched with motors and dynamic blade running tests conducted to ensure the motors and fan blades match perfectly. This method of design results in optimised blade shape and lower operating noise.

Free Master Module Design

Any unit can operate as the master when connected to the wired controller. This overcomes the problem where if a master unit were to fault, the entire system would then shut down. With Gree D Series water chillers if one unit faults the others will continue to run to ensure the cooling is not interrupted.

Gold Fin

The new Gree D Series Chillers feature Gold Fin coating on the air cooled coil. This offers greater resistance to corrosive elements. Gold fin coils perform 20x better under salt spray testing than Blue Fin Coils. Gold Fin is a hydrophobic coating which repels water. As a result it improves the efficiency by accelerating the defrost process (when the unit is used for water heating).

Advanced Protection Functions

The Gree D Series Chillers are equipped with an advanced microcomputer control system complete with powerful error diagnostics. Some of the main protection functions are:

Compressor HP
Compressor LP
Compressor overload

Flexible Capacity

Anti-freezing
Overheating
Water flow protection
Temperature sensor failure
High discharge temperature
Phase sequence

With the Gree D Series Chillers you can combine different capacity units to achieve your required cooling or heating duty. Combine up to 16 of the 65 and 80kW models and for the 130, 160 and 249 models combine up to 8 modules to achieve a massive ~1,992kW of cooling capacity. (2,200kW Heating) Gree CF61 Microprocessor Controller.

This control panel has been especially designed for the D Series large Capacity modular air cooled scroll chillers. It is capable of controlling and displaying all running parameters of the chiller.

Gree Intelligent Management System

Your Gree D Series Chillers are not only capable of long distance monitoring and management. They can also be integrated into a central Building Management System via ModBus communication protocol. This is achieved by using the BACnet(RS485) interface supplied by Gree.

Please note communication modules must be ordered separately as they do not come standard with the chiller.

Environmentally Friendly

Gree D Series chillers use environmentally friendly R410a which has zero ozone depletion potential. It also has low global warming potential and is non-toxic. By choosing Gree chillers you reduce the amount of refrigerant charge required when compared with VRF systems.

Click here to download the brochure of Gree LSQWRF160M/NaD-M 147kW Modular Air-Cooled Scroll Chiller

Remove the limitations placed on you by other systems. By having the refrigeration plant in one compact package, Gree Water chillers don’t restrict the length of your pipe runs like other air conditioning systems do. By using pumped water you can transfer heat over much greater distances. You also have the advantage of not having to worry about your compressors being starved of oil due to poor design or installation.

The safety of your building occupants is paramount. For applications where you have refrigerant based systems such as VRF. You must ensure that if there is a leak in the air conditioning system the concentration of refrigerant in the room does not exceed calculated limits. This is particularly of concern in buildings containing smaller rooms such as hotels and offices.

Save money by using less refrigerant! When compared to many VRF system installs (depending on pipe lengths) Gree Water Chillers use less refrigerant. The units come pre charged and as the refrigeration plant is fully contained in the unit no additional refrigerant is required.
