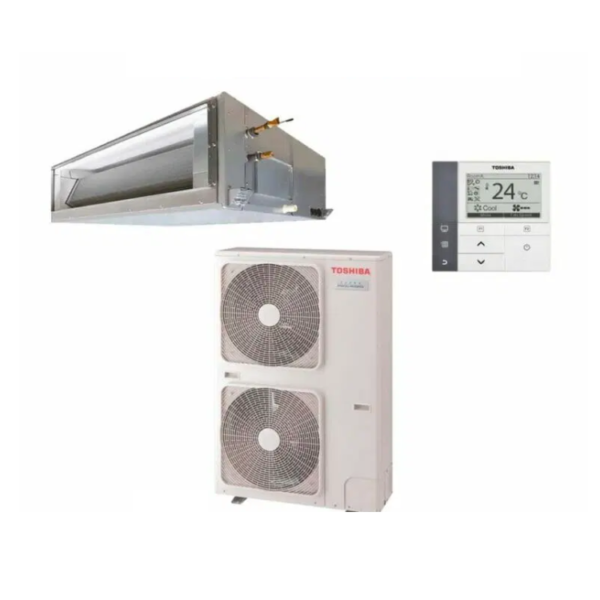

Fully Installed TOSHIBA RAV-GM1601DTP-A / RAV-GP1601ATP-A 14kW Super Digital Inverter High Static Ducted System 1 Phase

SKU: Fully Installed RAV-GM1601DTP-A / RAV-GP1601ATP-A | RBC-AMS55E-ES-1

Fully Installed TOSHIBA RAV-GM1601DTP-A / RAV-GP1601ATP-A 14kW Super Digital Inverter High Static Ducted System 1 Phase

  • 9 outlets and 2 zones
  • Based on Single Storey dwelling
  • Installed by License and Arctick Certified Installers
  • Outdoor unit to be placed on Concrete slab | PVC Slab | PVC Mounting Blocks.
  • Weatherproof isolator placed at outdoor.
  • Use of PVC or Colourbond Ducts.
  • Includes electrical circuit up to 15 metres.
  • 5 years full manufacturer warranty on Parts and Labour.
  • Sydney, Central Coast, and Newcastle Only
    *T and C Applies

Indoor Model RAV-GM1601DTP-A
Outdoor Model RAV-GP1601ATP-A
Cooling Capacity (Range) kW 14.0 [2.6 – 16.0]
EER 3.31
Heating Capacity (Range) kW 16.0 [2.4 – 19.0]
COP 3.90
Maximum Operating Current A 29.00
Air flow (H / M / L) l/s 972 / 902 / 597
External Static Pa 50 – 270
Dimensions – Indoor (H x W x D) mm 298 x 1400 x 750
Dimensions – Outdoor (Hx W x D) mm 1340 x 900 x 320
Weight – Indoor / Outdoor kg 42 / 102
Sound Pressure Level Indoor / Outdoor dB(A) 50 / 58
Operating Range Cooling °C db -15 to 52
Operating Range Heating °C db -20 to 24
Pipe Sizes (Liquid / Gas) mm 9.52 / 15.88
Maximum Pipe Length / Lift m 75 / 30
Maximum Pre-charged Length m 30
Power Supply 1ph/220-240V/50H

Description

14 kW Cooling
16 kW Heating
Includes Weekly Timer Wired Controller
