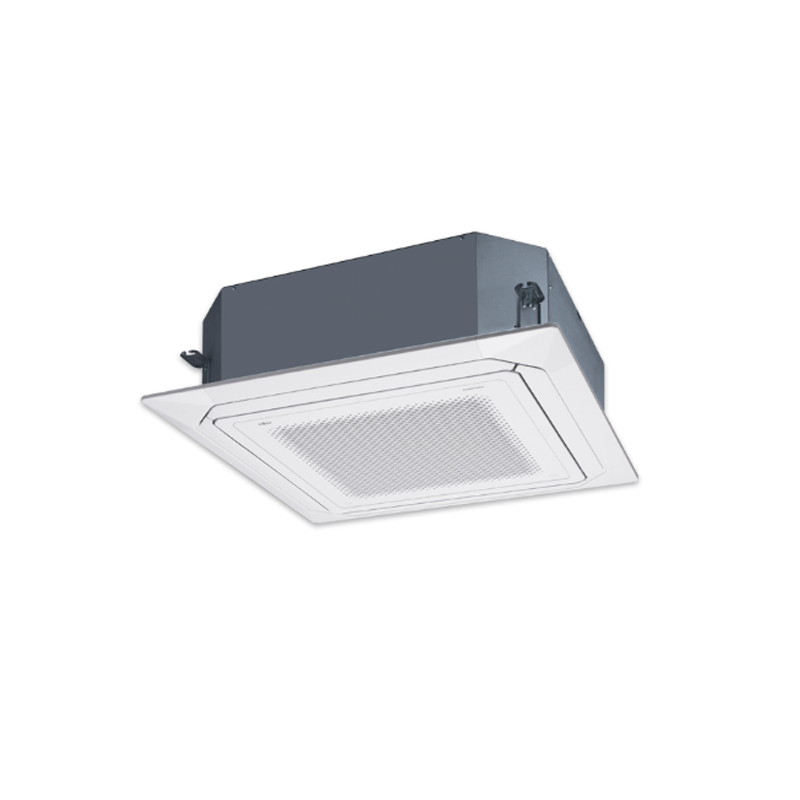

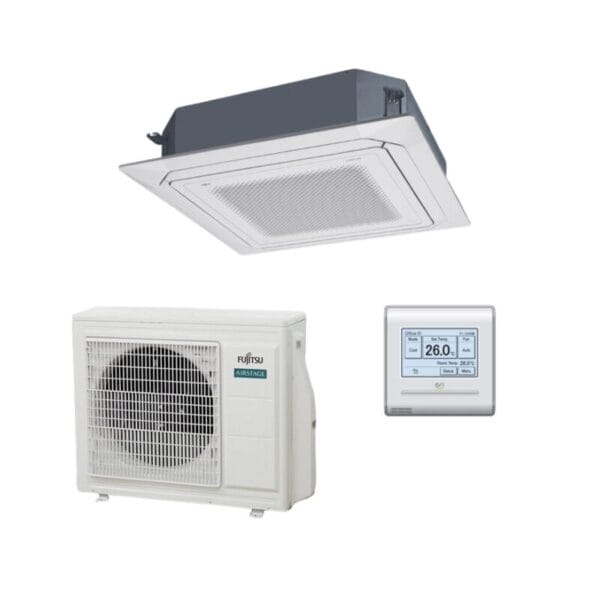

Fujitsu SET-AUTH24KRTA-T5 7.10kW Circular Flow Cassette Air Conditioner
7.1 kW Cooling | 8.0 kW Heating | 1 Phase
Fujitsu SET-AUTH24KRTA-T5 7.10kW Circular Flow Cassette Air Conditioner

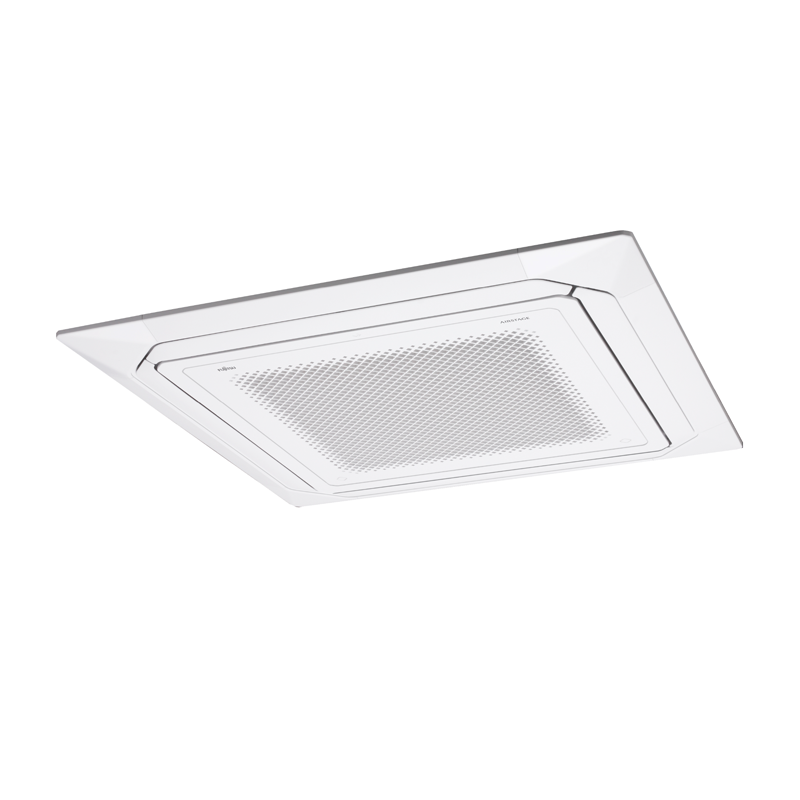

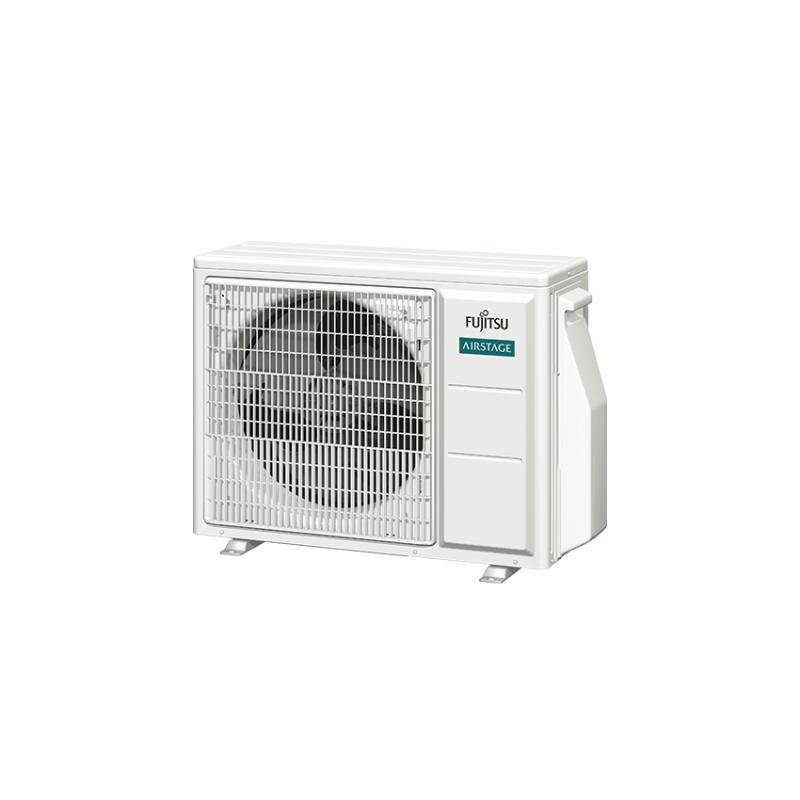

Indoor AUTH24KRTA Outdoor AOTH24KBTA Grill UTG-UKTB-W

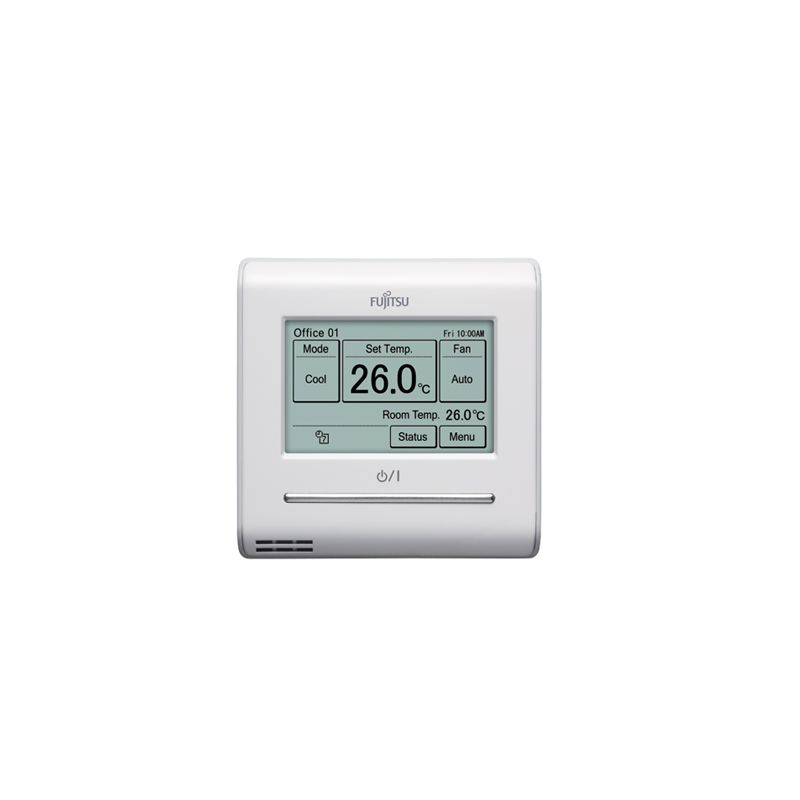

Wired Controller | Grill | Washable Panel | Automatic Air Flow Adjustment | Automatic Fan Speed
- Blue Fin Heat Exchanger
- Economy Mode
5 Years Manufacturer’s Warranty
| Indoor unit | AUTH24KRTA |
| Outdoor unit | AOTH24KBTA |
| Operation Type | Reverse Cycle |
| Power Source V/Ph/Hz | 230 / 1 / 50 |
| Cooling Capacity kW (Rated (Min – Max)) | 7.10 (1.8 – 8.1) |
| Heating Capacity kW (Rated (Min – Max)) | 8.00 (2 – 9.1) |
| Input Power Cooling kW (Rated (Max)) | 2.15 (2.73) |
| Input Power Heating kW (Rated (Max)) | 2.1 (2.59) |
| EER Cooling kW/kW | 3.3 |
| COP Heating kW/kW | 3.81 |
| Star Rating Cooling (0-10) (Hot / Average / Cold) | 3 / 3 / 3 |
| Star Rating Heating (0-10) (Hot / Average / Cold) | 3.5 / 2.5 / 2 |
| Total Cooling Seasonal Performance Factor Residential kW (Hot / Average / Cold) | 4.995 / 4.697 / 4.992 |
| Heating Seasonal Performance Factor Residential kW (Hot / Average / Cold) | 5.398 / 5.615 / 6.087 |
| Total Cooling Seasonal Performance Factor Commercial kW (Hot / Average / Cold) | 5.398 / 5.615 / 6.087 |
| Heating Seasonal Performance Factor Commercial kW (Hot / Average / Cold) | 5.237 / 4.747 / 4.131 |
| Running Current amps (Cooling / Heating) | 9.4 / 9.2 |
| Moisture Removal l/hr | 3.1 |
| Indoor Sound Pressure Cooling dBA (High / Quiet) | 35 / 30 |
| Indoor Sound Pressure Heating dBA (High / Quiet) | 35 / 30 |
| Outdoor Sound Pressure dBA (Cooling / Heating) | 48 / 50 |
| Outdoor Sound Power dBA | 68 |
| Air Circulation (Indoor – High Fan) Cooling l/sec | 300 |
| Air Circulation (Indoor – High Fan) Heating l/sec | 300 |
| Indoor Unit Dimensions mm (Height x Width x Depth) | 246 x 840 x 840 |
| Indoor Unit Weight kg | 24.00 |
| Outdoor Unit Dimensions mm (Height x Width x Depth) | 716 x 820 x 315 |
| Outdoor Unit Weight kg | 42.00 |
| Grill Weight kg | 6.00 |
| Piping Connects mm Ø (Liquid / Gas) | 6.35 / 12.7 |
| Pipe Length m (Max (Precharged)) | 30 (20) |
| Max Height Difference m | 25 |
| Operation Range Cooling °CDB (Min to Max) | -10 to 50 |
| Operation Range Heating °CDB (Min to Max) | -15 to 24 |
| Refrigerant Type | R32 |
| Refrigerant Amount g | 1,250 |
Key features
Features a seamless airflow design that allows air to be directed to every corner of the room.
- Auto Restart
Should there be a temporary loss of power, the unit will automatically restart itself in the same operating mode, once the power is restored. - Auto Changeover The unit automatically switches between operating modes based on the temperature setting and room temperature.
- Automatic Air Flow Adjustment The micro-processor automatically adjusts the air flow to follow changes in room temperature.
- Automatic Louvre The position of the louvres is set automatically to match the operating mode. It is also possible to adjust the louvres using the remote control.
- Blue Fin Heat Exchanger Corrosion-resistance of the heat exchanger in coastal areas has been improved by blue fin treatment of the outdoor unit heat exchanger.
- Circular Flow Distribution Creates a consistent and even temperature via multi-directional 360˚ airflow functionality.
- Demand Response This product is designed to be compatible with Air Conditioning Demand Response program. When your electricity supplier activates one of the three modes the air conditioner switches over to the appropriate operation.
- Economy Mode Limits the maximum operation current, and performs operation with the power consumption suppressed.
- Filter Sign Select appropriate intervals for displaying the filter sign on the indoor unit according to the estimated amount of dust in the air of the room.
- On-Off Timer ON-OFF timer can be set to operate once every 24 hours.
- Program Timer This timer allows selection of one of four options. ON, OFF, ON ––> OFF, or OFF ––> ON.
- Sleep Timer The micro-processor gradually changes the room temperature, allowing you to sleep comfortably at night.
- Washable Panel Dust that accumulates on the air conditioner can be easily cleaned with a damp cloth.
- Weekly Timer Different ON-OFF times can be set for up to 7 days.
- 10°C Heat Operation The room temperature can be set to go no lower than 10°C, thus ensuring that the room does not get too cold when not occupied.
$4,390.00 Bundle Price for Selected items
Description
7.1kW Cooling
8.0kW Heating
Circular Flow | Economy Mode | Blue Fin Heat Exchanger | 1 Phase
