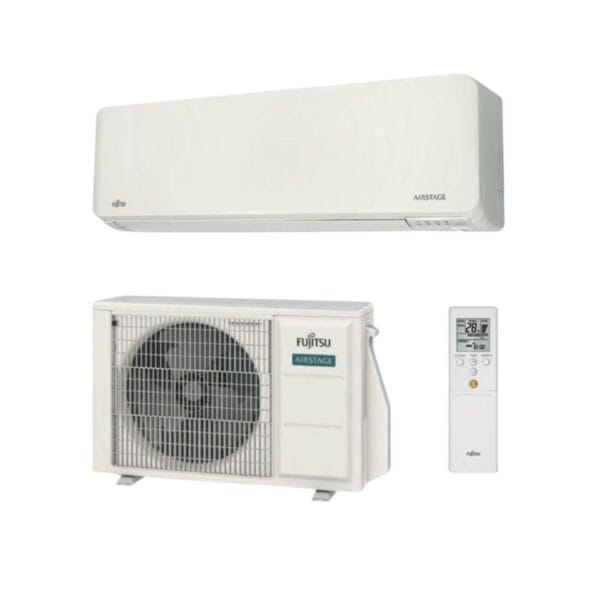

FUJITSU SET-ASTG09KMTC 2.5kW Lifestyle Inverter Wall Split System Air Conditioner

SKU: SET-ASTG09KMTC / AOTG09KMTC

2.5kW Cooling | 3.2kW Heating
Fujitsu ASTG09KMTC Lifestyle Range Inverter Wall Split System Air Conditioner
Includes Indoor ASTG09KMTC | Outdoor AOTG09KMTC
Wireless Remote



$985.00

> > > > > > > >
Indoor Unit ASTG09KMTC
Outdoor Unit AOTG09KMTC
Operation Type Reverse Cycle
 Power Source V/Ph/HZ 240 / 1 / 50
Cooling Heating
 Capacity kW 2.5 (0.9 – 3.6) 3.2 (0.9 – 5.3)
 Input Power kW 0.53 (0.25 – 1.04) 0.66 (0.25 – 1.61)
 EER/COP kW/kW 4.71 4.84
 Star Rating 5 5
 Running Current Cooling/Heating Amps 3.0 / 3.5
 Moisture Removal L/Hr 0.3
 Noise Level Indoor Sound Pressure dBA 40
Outdoor Sound Pressure dBA 46
Outdoor Sound Power dBA 61
 Air Circulation (Indoor – High Fan) I/sec 194
 Net Dimensions
HxWxD
Indoor Unit mm 270 x 834 x 222
kgs 10
Outdoor Unit mm 542 x 799 x 290
kgs 32
 Piping Connections (Liquid/Suction) mm Ø 6.35 / Ø 9.52
 Max. Pipe Length (Precharged Length) m 20 (15)
 Max height Difference m 15
 Operation Range °CDB Cooling: -10 to 46, Heating: -15 to 24
Refrigerant R32

Comfort Functions

  • 10º C Heat Operation The room temperature can be set to go no lower than 10°C, ensuring that the room does not get too cold when not occupied.
  • Up/Down Swing Louvre The up/down louvre automatically swings up and down. Right/Left Swing Louvre¹ The right/left louvre automatically swings in either direction.
  • Double Swing Automatic¹ Complex swing action of the louvres enables them to swing automatically in both horizontal and vertical directions.
  • Automatic Louvre The position of the louvres is set automatically to match the operating mode. It is also possible to adjust the louvres using the remote control.
  • Auto Shut Louvre The auto shut louvres close or open automatically when the unit stops or starts.
  • Automatic Air Flow Adjustment When auto mode is selected for the fan, the micro-processor adjusts the airflow to follow changes in room temperature.
  • Auto Restart Should there be temporary loss of power, the unit will automatically restart itself in the same operating mode, once the power is restored.
  • Auto-Changeover The unit automatically switches between heating and cooling modes based on the temperature setting and room temperature.
  • Powerful Mode Powerful mode will operate the indoor unit fan and outdoor unit compressor at maximum operation to quickly make the room conditioned and comfortable

Convenience Functions

  • Sleep Timer The micro-processor gradually changes the room temperature, allowing you to sleep comfortably at night.
  • Program Timer This timer allows selection of one of four options. ON, OFF, ON ––> OFF, or OFF ––> ON.
  • Filter Sign Set the interval frequency to be reminded to clean the air filter on your unit.
  • On-Off Timer ON-OFF timer can be set to operate once every 24 hours.
  • Weekly Timer Different ON-OFF timers can be set for up to 7 days.
  • Auto-Off Timer² The unit automatically stops operating when a fixed time has elapsed.



FUJITSU ASTG09KMTC 2.5kW Lifestyle Inverter Wall Split System Air Conditioner – Brochure

Description

2.5 kW Cooling
3.2 kW Heating

Human Sensor Inbuilt | Super Quiet Mode
