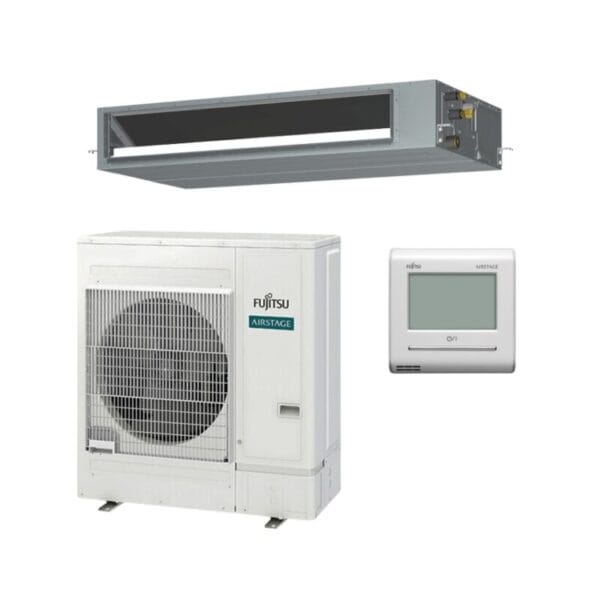

FUJITSU SET-ARTH45KMTAP 12.5kW Mid Static Ducted Slimline Air Conditioner

SKU: SET-ARTH45KMTAP / ARTH45KMTAP / AOTH45BTA

12.5 kW Cooling | 14.0 kW Heating | 1 Phase
FUJITSU SET-ARTH45KMTAP 12.5kW Mid Static Ducted Slimline Air Conditioner
Indoor ARTH45KMTAP | Outdoor AOTH45KBTA
Wired Controller | Blue Fin Heat Exchanger | Compact 240mm high chassis
5 Years Manufacturer’s Warranty

$4,095.00

Or own it from $157.50 weekly for 6 months*

Or pay in slices, no interest ever

9.5 x 15.88mm (3/8 x 5/8)> Ducted Air Conditioner Systems> Fujitsu Air Conditioning> Fujitsu Ducted Air Conditioners> Fujitsu Mid Static Slimline Ducted Air Conditioners> View All Ducted Systems

Indoor unit	ARTH45KMTAP
Outdoor unit	AOTH45KBTA
Operation Type	Reverse Cycle
Power Source V/Ph/Hz	240 / 1 / 50
Cooling Capacity kW (Rated (Min – Max))	12.50 (4 – 14)
Heating Capacity kW (Rated (Min – Max))	14.00 (4.2 – 16.5)
Input Power Cooling kW (Rated (Max))	4 (5.18)
Input Power Heating kW (Rated (Max))	4 (5.22)
EER Cooling kW/kW	3.13
COP Heating kW/kW	3.5
Star Rating Cooling (0-10) (Hot / Average / Cold)	3 / 2 / 1.5
Star Rating Heating (0-10) (Hot / Average / Cold)	2.5 / 2.5 / 3
Total Cooling Seasonal Performance Factor Residential kW (Hot / Average / Cold)	4.462 / 4.265 / 4.509
Heating Seasonal Performance Factor Residential kW (Hot / Average / Cold)	4.512 / 3.881 / 3.295
Total Cooling Seasonal Performance Factor Commercial kW (Hot / Average / Cold)	4.775 / 4.943 / 5.327
Heating Seasonal Performance Factor Commercial kW (Hot / Average / Cold)	4.522 / 4.129 / 3.641
Running Current amps (Cooling / Heating)	16.8 / 16.8
Moisture Removal l/hr	4.5
Indoor Sound Pressure Cooling dBA (High / Quiet)	40 / 29
Indoor Sound Pressure Heating dBA (High / Quiet)	40 / 29
Outdoor Sound Pressure dBA (Cooling / Heating)	55 / 57
Outdoor Sound Power dBA	71
Static Pressure Range PA (Min to Max)	50 to 150
Air Circulation (Indoor – High Fan) Cooling l/sec	600
Air Circulation (Indoor – High Fan) Heating l/sec	600
Indoor Unit Dimensions mm (Height x Width x Depth)	240 x 1400 x 700
Indoor Unit Weight kg	42.00
Outdoor Unit Dimensions mm (Height x Width x Depth)	988 x 940 x 320
Outdoor Unit Weight kg	67.00
Piping Connects mm Ø (Liquid / Gas)	9.52 / 15.88
Pipe Length m (Max (Precharged))	50 (30)
Max Height Difference m	30
Operation Range Cooling °CDB (Min to Max)	-10 to 50
Operation Range Heating °CDB (Min to Max)	-15 to 24
Refrigerant Type	R32
Refrigerant Amount g	2,700

Key features

Auto Changeover The unit automatically switches between operating modes based on the temperature setting and room temperature.
Auto Restart Should there be a temporary loss of power, the unit will automatically restart itself in the same operating mode, once the power is restored.
Blue Fin Heat Exchanger Corrosion-resistance of the heat exchanger in coastal areas has been improved by blue fin treatment of the outdoor unit heat exchanger.
Connectable Fresh Air Duct Allows introduction of fresh air to the occupied space.
Connectable Distributing Duct Systems are capable of attaching a field-supplied branch ducts distributing the airflow.
Economy Mode Limits the maximum operation current, and performs operation with the power consumption suppressed.
Fresh Air Intake Fresh air can be taken in by a fan which can be connected using an external control unit.

Filter Sign Select appropriate intervals for displaying the filter sign on the indoor unit according to the estimated amount of dust in the air of the room.

On-Off Timer ON-OFF timer can be set to operate once every 24 hours.

Program Timer This timer allows selection of one of four options. ON, OFF, ON ––> OFF, or OFF ––> ON.

Weekly Timer Different ON-OFF times can be set for up to 7 days.

All DC With All DC, electricity loss is decreased and power consumption reduced.
Automatic Air Flow Adjustment The micro-processor automatically adjusts the air flow to follow changes in room temperature.

FUJITSU SET-ARTH45KMTAP 12.5kW Mid Static Ducted Slimline Air Conditioner – Brochure

Ducted air conditioning is surely the ultimate in comfort. The Fujitsu ducted models offer quiet, efficient operation, are easy to maintain, and operated via a wall mounted LCD control that controls all functions of the system.
