Model Number
Operation Type |
AUTH12KVLA
Reverse Cycle |
Power Source V/Ph/Hz | 230 / 1 / 50 |
Capacity Class kW | 3.5 |
Running Current amps (Cooling / Heating) | 0.19 / 0.19 |
Indoor Sound Pressure Cooling dBA (High / Quiet) | 37 / 28 |
Indoor Sound Pressure Heating dBA (High / Quiet) | 37 / 29 |
Air Circulation (Indoor – High Fan) Cooling l/sec | 169 |
Air Circulation (Indoor – High Fan) Heating l/sec | 169 |
Indoor Unit Dimensions mm (Height x Width x Depth) | 245 x 570 x 570 |
Indoor Unit Weight kg | 15.00 |
Piping Connects mm Ø (Liquid / Gas) | 6.35 / 9.52 |
Operation Range Cooling °CDB (Min to Max) | 18 to 32 |
Operation Range Heating °CDB (Min to Max) | 16 to 30 |
Refrigerant Type | R32 |

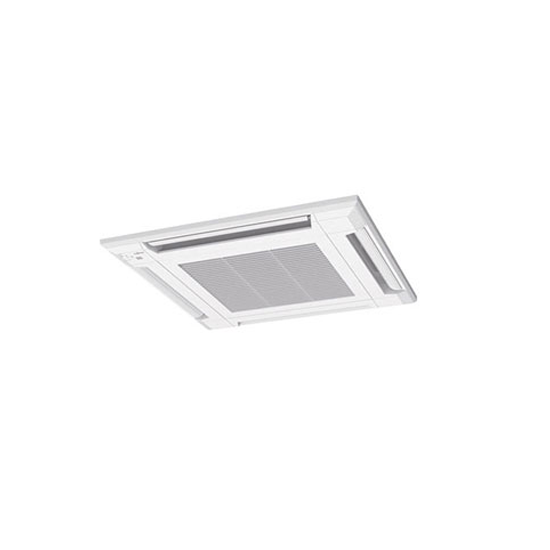

FUJITSU AUTH12KVLA 3.5kW Multi Type System Compact Cassette | indoor unit only
Fujitsu Indoor Multi unit.
Description
3.5 kW Cooling
4.2 kW Heating
Compact Cassette R32 Range
