FUJITSU SET-ASTH18KMTD 5.0kW Lifestyle Inverter Wall Split System Air Conditioner

SKU: ASTH18KMTD / AOTH18KMTD

5.0kW Cooling | 6.0kW Heating
Fujitsu Lifestyle Range ASTH18KMTD Inverter Split System Air Conditioner

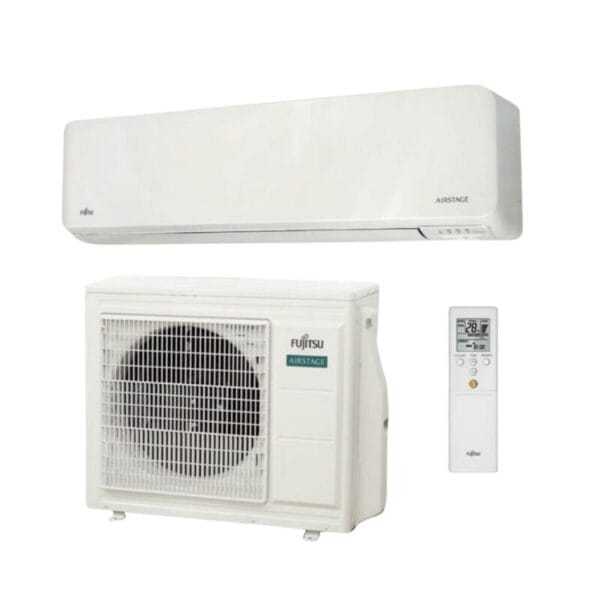

Includes Indoor ASTH18KMTD | Outdoor AOTH18KMTD
Wireless Remote



$1,515.00

> > > > > >
Indoor unit

Outdoor unit

ASTH18KMTD

AOTH18KMTD

Operation Type Reverse Cycle
Power Source V/Ph/Hz 230 / 1 / 50
Cooling Capacity kW (Rated (Min – Max)) 5.00 (1 – 6.5)
Heating Capacity kW (Rated (Min – Max)) 6.00 (1.05 – 8.7)
Input Power Cooling kW (Rated (Min – Max)) 1.16 (0.24 – 1.68)
Input Power Heating kW (Rated (Min – Max)) 1.28 (0.14 – 2.42)
EER Cooling kW/kW 4.31
COP Heating kW/kW 4.69
Star Rating Cooling (0-10) (Hot / Average / Cold) 4.5 / 4.5 / 4.5
Star Rating Heating (0-10) (Hot / Average / Cold) 3.0 / 2.5 / 2.5
Total Cooling Seasonal Performance Factor Residential kW (Hot / Average / Cold) 6.46 / 6.102 / 6.472
Heating Seasonal Performance Factor Residential kW (Hot / Average / Cold) 4.704 / 4.48 / 4.092
Total Cooling Seasonal Performance Factor Commercial kW (Hot / Average / Cold) 7.156 / 7.555 / 8.512
Heating Seasonal Performance Factor Commercial kW (Hot / Average / Cold) 4.684 / 4.533 / 4.216
Running Current amps (Cooling / Heating) 5.1 / 5.6
Moisture Removal l/hr 1.3
Indoor Sound Pressure Cooling dBA (High / Quiet) 46 / 29
Indoor Sound Pressure Heating dBA (High / Quiet) 46 / 29
Outdoor Sound Pressure dBA (Cooling / Heating) 47 / 49
Outdoor Sound Power dBA 59
Air Circulation (Indoor – High Fan) Cooling l/sec 283
Air Circulation (Indoor – High Fan) Heating l/sec 283
Indoor Unit Dimensions mm (Height x Width x Depth) 280 x 980 x 240
Indoor Unit Weight kg 12.50
Outdoor Unit Dimensions mm (Height x Width x Depth) 716 x 820 x 315
Outdoor Unit Weight kg 42.00
Piping Connects mm Ø (Liquid / Gas) 6.35 / 12.7
Pipe Length m (Max (Precharged)) 30 (15)
Max Height Difference m 25
Operation Range Cooling °CDB (Min to Max) -10 to 46
Operation Range Heating °CDB (Min to Max) -15 to 24
Refrigerant Type
Refrigerant Amount
R32
1,320



Comfort Functions

  • 10º C Heat Operation The room temperature can be set to go no lower than 10°C, ensuring that the room does not get too cold when not occupied.
  • Up/Down Swing Louvre The up/down louvre automatically swings up and down. Right/Left Swing Louvre¹ The right/left louvre automatically swings in either direction.
  • Double Swing Automatic¹ Complex swing action of the louvres enables them to swing automatically in both horizontal and vertical directions.
  • Automatic Louvre The position of the louvres is set automatically to match the operating mode. It is also possible to adjust the louvres using the remote control.
  • Auto Shut Louvre The auto shut louvres close or open automatically when the unit stops or starts.
  • Automatic Air Flow Adjustment When auto mode is selected for the fan, the micro-processor adjusts the airflow to follow changes in room temperature.
  • Auto Restart Should there be temporary loss of power, the unit will automatically restart itself in the same operating mode, once the power is restored.
  • Auto-Changeover The unit automatically switches between heating and cooling modes based on the temperature setting and room temperature.
  • Powerful Mode Powerful mode will operate the indoor unit fan and outdoor unit compressor at maximum operation to quickly make the room conditioned and comfortable

Convenience Functions

  • Sleep Timer The micro-processor gradually changes the room temperature, allowing you to sleep comfortably at night.
  • Program Timer This timer allows selection of one of four options. ON, OFF, ON ––> OFF, or OFF ––> ON.
  • Filter Sign Set the interval frequency to be reminded to clean the air filter on your unit.
  • On-Off Timer ON-OFF timer can be set to operate once every 24 hours.
  • Weekly Timer Different ON-OFF timers can be set for up to 7 days.
  • Auto-Off Timer² The unit automatically stops operating when a fixed time has elapsed.

FUJITSU ASTH18KMTD 5.0kW Lifestyle Inverter Wall Split System Air Conditioner – Brochure

Description

5.0 kW Cooling
6.0 kW Heating

Human Sensor Inbuilt | Super Quiet Mode
