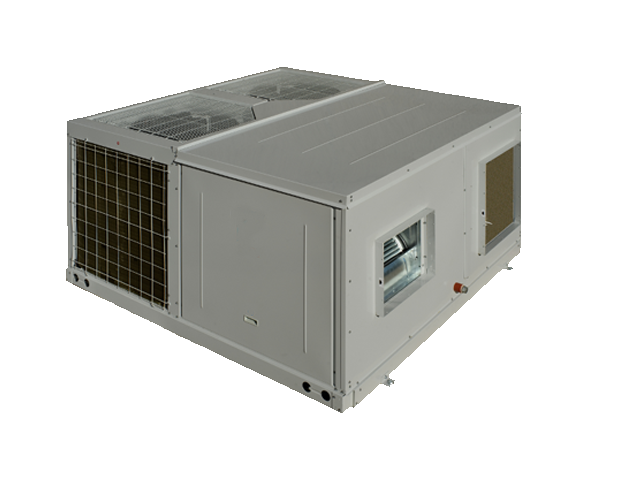

Daikin UAYQ210CY1A 63.69kW Outdoor Rooftop Packaged Unit

SKU: UAYQ210CY1A

Daikin’s range of Rooftop Packaged Units has been developed specifically to suit commercial applications and are designed for flexible and easy installation. Along with the light cream colour, the flat top and compact design gives an aesthetic and neat appearance when installed in the line of sight. The durable powder coated sheet metal and corrosion resistant fixings make this unit ideal for the harsh Australian climate.




> > Compare
Model UAYQ210CY1A
Rated Capacity (Cooling)          Net      kW 63.69
Rated Capacity (Heating)          Net      kW 63.95
Rated Power Input (Cooling)    Net       kW 20.53
Rated Power Input (Heating)    Net       kW 18.58
Rated EER (Cooling)                       kW/kW 3.1
Rated COP (Heating)                       kW/kW 3.44
Power Supply                                 V/Ph/Hz 380~415 / 3N~/50
Refrigerant Charge                             Kg 10.4+10.4
Refrigerant Type / Control R-410A / EEV
Evaporator        Air Flow Rate               l/s 3450
                       External Static Pressure Pa 206
                       Condensate Drain Size  mm 25.4
Condensor        Air Flow rate                   l/s 9534
                    Sound Pressure Level       dBA 70
                    Sound Power Level          dBA 90
Compressor Quantity 2
Dimensions             height                    mm 21302
                                width                    mm 2209
                                Depth                   mm 2670
Net Weight (without packaging)         kg 880



Base Beam
Fixed base beams provide a rigid foundation for the entire rooftop packaged unit. Designed for easy installation as well as exceptional performance, the base beam has integrated forklift slots and pre-drilled rigging holes.  It is also designed to allow mounting on a roof curb, with detailed guidelines for dimension of the roof curb requirements provided in the installation manual.

Flexible Air Supply
All Daikin Rooftop Package Units feature a belt driven supply air fan, with a variable pitch pulley to deliver a wide range of supply air volumes and external static pressures. Servicing of supply air fan motors, pulleys and belts can be all be carried out on site, minimizing downtime and simplifying routine and unplanned maintenance.

Convertable Return and Supply Air
Daikin Rooftop Package Units can be easily converted from horizontal to vertical (downward) supply and return air duct configuration by relocating the panels and supply air fan mounting.

Powder Coated Condesnsate Drain Pan
The sheet metal condensate drain pain is powder coated for corrosion resistance.

Return Air Filters
A 50mm filter slot is provided as standard in instances where a field supplied filter is required.

Energy Efficiency
Daikin’s UAYQ-C series Rooftop Packaged Units have been developed to provide air conditioning solutions that are energy efficient, simple to use and reliable, ensuring full compliance with MEPS requirements.

Extensive Controls Capability
Daikin Rooftop Packaged Units offer more than 27 functional and control capabilities, including:

  • Variable head pressure control for low ambient cooling
  • Electronic expansion valves for precise refrigerant control
  • Self diagnostic and error warning codes
  • Standard 7days programmable timer and LCD thermostat
  • Sequential compressor and load balancing operation
  • Simple BMS and third party interface
  • Ability to connect remote sensor with 25m cable
  • Simple auxiliary booster with 3 adjustable differential settings
  • Auto-changeover (heat/cool) functionality can be configured on the controller

Base Beam
Fixed base beams provide a rigid foundation for the entire rooftop packaged unit. Designed for easy installation as well as exceptional performance, the base beam has integrated forklift slots and pre-drilled rigging holes.  It is also designed to allow mounting on a roof curb, with detailed guidelines for dimension of the roof curb requirements provided in the installation manual.

Flexible Air Supply
All Daikin Rooftop Package Units feature a belt driven supply air fan, with a variable pitch pulley to deliver a wide range of supply air volumes and external static pressures. Servicing of supply air fan motors, pulleys and belts can be all be carried out on site, minimizing downtime and simplifying routine and unplanned maintenance.

Convertable Return and Supply Air
Daikin Rooftop Package Units can be easily converted from horizontal to vertical (downward) supply and return air duct configuration by relocating the panels and supply air fan mounting.

Powder Coated Condesnsate Drain Pan
The sheet metal condensate drain pain is powder coated for corrosion resistance.

Return Air Filters
A 50mm filter slot is provided as standard in instances where a field supplied filter is required.

Energy Efficiency
Daikin’s UAYQ-C series Rooftop Packaged Units have been developed to provide air conditioning solutions that are energy efficient, simple to use and reliable, ensuring full compliance with MEPS requirements.

Extensive Controls Capability
Daikin Rooftop Packaged Units offer more than 27 functional and control capabilities, including:

  • Variable head pressure control for low ambient cooling
  • Electronic expansion valves for precise refrigerant control
  • Self diagnostic and error warning codes
  • Standard 7days programmable timer and LCD thermostat
  • Sequential compressor and load balancing operation
  • Simple BMS and third party interface
  • Ability to connect remote sensor with 25m cable
  • Simple auxiliary booster with 3 adjustable differential settings
  • Auto-changeover (heat/cool) functionality can be configured on the controller

Description

63.69 kW Cooling
63.95 kW Heating

Corrosion resistant | R410A
