DAIKIN SKY AIR FAA100B-VC2Y 10.0kW Inverter Split System Air Conditioner | 3 Phase
DAIKIN SKY AIR FAA100B-VC2Y 10.0kW Inverter Wall Split Air Conditioner System | 3 Phase R32 Refrigerant

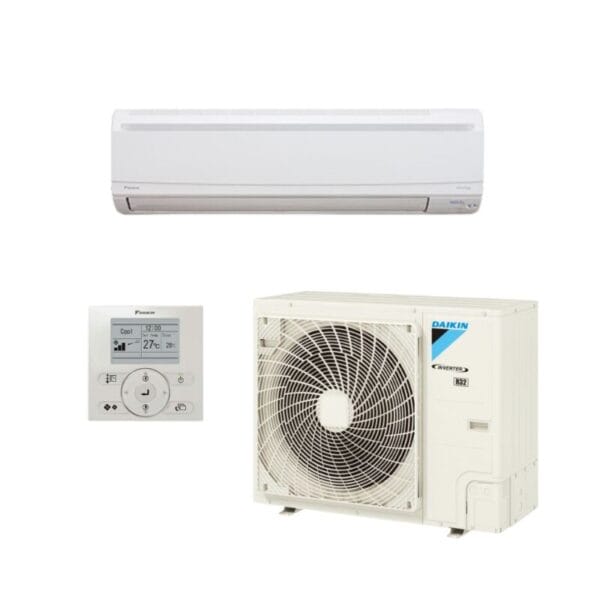

Includes Indoor FAA100BVMA | Outdoor RZAV100C2Y1
10.0kW Cooling | 11.2kW Heating
Wired Controller BRC1E63
|
Model Name
|
Indoor unit | FAA100BVMA | ||
| Outdoor unit | RZAV100C2Y1 | |||
| Power supply | 3 Phase, 380-415V, 50Hz | |||
| Cooling capacity1,3 Rated (Min. – Max.) | kW | 10.0 (5.0-11.2) |
||
| Heating capacity2,3 Rated (Min. – Max.) | kW | 11.2 (5.1-12.5) |
||
|
Power consumption
|
Cooling1 | kW | 3.11 | |
| Heating2 | kW | 3.48 | ||
| EER | Cooling | kW/kW | 3.22 | |
| COP | Heating | kW/kW | 3.22 | |
| AEER | Cooling | 3.17 | ||
| ACOP | Heating | 3.17 | ||
|
TCSPF (Cooling) Commercial / Residential
|
Hot | 5.03 / 4.63 | ||
| Average | 5.13 / 4.18 | |||
| Cold | 5.49 / 4.33 | |||
|
HSPF (Heating) Commercial / Residential
|
Hot | 4.66 / 4.64 | ||
| Average | 4.25 / 3.95 | |||
| Cold | 3.77 / 3.42 | |||
|
Indoor unit
|
Colour | Fresh White | ||
|
Airflow rate (H / M / L)
|
/s | 433 / 383 / 317 | ||
| m3/min | 26.0 / 23.0 / 19.0 | |||
| Sound pressure level4 (H / M / L) | dB(A) | 49.0 / 45.0 / 41.0 | ||
| Dimensions (HXWXD) | mm | 340X1,200X240 | ||
| Machine weight | kg | 17 | ||
|
Certified operation range
|
Cooling | °CWB | 14 to 25 | |
| Heating | °CDB | 15 to 27 | ||
| Outdoor | Colour | Ivory White | ||
|
unit
|
Compressor
|
Type | Hermetically sealed swing type | |
| Motor output | kW | 3.30 | ||
| Refrigerant charge (R-32) | kg | 3.75 (Charged for 30 m) |
||
|
Sound pressure level4
|
Cooling / Heating | dB(A) | 51 / 53 | |
| Night quiet mode | dB(A) | 47 | ||
| Sound power level | dB(A) | 70 | ||
| Dimensions (HXWXD) | mm | 1,430X940X320 | ||
| Machine weight | kg | 93 | ||
|
Certified operation range
|
Cooling | °CDB | -5 to 50 | |
| Heating | °CWB | -15 to 15.5 | ||
|
Piping connections
|
Liquid (Flare) | mm | o/ 9.5 | |
| Gas (Flare) | mm | o/ 15.9 | ||
|
Drain
|
Indoor unit | mm | VP13 (I.D. o/ 13XO.D. o/ 18) | |
| Outdoor unit | mm | o/ 26.0 (Hole) | ||
| Max. interunit piping length | m | 75 (Equivalent length 90) | ||
| Max. installation height difference | m | 30 | ||
| Heat insulation | Both liquid and gas piping | |||
Compact & Sophisticated Design
- Flaps neatly close When not in use.
- Fresh white colour.
Comfort
- Auto swing (up and down) and wide-angle louvers (left and right by hand) facilitate even room temperature.
- Wide-angle louvers (by hand) Soft material louver bends airflow over a wider area
- An air discharge modes ensure comfortable air distribution across the entire room
- Comfort even on the far side of the room
To carry air to the far side of long rooms, extra-high airflow adds 10% more fan speed the “high” setting. Air discharge strength is selected from the remote controller by the field
setting.
- Switchable fan speed: 3 steps and Auto – “Auto” is applicable when a wired remote controller is used.
- Programme “Dry” – Dehumidification is microprocessor controlled to prevent abrupt and uncomfortable changes in air temperature.
Design and Installation Flexibility
- 6-direction refrigerant piping offers greater installation flexibility
- Maintenance possible from the front of the unit
- Drain pump kit is available as option – Drain pump kit can be installed on either left and right side of the indoor unit.
Interlock control
As an energy saving feature, the air conditioner can be interlocked with the key card system. Using a 3rd-party building management system,
air conditioning and lighting can be interlocked.
DIII-NET communication standard
Connection to a centralised control system is available without need for an optional adaptor.
Easy Cleaning
- Removable and washable grille
- Flat panel, easy to wipe dust off
- Non-flocking flaps
Condensation does not easily form and dirt does not cling to non-flocking flaps. It is easy to clean
Description
10.0 kW Cooling
11.2 kW Heating
Includes BRC1E63 Controller | R32 Refrigerant
